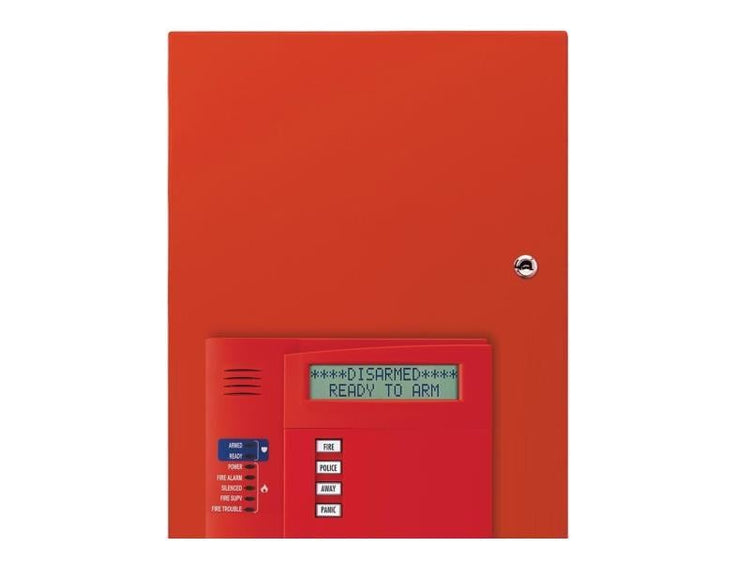

VISTA-32FBPT | Honeywell Commercial Partitioned Fire and Burglary Alarm Control Panel
- Regular price
- $1,099.00
- Sale price
- $1,099.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: VISTA-32FBPT
Description
The Honeywell VISTA-32FBPT is a commercial-grade fire and burglary alarm control panel designed for partitioned security management. It supports up to 32 zones using a combination of hardwired, wireless, and V-Plex® addressable devices, offering protection for both life and property in complex multi-area environments.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Security
|
| Part Number | VISTA-32FBPT |
| Subcategory | Security Controller |
| Voltage | 18 VAC input; 12 VDC backup |
| Battery Backup | 12 VDC, 12–34.4 AH gel type |
| Total Power Output | 2.3A @ 12 VDC |
| Notification Power |
1.7A max per bell circuit |
| Standby Time | 24 hours w/ 1A load using 34.4 AH battery |
| Zone Support | 8 hardwired zones (expandable to 32 with V-Plex), 32 wireless |
| User Codes | 75 user codes; 250 VISTAKEY cardholders |
| Event Memory | 512 events |
| Communicators | GSM, i-GSM, IP via AlarmNet |
| Outputs | 2 NACs, Form C relays, 4 opto-couplers |
| Supported Devices | CO zones, smoke detectors, RF, V-Plex, graphical keypads |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
| Storage Temperature | 14°F to 158°F (–10°C to 70°C) |
| Humidity | 85% RH max, non-condensing |
| Certifications | UL, ULC, CSFM, FM, FDNY, FCC Part 15, IEC EMC Directive |
| Weight | 10.00 lbs |
Information About VISTA-32FBPT
The VISTA-32FBPT is a robust and scalable alarm control system that supports two independent partitions and up to 32 zones/points, including up to 32 wireless zones when using Honeywell-compatible RF receivers. It integrates seamlessly with a broad ecosystem of Honeywell Home devices including keypads, access control, RF modules, and alarm communicators. Designed for use in fire-only, burglary-only, or combined applications, it is suitable for a wide range of environments—from churches and banks to factories and professional offices. The panel supports an extensive event memory (up to 512 events), stores 75 user codes, and is compatible with AlarmNet® for GSM, i-GSM, IP communications, and remote services via Total Connect. With flexible power options and agency approvals for both fire and intrusion, the VISTA-32FBPT provides exceptional reliability and integration versatility.
Key Features:
- Dual Partition Capability: Controls up to two independent areas with shared or separate zones.
- 32-Zone Capacity: Supports 8 hardwired zones (expandable to 32 with V-Plex) and up to 32 wireless zones.
- Commercial Grade Compatibility: Integrates with fire notification devices, keypads, RF receivers, and VISTAKEY® access control.
- Flexible Power Options: Operates on 18 VAC with 12VDC backup battery support and up to 2.3A total alarm current.
- Communication Options: Supports AlarmNet GSM/i-GSM/IP communicators, RS-232 serial connection, and Total Connect Remote Services (fire-only event reporting).
- Powerful Memory: Stores up to 512 events and accommodates 75 user codes and up to 250 VISTAKEY cardholders.
- Smoke & CO Zone Support: Built-in CO zone functionality and auto smoke detector sensitivity testing.
- Multiple NACs: Includes two on-board notification appliance circuits delivering up to 2.3A @ 12VDC.
- Agency Certified: UL, ULC, CSFM, FM, FDNY-listed for both fire and burglary applications.
- Intuitive Programming: Compatible with Honeywell graphical user interfaces like 6280 and Tuxedo Touch™.
The VISTA-32FBPT is engineered to deliver flexible fire and intrusion protection with full partitioning, event memory, and scalable communication — ideal for professional, institutional, and industrial use.
