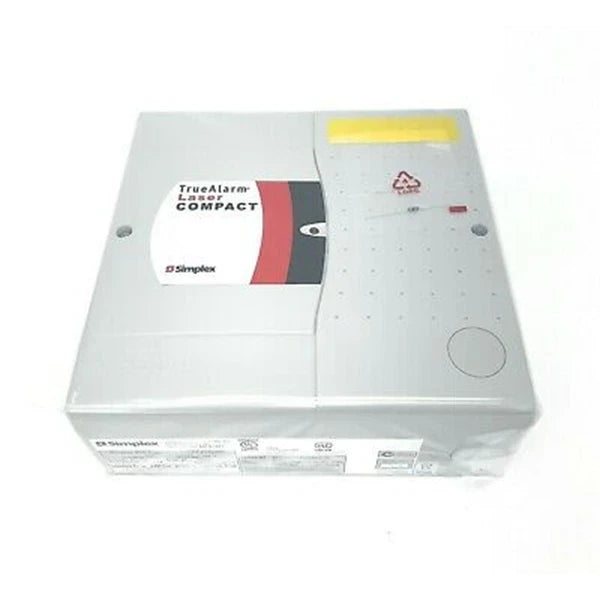

VLC-600 | Simplex TrueAlarm LaserCOMPACT Air Aspiration Smoke Detector (VESDA Technology)
- Regular price
- $4,972.00
- Sale price
- $4,972.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: VLC-600
Description
The Simplex VLC-600 TrueAlarm LaserCOMPACT Smoke Sensor is an air aspiration smoke detector designed for high-sensitivity detection using laser-based technology. It provides precise, addressable communication via MAPNET II or IDNet circuits for integration with Simplex 4100/4100U fire alarm control panels.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Simplex |
| Category | Fire Safety |
| Part Number | VLC-600 |
| Subcategory | Smoke Detector |
| Sensor Type | Air aspiration laser-based smoke detector |
| Supply Voltage | 18–30 VDC (from fire alarm control panel) |
| Supervisory Current | 175 mA |
| Alarm Current | 190 mA |
| Communication | MAPNET II or 4100U IDNet (auto-selected) |
| Addressing | One address per sensor |
| Electrical Termination | Terminal blocks for 18–12 AWG |
| Ambient Temperature | –10°C to +39°C |
| Sampled Air Temperature | –20°C to +60°C |
| Humidity | 10–95% RH, non-condensing |
| Sampling Area | Up to 800 m² coverage |
| Alarm Sensitivity Range | 0.05% to 12%/m obscuration |
| Sensitivity Levels | Three selectable alarm thresholds |
| Service Port | RS-232 (DB-9) for VESDA Vconfig Pro software |
| Enclosure Rating | NEMA 1 (IP30) |
| Certification | UL 268, SSL AS 1603.8–1996 |
| Dimensions | 225 × 225 × 85 mm (approx.) |
| Weight | 1.9 kg (4.2 lbs) |
Information About VLC-600
The VLC-600 TrueAlarm LaserCOMPACT is a compact air aspiration smoke detector that draws air samples through a pipe network for continuous monitoring of smoke presence. Using VESDA® technology, it delivers early warning detection and high reliability in mission-critical environments. It communicates obscuration data to the host fire alarm control panel, which interprets the information using the TrueAlarm analog sensing process. The VLC-600 supports programmable sensitivity thresholds and diagnostic communication for trouble conditions such as airflow faults or dirty filters. Designed for precision and durability, it complies with UL 268 standards and is suitable for clean rooms, data centers, and similar environments.
Key Features:
- Laser-Based Detection: Utilizes high-intensity laser light for precise smoke particle measurement.
- Air Aspiration Technology: Continuously samples air via a connected pipe network for early fire detection.
- Compact Design: 225 mm square enclosure ideal for tight installation spaces.
- Dual-Stage Dust Filtration: Maintains detection accuracy and extends maintenance intervals.
- Programmable Sensitivity: Adjustable alarm thresholds from 0.05%/m to 12%/m obscuration.
- MAPNET II / IDNet Communication: Automatically selects addressable communication format with Simplex panels.
- Status Indication: Local LED provides real-time visual feedback of sensor state; supports optional remote LED.
- Diagnostic Reporting: Communicates airflow, mechanical, and electrical fault conditions to the FACP.
- Panel Compatibility: Works directly with Simplex 4100ES, 4100U, and compatible TrueAlarm addressable systems.
- High Environmental Tolerance: Operates from –20°C to +60°C with 10–95% non-condensing humidity.
- Wide Area Coverage: Supports up to 800 m² of coverage and long sampling pipe runs using VESDA Aspire™ design tools.
The VLC-600 delivers precise, intelligent air sampling smoke detection and integrates seamlessly into advanced Simplex fire alarm systems.
