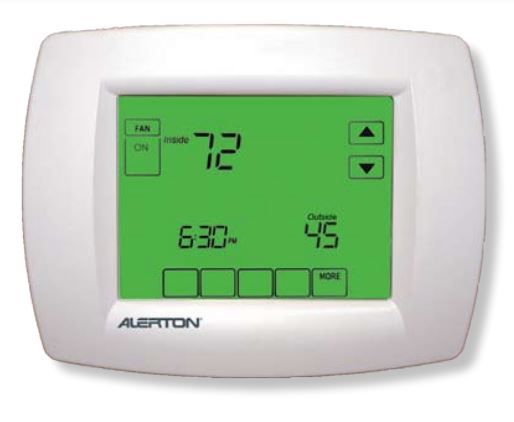

VLD-362 | Alerton BACnet VisualLogic Display Controller with Temperature & Humidity Sensors
- Regular price
- $857.00
- Sale price
- $857.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: VLD-362
Description
The Alerton VLD-362 is a BACnet®-based VisualLogic® Display that combines an intelligent controller with an integrated touchscreen interface and environmental sensors. The VLD-362 includes built-in temperature and humidity sensing along with direct digital control (DDC) capabilities for HVAC equipment such as rooftop units, fan-coil units, and heat pumps. It provides a user-friendly interface with a digital display and configurable control functions for building automation and room control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Alerton |
| Model | VLD-362 |
| Product Type | VisualLogic Display Controller |
| Communication Protocol | BACnet MS/TP |
| Network Speed | Up to 76.8 Kbps |
| Sensors | Internal temperature and humidity sensors |
| Universal Inputs | 3 |
| Binary Outputs | 6 |
| Analog Outputs | 2 |
| Control Type | Direct Digital Control (DDC) |
| Control Loop Speed | 100 ms |
| Display Type | Touchscreen digital display |
| Application | HVAC control for rooftop units, fan-coil units, and heat pumps |
| Installation | Wall-mounted thermostat-style device |
| Compliance | UL 916, CE (EN 60950), FCC Part 15 Class B |
| Weight | 0.72 lbs |
Information About VLD-362
The VLD-362 integrates a VisualLogic controller and display in a single device, making it ideal for retrofit thermostat applications or installations where a combined interface and controller simplifies deployment. It communicates over a BACnet MS/TP network, allowing seamless integration with Alerton building automation systems and other BACnet-compatible equipment.
The controller includes multiple input and output points for flexible HVAC control and can operate either as a standalone device or as part of a networked building management system. Its built-in DDC logic enables precise control of environmental conditions, while optional wireless sensors can provide occupancy detection and door status monitoring.
The device is particularly suited for hospitality environments, offices, and commercial buildings where intuitive room control, energy efficiency, and integration with building automation systems are required.
Key Features:
- Integrated Controller and Display: Combines VisualLogic controller and touchscreen interface in one device.
- Built-in Environmental Sensors: Includes internal temperature and humidity sensors.
- BACnet MS/TP Communication: Fully BACnet compliant for integration with building automation systems.
- Direct Digital Control (DDC): Supports advanced HVAC control with customizable logic.
- Multiple I/O Points: Includes universal inputs, binary outputs, and analog outputs for flexible system control.
- Standalone or Network Operation: Can operate independently or as part of a larger BAS network.
- Wireless Sensor Integration: Supports door and occupancy sensors for energy-efficient control.
- Touchscreen User Interface: Provides a modern display with configurable layouts and easy operation.
- Fast Control Loop: Internal DDC logic loop operates at 100 ms for responsive control.
