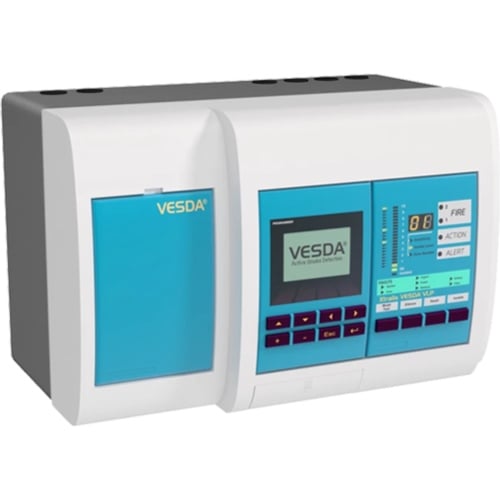

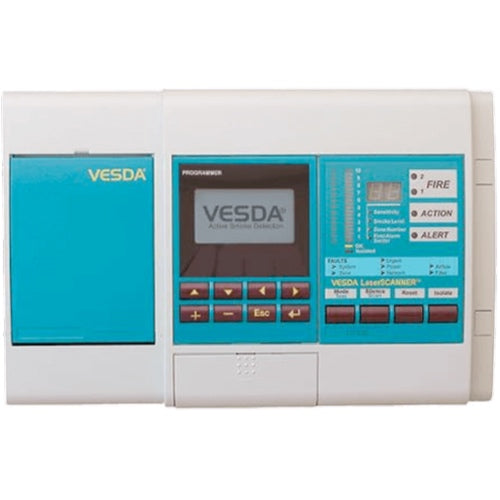

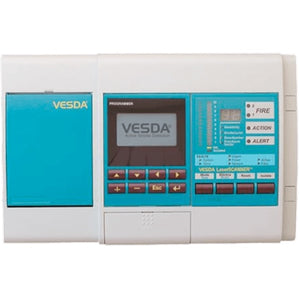

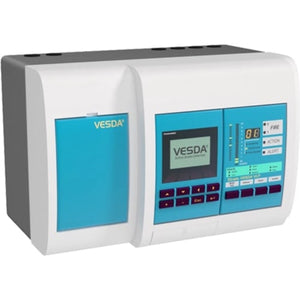

VLS-214 | Vesda LaserSCANNER 4-Pipe Aspirating Smoke Detector with LCD Display (7 Relays)

Description

The Vesda® VLS-214 is a LaserSCANNER aspirating smoke detector equipped with a centrally mounted LCD Programmer Module and Scanner Display Module, featuring 7 programmable relays. It uses advanced laser-based detection technology combined with a sector-scanning valve mechanism to identify which of four sampling pipes contains smoke. This intelligent design enables fast, precise identification of fire origins and delivers very early warning smoke detection for high-value or complex environments.

Technical Specifications

Information About VLS-214

The VLS-214 is part of the VESDA LaserSCANNER (VLS) series, an advanced variant of the LaserPLUS detector that introduces a valve manifold and intelligent control software for multi-sector monitoring. Each of its four inlet pipes can function as an independent detection sector within a single zone, allowing localized detection and alarm reporting. When smoke is detected, the system initiates an Adaptive Scan process to identify the First Alarm Sector (FAS) and monitor fire progression across all pipes. The detector features AutoLearn™ and Referencing™ software to automatically set alarm thresholds and eliminate false alarms caused by external air contamination. With VESDAnet™ networking and modular display options, the VLS-214 offers powerful, networked detection control for mission-critical applications.

Key Features:

• Four-Sector Detection: Divides a single zone into four monitored pipes for precise source identification.
• Adaptive Scan Threshold: Rapidly scans all sectors to locate the pipe carrying smoke and identify the First Alarm Sector (FAS).
• Laser-Based Detection: Uses high-sensitivity laser chamber for accurate, early-stage smoke detection.
• VESDAnet™ Connectivity: Enables system networking, configuration, and centralized monitoring.
• Multi-Level Alarms: Four configurable alarms (Alert, Action, Fire 1, Fire 2) per sector for tailored protection.
• High-Efficiency Aspirator: Ensures consistent airflow across all four pipes for stable performance.
• Dual-Stage Air Filtration: Protects optical surfaces and maintains long-term detector sensitivity.
• AutoLearn™ & Referencing™: Self-calibrating and compensating functions minimize nuisance alarms and ensure optimal sensitivity.

The VLS-214 delivers the reliability and precision required for very early smoke detection with intelligent sector scanning in large or complex critical environments.
