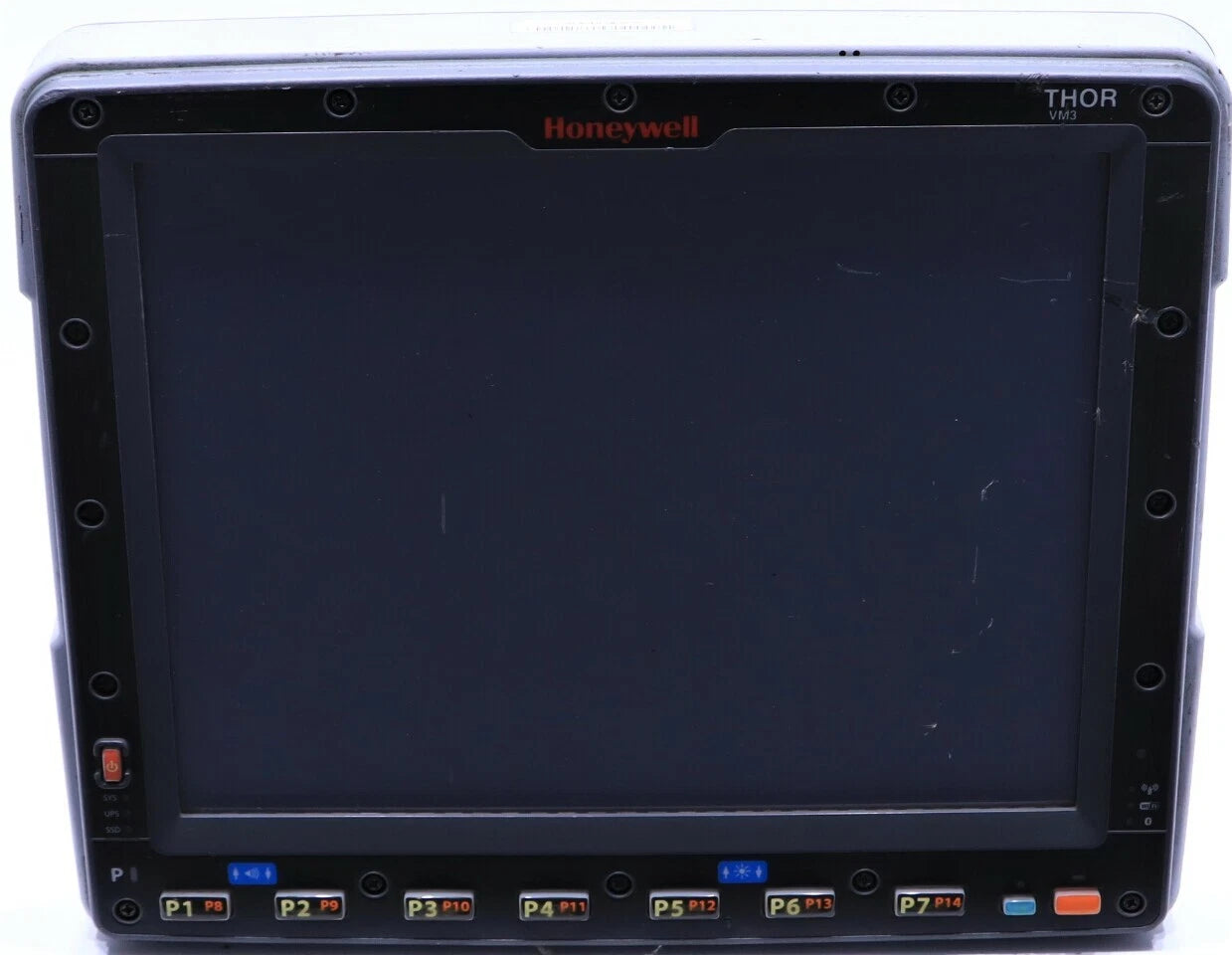

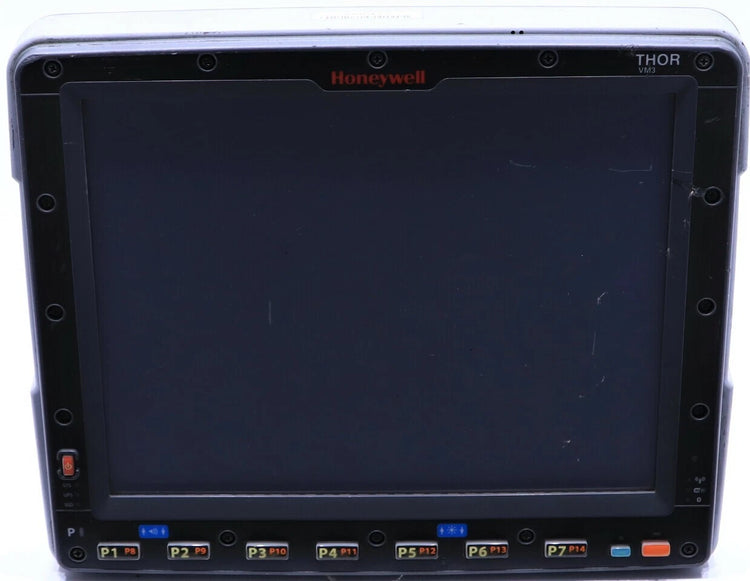

VM3W2F1A1AUS04A | Honeywell Thor Vehicle Mounted Computer Data Terminal
- Regular price
- $1,324.00
- Sale price
- $1,324.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: VM3W2F1A1AUS04A
Description
The VM3W2F1A1AUS04A is a rugged, full-size vehicle-mounted computer engineered for forklift and material-handling operations. It features a large touch display, powerful Intel Atom processing, and enterprise wireless connectivity to support intensive data applications in industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Computer
|
| Part Number | VM3W2F1A1AUS04A |
| Subcategory | Vehicle-Mount Computer |
| Display | 12.1″ XGA (1024×768) touchscreen, LED backlight (400–900 cd/m²), resistive or capacitive, optional defroster |
| CPU | Intel Atom E3826 dual-core @ 1.46–1.5 GHz |
| RAM | 4 GB DDR3 (expandable to 8 GB) |
| Storage | 64 GB internal flash (supports up to 128 GB SSD via mSATA) |
| Wireless Connectivity | WLAN 802.11a/b/g/n (optional ac), Bluetooth 2.0, optional WWAN & GPS |
| Ports / I/O | USB, serial, CANbus, Ethernet via dock; dual antenna options |
| Function Keys | 7 programmable front-panel keys |
| Power Input | Vehicle power 7–12 VDC; ignition control; integrated UPS for 30 min backup |
| Operating Systems | Windows Embedded Compact 7, Embedded Standard 7, Windows 7, Embedded 8.1 Industry Pro |
| Rugged Certification | IP66, MIL‑STD‑810F/G, SAE‑J1455, EN 55024, CCX |
| Environmental | –30 °C to +50 °C operating; heavy shock/vibration resistant |
| Dimensions (W×D×H) | 318 × 260 × 62 mm (12.5″ × 10.3″ × 2.4″) |
| User-Replaceable Panel | Yes (front access with screwdriver) |
| Docking Options | Standard and enhanced “Smart Dock” available |
| Weight | ~6.65 lb (≈ 3.0 kg) |
Information About VM3W2F1A1AUS04A
The VM3W2F1A1AUS04A (Thor VM3) is a discontinued model from Honeywell’s enterprise-grade vehicle-mount computer line. It operates on Windows Embedded Standard 7 or Windows 7 with 4 GB DDR3 RAM and 64 GB of internal flash storage. Designed to withstand harsh manufacturing, warehouse, and freight applications, it supports 7–12 VDC vehicle power and includes ignition control and internal WLAN antenna. With built-in Bluetooth and 802.11a/b/g/n wireless, it enables real-time data capture and communications. Its defining features include a user-replaceable front panel, smart dock for quick mounting/removal, and Intel x86 dual-core performance for robust application handling.
Key Features:
- Rugged Design: IP66 rating, MIL‑STD‑810 compliant for shock, vibration, temperature.
- 12.1″ Touchscreen: XGA resolution (1024×768), available in resistive or capacitive variants, with optional defroster for cold storage.
- Powerful CPU: Dual-core Intel Atom E3826 @1.5 GHz delivers solid data throughput.
- Memory/Storage: Configured with 4 GB DDR3 RAM and 64 GB flash; supports up to 8 GB and 128 GB SSD.
- Smart Dock System: Enables hot-swapping between vehicles for maintenance flexibility.
- Ignition Control + UPS: Protects against downtime and battery drain with internal backup.
- Wireless Connectivity: Supports Bluetooth 2.0, WLAN 802.11a/b/g/n, optional WWAN and GPS.
- Field-Serviceable Panel: Front bezel is user-replaceable, reducing service costs.
- Programmable Keys: Includes seven configurable function buttons for streamlined workflows.
- Heavy I/O Support: USB, serial, CANbus, Ethernet via dock interface.
- OS Flexibility: Runs Windows CE, Embedded Standard 7, Windows 7, or Embedded 8.1 Industry Pro.
The VM3W2F1A1AUS04A delivers the rugged performance and enterprise functionality required for mission-critical vehicle-mounted computing.
