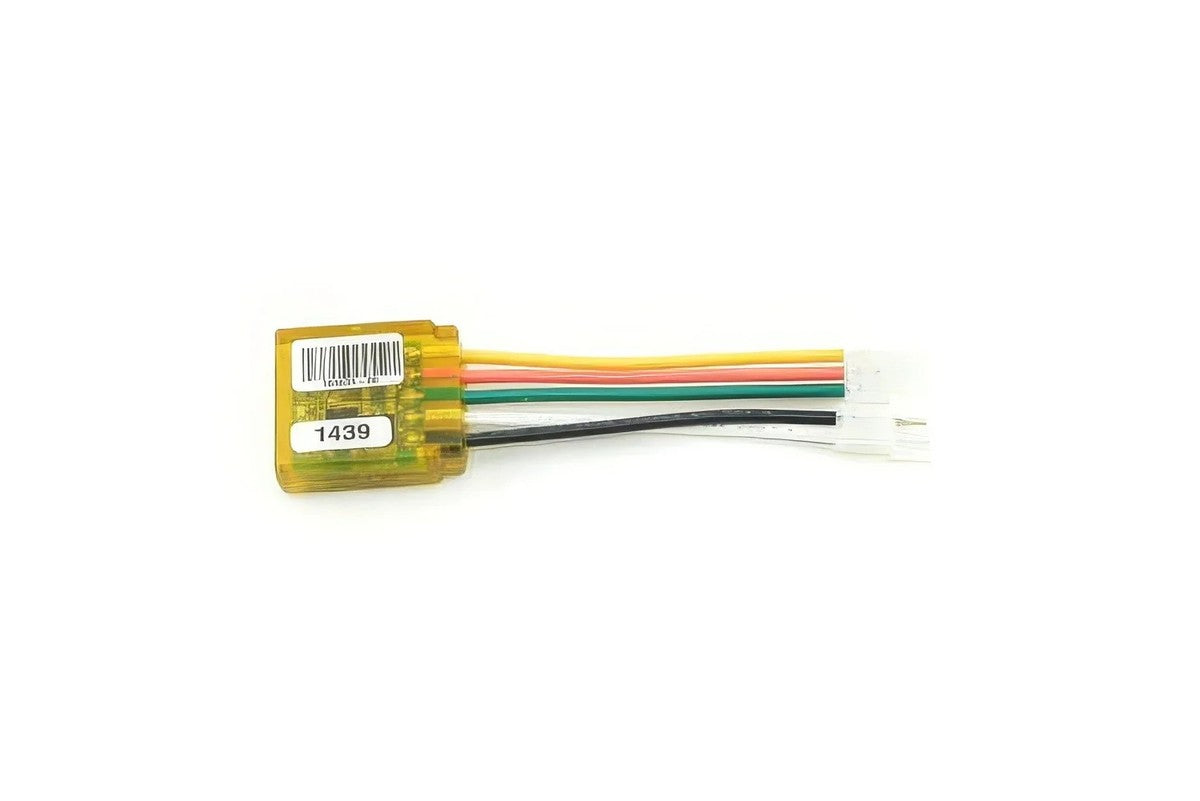

Von Duprin 050534 EL Potted Circuit Breaker Module for Electric Latch Retraction Exit Devices
- Regular price
- $377.00
- Sale price
- $377.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 050534
Description
The Von Duprin 050534 is a potted circuit breaker module designed for electric latch retraction (EL) exit devices used in commercial access control and life safety applications. Engineered to manage the transition from high inrush current to holding current, the Von Duprin 050534 helps protect EL solenoids while ensuring dependable operation of compatible panic hardware.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Von Duprin |
| Category | Access Control |
| Part Number | 050534 |
| Subcategory | Electric Latch Retraction Modules |
| Manufacturer | Allegion plc |
| Product Type | Potted Circuit Breaker Module |
| Series | Von Duprin Accessories |
| Application | Electric Latch Retraction (EL) Exit Devices |
| Function | Switches from inrush current to holding current |
| Current Switching Time | Approximately 300 milliseconds |
| Input Connection | 2-Wire Plug Connector |
| Output Connection | 3-Wire Plug Connector |
| Wiring Polarity | Non-Polarized |
| Compatibility | Von Duprin 33A/35A, 98/99 Series EL Devices |
| Additional Compatibility | Von Duprin 94/9547 Series Recessed Exit Devices, Doromatic EL1490, EL1590, EL1690, Falcon EL Devices |
| Construction | Fully Potted Electronic Module |
| Country of Origin | United States |
| Dimensions | 5.0 × 1.25 × 0.44 in |
| Weight | Approximately 0.2 lbs |
Information About 050534
The 050534 is an electrical accessory developed by Von Duprin for electric latch retraction exit devices equipped with EL solenoids. The module automatically switches from the initial high-current pull required to retract the latch to a lower holding current after approximately 300 milliseconds, improving efficiency and reducing stress on system components. It features factory-installed input and output connectors for simplified installation and is compatible with selected Von Duprin, Doromatic, and Falcon exit devices. Its fully potted construction protects the internal electronics from vibration, dust, and environmental contaminants, making it suitable for demanding commercial installations.
Key Features:
- Electric Latch Retraction Module: Designed specifically for EL-equipped exit devices.
- Automatic Current Switching: Transitions from high inrush current to holding current after approximately 300 ms.
- Potted Electronics: Encapsulated circuitry improves durability and environmental protection.
- EL Solenoid Protection: Reduces electrical stress on electric latch retraction solenoids.
- Plug-In Connections: Includes two-wire input connector and three-wire output connector.
- Non-Polarized Wiring: Simplifies installation without concern for wire polarity.
- Broad Compatibility: Supports multiple Von Duprin, Doromatic, and Falcon EL exit devices.
- Commercial Grade Construction: Built for demanding access control and life safety applications.
- Compact Design: Easily fits within compatible exit device assemblies.
- OEM Replacement Component: Genuine Von Duprin replacement module for compatible hardware.
The 050534 delivers the reliability and precision required for electric latch retraction exit device control and protection in commercial access control systems.
