VPL-B1002E-CJ12AA | Allen-Bradley Programmable Logic Controller

Description

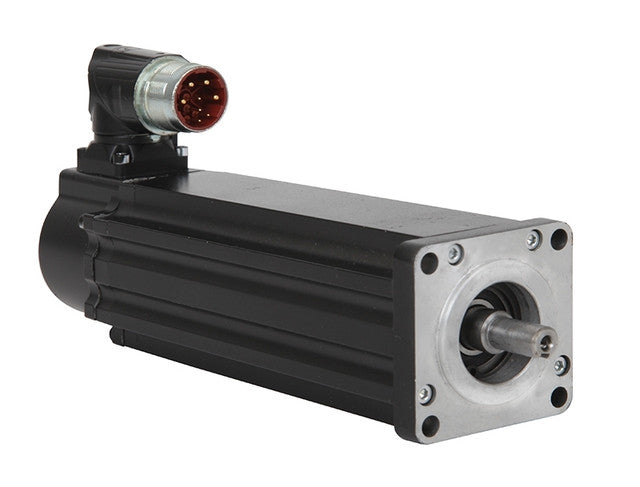

The Allen-Bradley VPL-B1002E-CJ12AA is a Kinetix® VP Low Inertia Servo Motor engineered for high-performance motion control applications. Operating at 400V AC, this servo motor delivers a rated speed of 3500 RPM and features a 100 mm frame size with two magnet stacks.

Technical Specifications

Information About VPL-B1002E-CJ12AA

The Allen-Bradley VPL-B1002E-CJ12AA is a Kinetix® VP Low Inertia Servo Motor, designed for high-performance motion control applications in industries like packaging, material handling, and automation. It is engineered to provide precise positioning, high torque, and efficient operation, making it ideal for dynamic and high-speed tasks.

Key Specifications:

• Model: VPL-B1002E-CJ12AA
• Series: Kinetix® VP Low Inertia Servo Motors
• Voltage Class: 400V AC
• Frame Size: 100 mm bolt circle diameter
• Magnet Stack Length: Two stacks
• Rated Speed: 3500 RPM
• Continuous Stall Torque: ~2.5 Nm (varies by application)
• Peak Torque: ~7.5 Nm (varies by application)
• Shaft Type: Keyed shaft
• Feedback Device: 18-bit single-turn digital high-resolution encoder using Hiperface DSL protocol
• Connector Type: Single SpeedTec DIN connector, right-angle, 325° rotatable
• Mounting Flange: IEC metric standard
• Brake Option: No holding brake

Key Features:

• High-Resolution Encoder:
  Equipped with an 18-bit single-turn digital encoder using Hiperface DSL for precise feedback and positioning accuracy.

• Low Inertia Design:
  Designed for rapid acceleration and deceleration, improving cycle times in dynamic applications.

• Efficient Connectivity:
  The SpeedTec DIN connector is rotatable (325°) for simplified and flexible cabling during installation.

• Standardized Mounting:
  Conforms to IEC metric mounting flange standards, ensuring compatibility with a wide range of equipment.

• No Holding Brake:
  This model comes without a holding brake, making it suitable for applications where braking is handled externally or is unnecessary.

Benefits:

• Enhanced Motion Control:
  The high-resolution encoder and low inertia design provide excellent motion accuracy and dynamic response, improving product quality and system efficiency.

• Simplified Cabling:
  The single cable solution (Hiperface DSL) combines power and feedback in one cable, reducing wiring complexity and installation time.

• Reliable Performance:
  The servo motor offers high torque output and durability, supporting demanding industrial applications with continuous and peak torque requirements.

• Seamless Integration:
  Optimized for use with Kinetix® 5500 and 5700 servo drives, enabling streamlined setup and improved system performance.

Applications:

• Packaging Machinery:
  High-speed motion control for cutting, sealing, and wrapping machines.

• Material Handling:
  Precise control of conveyors, sorters, and pick-and-place systems.

• Robotics:
  Used in robotic arms and automated assembly for accurate positioning and movement.

• Printing Machines:
  Maintains precise speed and positioning in printing applications.

• Automated Inspection Systems:
  Delivers smooth, controlled movements for vision-guided inspection systems.

The Allen-Bradley VPL-B1002E-CJ12AA Kinetix® VP Low Inertia Servo Motor offers high-precision motion control with robust performance and efficient connectivity, making it an ideal solution for dynamic and demanding industrial automation applications.
