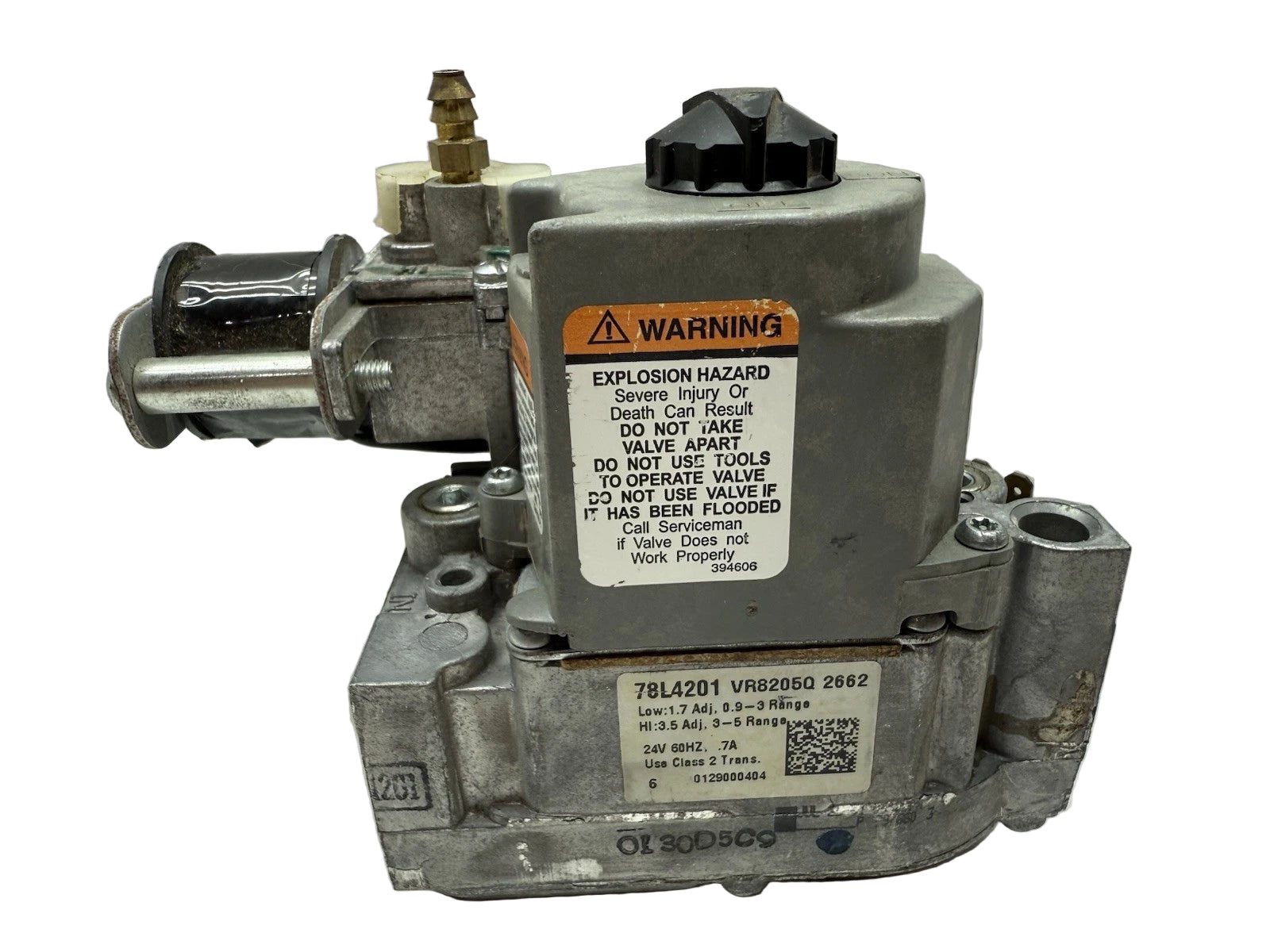

VR8205Q2662 | Honeywell Two-Stage Combination Gas Valve for Two-Stage Furnaces
- Regular price
- $517.00
- Sale price
- $517.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: VR8205Q2662
Description
The Honeywell VR8205Q2662 is a two-stage combination gas control valve designed for residential and light-commercial furnaces. It supports dual-stage operation to provide both low- and high-output heating modes, enhancing comfort and energy efficiency. The valve integrates manual shut-off, dual automatic operators, and a built-in regulator for stable pressure control throughout operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC Controls |
| Part Number | VR8205Q2662 |
| Subcategory | Two-Stage Combination Gas Valve |
| Fuel Type | Natural Gas or LP (field convertible) |
| Opening Characteristics | Two-Stage (low then high) |
| Inlet / Outlet Size | ½″ NPT default (adapters available) |
| Pressure Regulator Setting | Low and high stage settings factory-preset |
| Ambient Temperature Range | 0 °F to +175 °F (–18 °C to +79 °C) standard variants |
| Mounting Orientation | 0° to 90° from upright (including vertical) |
| Control Knob Positions | OFF / ON (manual) |
| Conversion Kit Availability | Yes – Natural ↔ LP |
| Capacity (typical) | ~150 ft³/h at 1 inch WC drop (natural gas) |
| Inlet/Outlet Pressure Taps | Yes |
| Body Pattern | Straight-through |
| Application | Two-stage furnace burner control |
Information About VR8205Q2662
The VR8205Q2662 is part of Honeywell’s VR8205 series of direct-ignition combination gas controls, intended for systems using 24 V control circuits. It features two automatic valves (solenoid + diaphragm regulator) inside one body that open sequentially to provide the two stages of burner output. The valve has a straight-through body pattern with standard ½″ NPT inlet and outlet ports, and the regulator is factory-set with outlet pressure for natural or LP gas (conversion kits available for change of fuel type). The device also provides an integral manual knob (OFF/ON) and mounting flexibility from 0° to 90° in any direction. The VR8205Q2662 is commonly used as a direct replacement for OEM parts such as Lennox 78L4201 in two-stage furnace systems.
Key Features:
- Two-Stage Output Design: Provides low-stage and high-stage burner control for improved comfort and efficiency.
- Dual Automatic Operators: Combines a solenoid-operated first valve and diaphragm-operated second valve for reliable sequencing.
- Built-in Pressure Regulator: Maintains consistent outlet pressure despite fluctuations in supply pressure.
- Fuel Convertible: Products can be set for natural or LP gas, with conversion kits available for change-over.
- Manual ON/OFF Knob: Provides simple manual shut-off capability for service or safety shutdown.
- Straight-Through Body Pattern: Facilitates simple installation and flow path with ½″ inlet/outlet by default.
- Flexible Mounting Orientation: Can be installed at any angle from 0° to 90°, including vertical.
- Standard Temperature Range: Models commonly rated for 0 °F to +175 °F ambient (some variants extend to –40 °F).
- Inlet/Outlet Pressure Taps: Accessible pressure ports for testing and verifying system pressures during installation or maintenance.
- High Capacity Rating: Suitable for a wide range of furnace sizes with natural gas up to approx. 150 ft³/h at 1 inch WC drop (typical series rating)
The VR8205Q2662 delivers the control, reliability and flexibility required for modern two-stage furnace systems.
