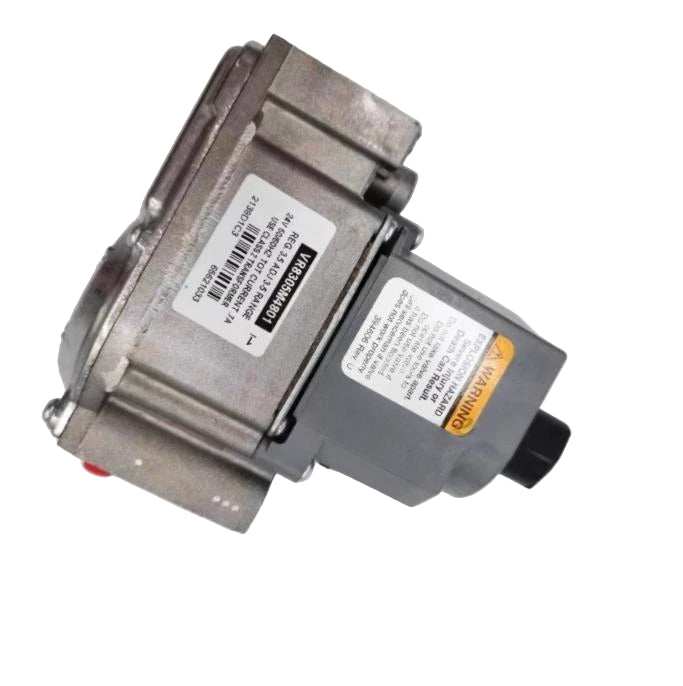

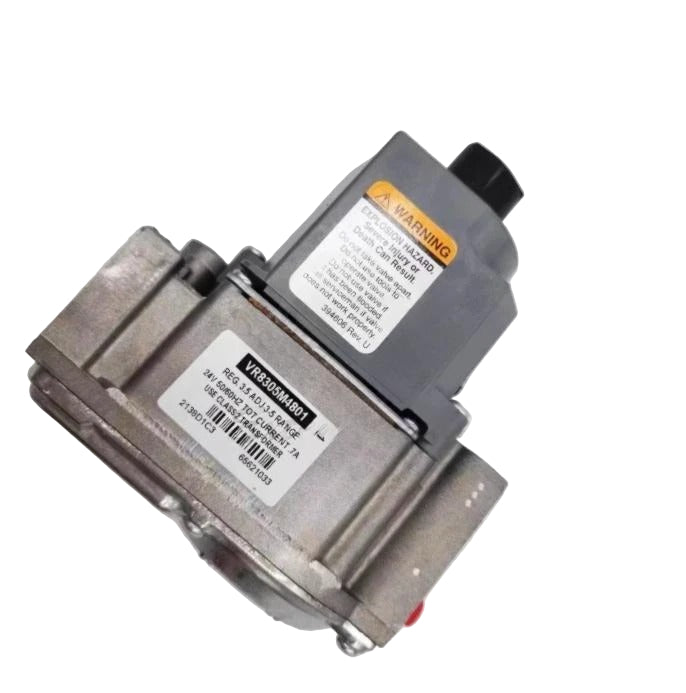

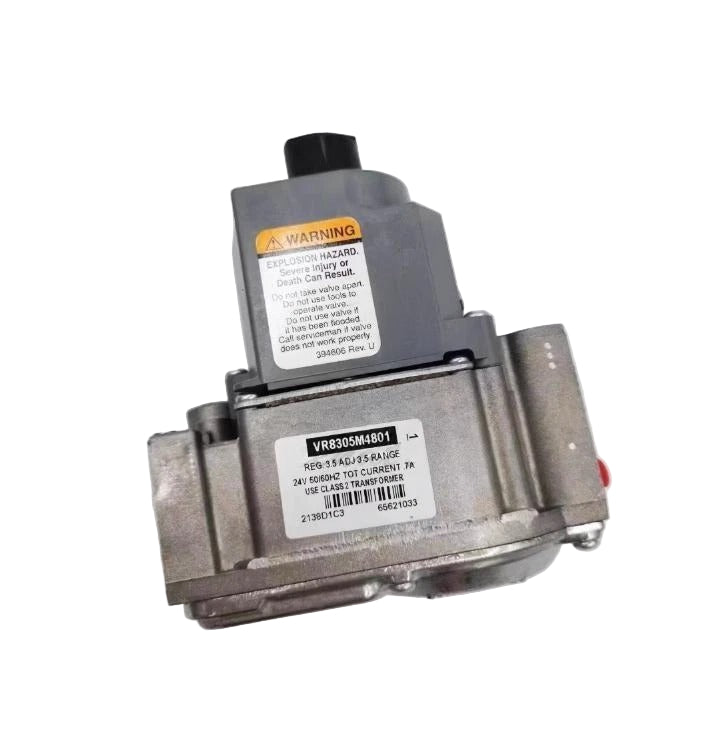

VR8305M4801 | Honeywell Single-Stage Natural Gas Valve 24 VAC
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: VR8305M4801
Description
The Honeywell VR8305M4801 is a single-stage natural gas valve designed for direct ignition systems. It delivers consistent gas flow control with a standard opening characteristic and operates on 24 VAC at both 50 Hz and 60 Hz.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Gas Valves |
| Part Number | VR8305M4801 |
| Subcategory | Single-Stage Natural Gas Valves |
| Application | Single-stage heating systems |
| Ignition Type | Direct ignition |
| Body Pattern | Straight-through |
| Mounting Orientation | 0° to 90° from upright, including vertical |
| Frequency | 50/60 Hz |
| Voltage | 24 VAC |
| Electrical Connections | 1/4 in. quick-connect male terminals |
| Inlet/Outlet Size | 3/4 in. x 3/4 in. |
| Capacity | 30,000–300,000 BTUh at 1 in. wc pressure drop |
| Pressure Regulator Setpoint | 3.5 in. wc (0.87 kPa) |
| Adjustable Range | 3–5 in. wc |
| Operating Temperature Range | -40°F to +175°F (-40°C to +79°C) |
| Pressure Ratings | 1/2 psi (3.5 kPa) |
| Pressure Tapping | 1/8 in. NPT with plug |
| Approvals | UL Component Recognized (MH8191), CSA International (112395) |
| Dimensions | 5 3/8 in. H × 5 1/16 in. W × 2 11/16 in. D |
| Weight | 1.58 lbs |
Information About VR8305M4801
The VR8305M4801 is part of Honeywell’s versatile line of single-stage gas control valves, engineered for use in residential and light commercial heating systems. It features a straight-through body pattern with 3/4-inch inlet and outlet connections, as well as a built-in pressure regulator factory set to 3.5 in. wc for natural gas operation. The valve supports a mounting orientation from upright to 90 degrees in any direction, including vertical positioning, providing flexibility for various installation layouts. Designed for direct ignition applications, it incorporates quick-connect male terminals for easy electrical hookup, a capacity range from 30,000 to 300,000 BTUh, and durable construction for dependable operation across a temperature range of -40°F to +175°F.
Key Features:
-
Single-stage gas control: Provides reliable regulation of natural gas flow for heating systems requiring one-stage operation.
-
Direct ignition compatibility: Designed for modern ignition systems without a standing pilot, improving efficiency and safety.
-
Straight-through body pattern: Ensures consistent gas flow and simple integration into system piping.
-
Flexible mounting options: Can be installed from upright to 90 degrees in any direction, including vertical positions.
-
High flow capacity: Handles up to 300,000 BTUh at 1 in. wc pressure drop, with a 30,000 BTUh minimum.
-
Built-in pressure regulation: Factory set to 3.5 in. wc for natural gas, with an adjustable range of 3–5 in. wc.
-
Wide operating temperature range: Functions from -40°F to +175°F (-40°C to +79°C), suitable for harsh conditions.
-
UL and CSA approvals: Certified for safety and performance by recognized industry standards bodies.
The VR8305M4801 delivers the reliability and precision required for safe and efficient natural gas control in single-stage heating applications.
