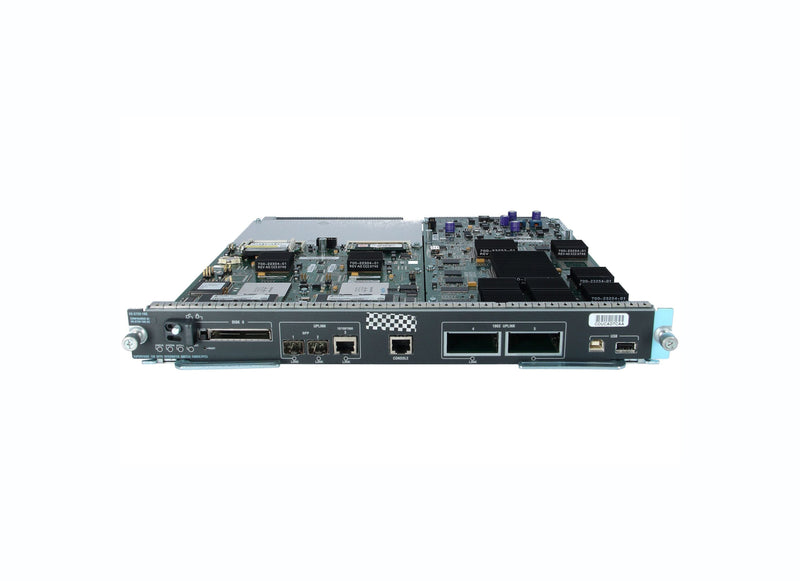

VS-S720-10G-3CXL | Cisco Control Processor
- Regular price
- $2,467.00
- Sale price
- $2,467.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: VS-S720-10G-3CXL
Description
The Cisco VS-S720-10G-3CXL is a high-performance Supervisor Engine designed for the Cisco Catalyst 6500 Series switches, delivering advanced control processing, 10 Gigabit Ethernet uplinks, and enhanced scalability.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category |
Networking Hardware
|
| Part Number | VS-S720-10G-3CXL |
| Subcatecory |
Switch Supervisor Engine / Control Processor
|
|
Product Description
|
Catalyst 6500 Supervisor engine 720-10G-VSS (PFC 3CXL) |
|
Ports
|
2 * 10G X2, 2 * 1G SFP, 1 * 10/100/1000 GE |
|
Console Ports
|
RS-232 |
|
Centralized Switching Capacity
|
720 Gbps |
|
Per-slot Switching Capacity
|
40 Gbps |
|
FNF (Flexible NetFlow) Entries
|
256,000 |
|
Forn Factor
|
Plug-in Module |
|
Memory
|
● WS-SUP720 supports 512MB of DRAM for the route processor and 512 MB for the switch processor ● 64MB or 512MB (s/w image dependent) Boot Flash for SP switch processor and 64-MB of Boot Flash for the route processor |
|
Options
|
Removable storage: 64MB, 128 MB, 256 MB, 512 MB (Compact Flash) |
|
Throughput (in hardware)
|
● 450 Mpps for IPv4 ● 225 Mpps for IPv6 ● 450Mpps for Layer 2 Bridging |
|
Routing Entries
|
● IPV4: 1,000,000 ● IPV6: 500,000 |
|
Security ACL Entries
|
32,000 |
|
Number Of Interfaces With Unique ACLs
|
4,000 |
|
MAC ACLs on IP
|
Yes |
|
Aggregate Traffic Rate-Limiting
Policers |
1,023 |
|
NAT
|
Hardware assisted |
|
Weight
|
5.67 kgs |
Information About VS-S720-10G-3CXL
The Cisco VS-S720-10G-3CXL is a high-performance Supervisor Engine designed for Cisco’s Catalyst 6500 Series switches. It delivers scalable Layer 2, 3, and 4 switching, advanced traffic management, and flexible 10 Gigabit Ethernet uplinks, making it ideal for enterprise core, distribution, and data center deployments requiring high availability and redundancy.
Key Features:
- Type: Supervisor Engine with dual 10 Gigabit Ethernet X2 uplink ports and integrated Policy Feature Card 3CXL (PFC3CXL) for hardware-accelerated Layer 2/3/4 switching and routing
- Supported Devices: Compatible with Cisco Catalyst 6500 Series chassis and a broad range of Cisco line cards and service modules, supporting enterprise servers, aggregation switches, and high-performance network appliances
- Functionality: Provides advanced Layer 2/3/4 switching, comprehensive routing protocol support (including EIGRP, OSPF, BGP, IS-IS), stateful switchover (SSO), Nonstop Forwarding (NSF), and extensive Quality of Service (QoS) and security features
- Form Factor: Modular supervisor engine with compatibility for redundant supervisor configurations and support for hot-swappable components to enhance resiliency and uptime
- Installation: Seamless integration into Catalyst 6500 chassis, offering easy deployment, simplified management, and scalability for large network environments
- Construction: Durable, enterprise-grade hardware designed for continuous 24/7 operation, featuring a 720 Gbps switch fabric capacity and up to 400 million packets per second (Mpps) forwarding rate
The VS-S720-10G-3CXL is ideal for organizations seeking a scalable, resilient, and high-performance supervisor engine to manage complex and demanding enterprise, campus, and data center networks.
