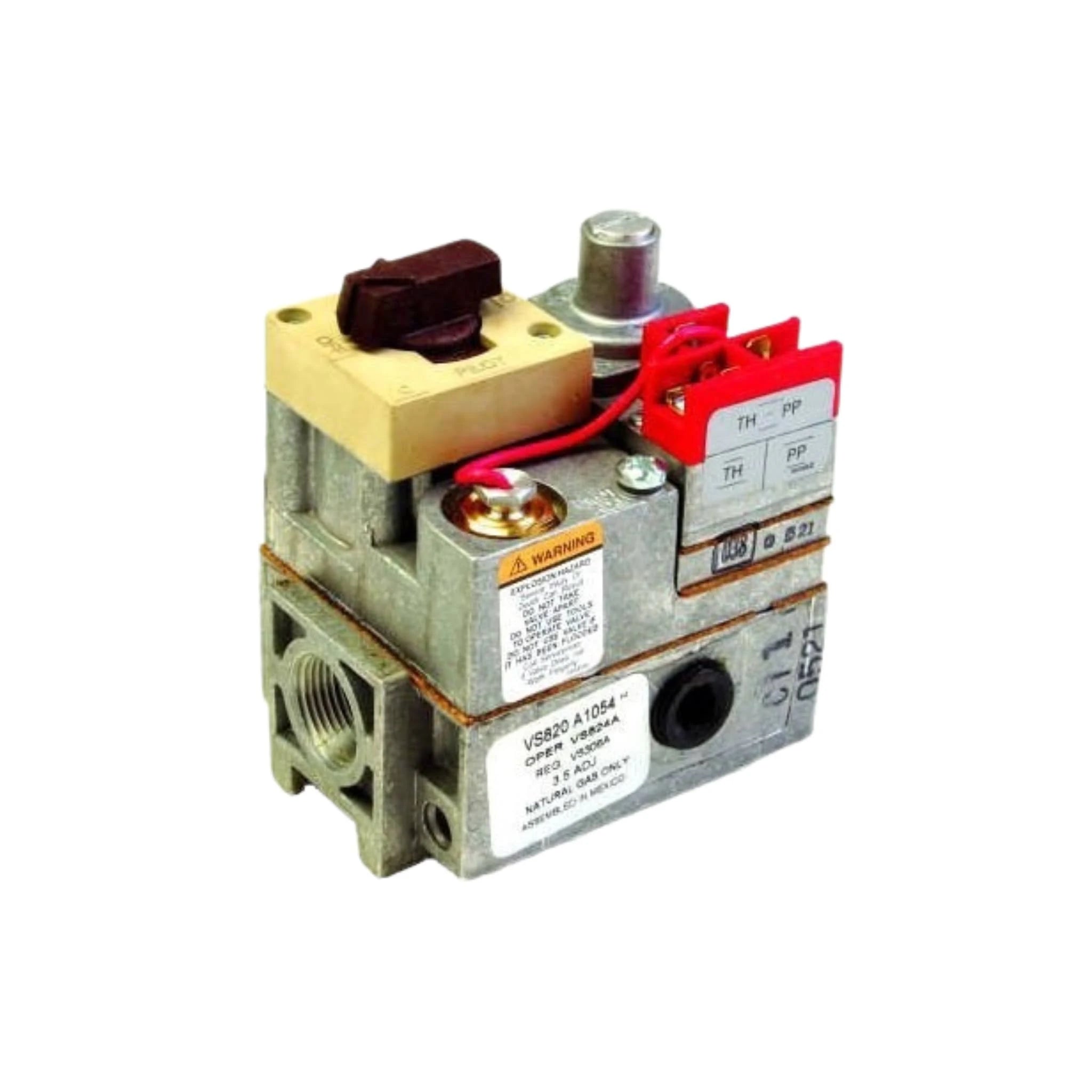

VS820A1054 | Honeywell PowerPile Millivolt Combination Gas Valve 3/4″ NPT for Natural Gas
- Regular price
- $659.00
- Sale price
- $659.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: VS820A1054
Description
The Honeywell VS820A1054 Standard PowerPile Millivolt Combination Gas Valve is a self-powered gas control designed for use with 750 mV thermopile systems. Featuring a 3/4″ NPT x 3/4″ NPT straight-through body, it integrates manual, automatic, and safety functions into a single compact assembly for heating appliances using natural gas.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Valves |
| Part Number | VS820A1054 |
| Subcategory | Control Valve |
| Valve Type | Millivolt Combination Gas Valve |
| Gas Type | Natural Gas |
| Inlet/Outlet Size | 3/4″ NPT × 3/4″ NPT with 1/2″ NPT side outlets |
| Mounting Orientation | 0–90° from upright position |
| Pressure Regulator Type | Standard adjustable regulator |
| Pressure Regulator Setting | 3.5 in. wc (0.87 kPa), adjustable 3–5 in. wc |
| Maximum Inlet Pressure | 1/2 psi (3.5 kPa) |
| Electrical Rating | 750 mV (PowerPile generator) |
| Operating Temperature Range | 32 °F – 175 °F (0 °C – 79 °C) |
| Body Pattern | Straight-through, multi-tapped |
| Pilot Gas Outlet | Compression fitting for 1/4″ OD tubing |
| Pressure Tapping | 1/8″ NPT with plug |
| Ignition Type | Standing Pilot |
| Capacity | 34,000 – 425,000 BTU/hr |
| Certifications | UL Component Recognized, CSA & AGA Design Certified |
| Includes | (2) 3/4″ × 1/2″ reducer bushings, (1) 1/2″ × 3/8″ reducer bushing |
| Dimensions (in.) | 4 ¾ H × 4 ¹⁄₁₆ W × 3 ³⁄₁₆ D |
| Weight | 2.15 lbs |
Information About VS820A1054
The VS820A1054 is part of Honeywell’s proven PowerPile VS820 series, engineered for millivolt-operated gas-fired heating equipment such as boilers, furnaces, and space heaters. This model combines a Lite-Rite manual gas cock, Pilotstat safety shutoff, millivoltage-operated automatic valve, and adjustable pressure regulator into one control unit. It functions without external electrical power, drawing energy from a thermopile generator heated by the pilot flame. Designed for flexibility, it mounts in any position up to 90° from vertical and includes multiple tapped ports for convenient piping. The valve is UL and CSA certified for reliability and safety compliance.
Key Features:
- Self-Powered Operation: Works with a 750 mV PowerPile generator, eliminating external electrical power requirements.
- Integrated Safety Design: Combines manual gas cock, automatic valve, and Pilotstat safety shutoff in one assembly.
- Complete Flame Failure Protection: Shuts off main and pilot gas flow immediately upon pilot flame loss.
- Adjustable Pressure Regulator: Factory set to 3.5 in. wc with adjustable range of 3–5 in. wc for consistent performance.
- LITE-RITE Lighting Sequence: Features OFF-PILOT-ON positions for simplified startup and reliable ignition.
- Universal Mounting Capability: Installs in any orientation within 0–90° of vertical, accommodating various system layouts.
- Service-Friendly Construction: All adjustments and terminals accessible from the top of the control for easy setup and maintenance.
- Durable Straight-Through Body: Cast metal housing with 3/4″ NPT inlets/outlets and 1/2″ NPT side taps ensures long service life.
- Pilot Flow Adjustment: Built-in screw provides fine control for pilot flame tuning.
- Comprehensive Certification: UL Component Recognized, CSA and AGA Design Certified for safety and performance.
The VS820A1054 delivers the dependable performance, safety, and convenience required for self-powered natural gas heating systems.
