VSA-2K | Potter Sound Detection Kit with Controller, Microphone & Remote Test Annunciator
- Regular price
- $449.00
- Sale price
- $449.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: VSA-2K
Description
The Potter VSA-2K Sound Detection Kit is a UL-listed, self-contained audio monitoring system designed for the protection of reverberant and non-reverberant vaults such as bank and mercantile vaults. Manufactured by Potter Electric Signal Company, LLC, this system detects abnormal acoustic signals associated with intrusion or attack. The kit includes a VSA-1 Controller/Microphone, a VSM Microphone, and an RTA Remote Test Annunciator, with expandability for up to ten microphones for enhanced coverage.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Potter |
| Category | Intrusion Detection |
| Part Number | VSA-2K |
| Subcategory | Sound Detection Kit |
| Series | VSA Series |

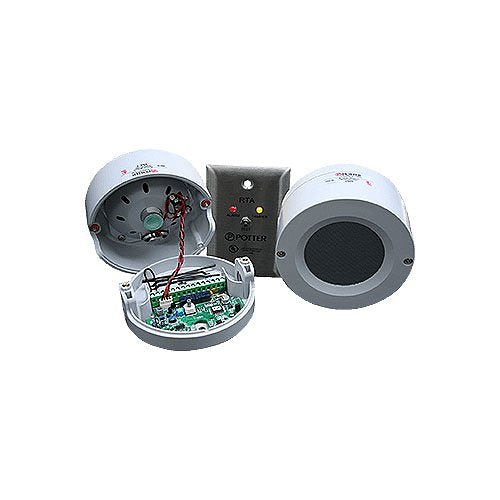

| Components Included | VSA-1 Controller/Microphone, VSM Microphone, RTA Remote Test Annunciator |
| Input Power | 9–16 VDC (12 VDC nominal) |
| Operating Current | 50 mA nominal / 250 mA maximum (at test) |
| Enclosure Material | High-impact halogen-free PC/ABS alloy |
| Sensitivity Adjustment | Manual, UL639 and UL681 compliant |
| Accumulator Function | 0–9 accumulated signals at 25% below alarm threshold |
| Relay Outputs | 1 Form C and 1 Form B, rated 2.0A @ 30VDC |
| Conduit Openings | Two ½" NPT |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Humidity Range | Up to 85% |
| Testing Options | On-board test button and remote test annunciator |
| Mounting Configuration | Surface mount |
| Country of Origin | United States |
| Weight | 3 lbs |
Information About VSA-2K
The VSA-2K is part of Potter’s VSA Series, a line of microprocessor-driven sound detection systems engineered for vault and safe protection applications. It integrates automatic impedance balancing and an on-board accumulator to ensure accurate alarm response to abnormal vibration or sound. The controller and microphone are combined into one enclosure for streamlined installation and operation. Fully compatible with standard UL639 and UL681 sound detection requirements, the VSA-2K provides flexible configuration through adjustable sensitivity, remote test capabilities, and optional additional microphones for expanded zone coverage.
Key Features:
- Complete Detection Kit: Includes controller/microphone, remote microphone, and remote test annunciator for full system setup.
- Expandable Design: Supports up to ten microphones for large or complex vault areas.
- Microprocessor-Controlled Balancing: Automatically adjusts impedance balance for stable, accurate operation.
- Adjustable Sensitivity: Manually tuned to detect attacks defined by UL639 and UL681 standards.
- Built-In Accumulator: Allows alarm activation after a defined number of sound pulses for reliable differentiation.
- Remote Test Capability: RTA test annunciator provides visual indicators and testing control without direct access to the controller.
- Durable Construction: Impact-resistant, halogen-free PC/ABS enclosure ensures long-term reliability.
- Multiple Relay Outputs: Provides form C and form B contacts for tamper and alarm signaling.
The VSA-2K delivers the reliability and precision required for secure, code-compliant acoustic intrusion detection in vaults, safes, and other high-security enclosures.
