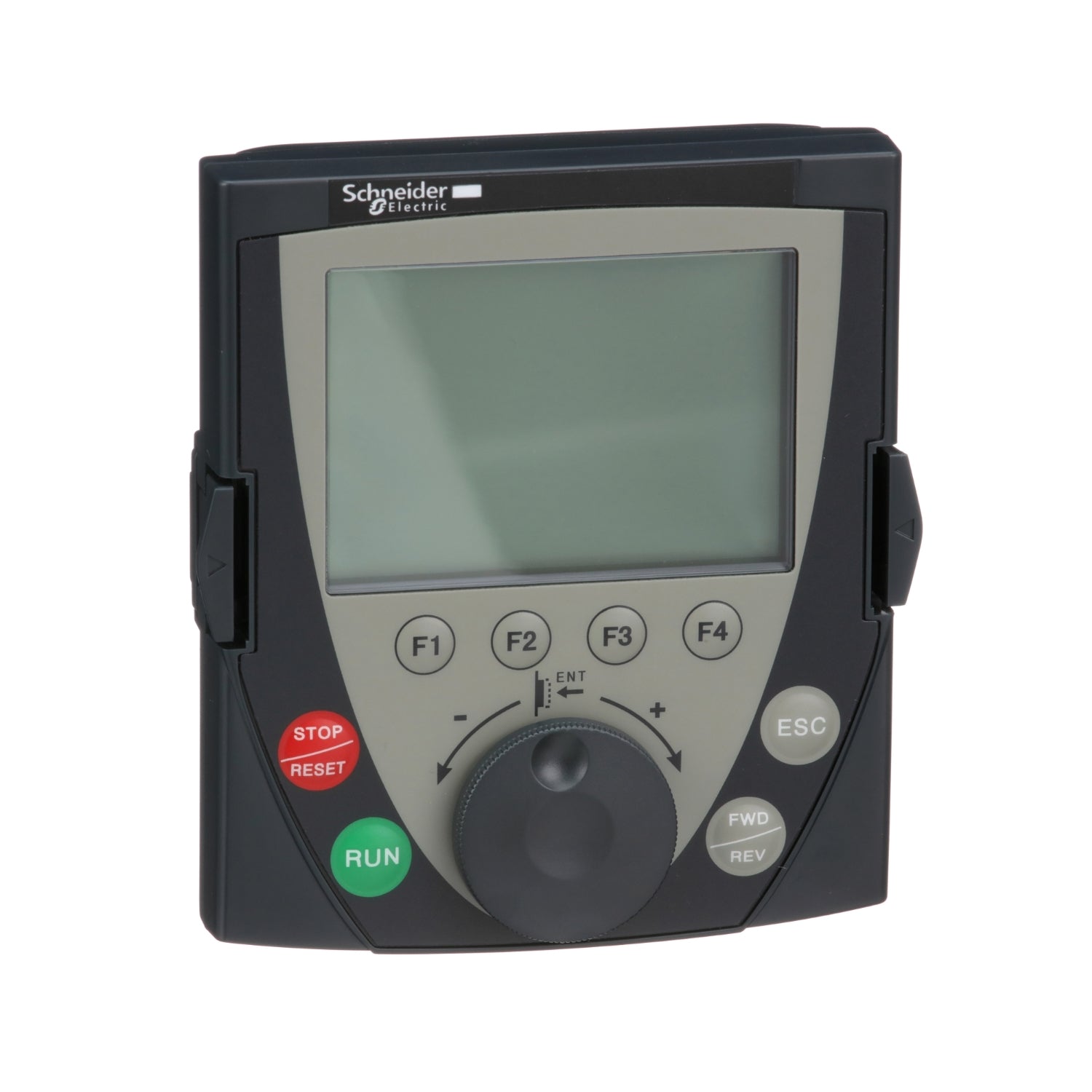

VW3A1101 | Schneider Electric Altivar Remote Graphic Terminal 240×160 Pixels, IP54
- Regular price
- $197.00
- Sale price
- $197.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: VW3A1101
Description
The Schneider Electric VW3A1101 is a remote graphic terminal engineered for use with Altivar drive systems, providing clear visualization and intuitive access to drive parameters. Its rugged IP54-rated construction and digital interface make it suitable for industrial environments requiring reliable monitoring and configuration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Drives |
| Part Number | VW3A1101 |
| Subcategory | Drive Interface / Operator |
| Series | VW3A11 |
| Type | Graphic Terminal |
| Mounting Style | DIN Rail Mount |
| Analog / Digital | Digital |
| Number of Inputs | 8 |
| Number of Outputs | 8 |
| Product Type | Controller Accessory |
| Operating Temperature (Min) | −15 °C |
| Operating Temperature (Max) | 50 °C |
| Protection Rating | IP54 |
| Resolution | 240 × 160 Pixels |
| Compatibility | Altivar Drives |
| Accessory Requirement | VW3A1104Rxx Remote-Mount Cordset (Sold Separately) |
| Function | Remote HMI / Drive Control and Configuration |
Information About VW3A1101
The VW3A1101 is a Schneider Electric graphic terminal designed for remote mounting and operation of Altivar drive systems within industrial environments. As part of the VW3A11 series, it enables users to position the Human-Machine Interface outside the drive enclosure, improving accessibility for configuration and monitoring. The terminal operates across an extended temperature range, making it suitable for machinery panels exposed to variable ambient conditions. With digital connectivity and support for multiple configuration file storage, it streamlines commissioning, adjustment, and diagnostics for variable frequency drive applications.
Key Features:
- Remote HMI Capability: Designed to relocate the Altivar drive interface to a panel door or accessible surface, enabling operators to adjust parameters without opening enclosures.
- High-Visibility Display: Features a 240×160 pixel graphical screen that provides detailed parameter views, status readings, and drive diagnostics for improved situational awareness.
- Rugged IP54 Protection: Resistant to dust and water splashes, ensuring dependable operation in industrial areas where environmental exposure is common.
- Digital Input/Output Flexibility: Equipped with 8 digital inputs and 8 digital outputs to support expanded control functions and integration with auxiliary equipment.
- Wide Operating Temperature Range: Performs reliably between −15 °C and 50 °C, suitable for control cabinets exposed to varying ambient conditions.
- Support for Configuration Storage: Allows saving and downloading multiple configuration files, enabling fast drive setup, replication, and parameter recovery.
- DIN Rail Mounting: Provides simplified installation in control panels and supports standardized industrial mounting practices.
- Altivar Series Compatibility: Fully compatible with Altivar drives, ensuring consistent communication, parameter access, and drive management functions.
The VW3A1101 delivers the reliability and precision required for remote visualization and control within Altivar-driven industrial automation systems.
