VW3A1111 | Schneider Electric | Graphic display terminal

Description

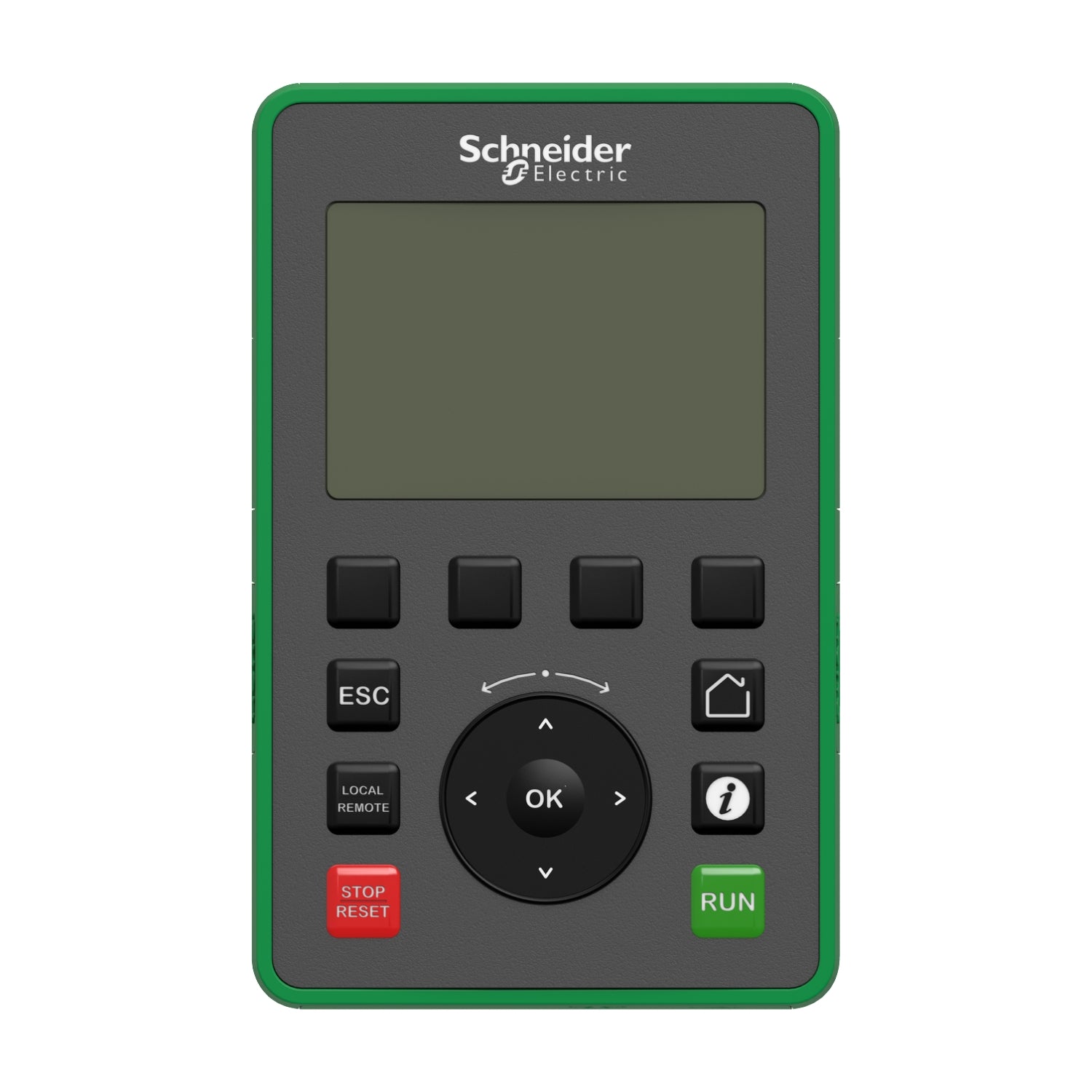

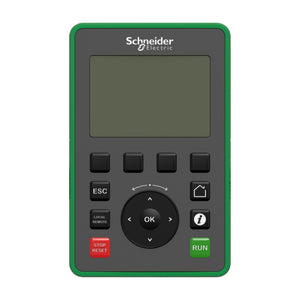

The VW3A1111 is a graphic display terminal designed for use with variable speed drives from the Altivar range. Serving as a dialogue option for the variable speed drive, this terminal features a protection index of IP65, ensuring resistance against dust and water ingress.

Compatible with variable speed drives, the terminal can be connected and mounted directly on the front of the drive or on an enclosure door using a remote mounting accessory. It also supports connection to a PC for file exchange and can be integrated with several drives in multidrop mode.

Operating within a temperature range of up to 50°C, the terminal offers a pixel resolution of 240 x 160 pixels and provides 8 lines of display. Weighing 200g, it boasts 24 integrated languages, covering a majority of countries worldwide, with the capability to add additional languages.

The terminal's functionality includes control, adjustment, and configuration of the drive, as well as displaying current motor values, input/output values, and other relevant information. It also allows for the saving and downloading of configurations, with the ability to store multiple configurations in its 16MB memory.

Technical Specifications

Information About VW3A1111

The VW3A1111 is a graphic display terminal designed for use with variable speed drives within the Altivar range. Featuring a resolution of 240 x 160 pixels, it offers clear and detailed visual information for drive operation. With an IP65 protection rating, it ensures resistance to dust and water ingress, making it suitable for various industrial environments.

This terminal serves as a dialogue interface for the variable speed drive, facilitating interaction and configuration. It can be seamlessly integrated into the drive system, mounted either on the front of the drive unit or on an enclosure door with the use of a remote mounting accessory. Additionally, it supports connection to a PC for file exchange and can be linked to multiple drives in multidrop mode, enhancing versatility and scalability.

Operating within a temperature range of -15 to 50°C, the VW3A1111 remains reliable and functional even in demanding conditions. Weighing 200g, it is lightweight and easy to handle during installation and maintenance procedures.

Equipped with a backlit LCD screen in white and red, this display terminal offers eight lines of display, enabling users to monitor and control various parameters of the drive system effectively. It provides support for 24 integrated languages, covering a wide range of global regions, with the option to add additional languages as needed.

The primary functions of the VW3A1111 include controlling, adjusting, and configuring the drive system. It enables users to view real-time motor data, input/output values, and other relevant information. Additionally, it facilitates the saving and downloading of configurations, allowing users to store multiple setups in the 16MB memory.

For enhanced installation flexibility, a remote mounting kit is available separately, designed specifically for mounting on enclosure doors with an IP65 degree of protection. This accessory ensures convenient and secure installation, complementing the rugged design of the display terminal.
