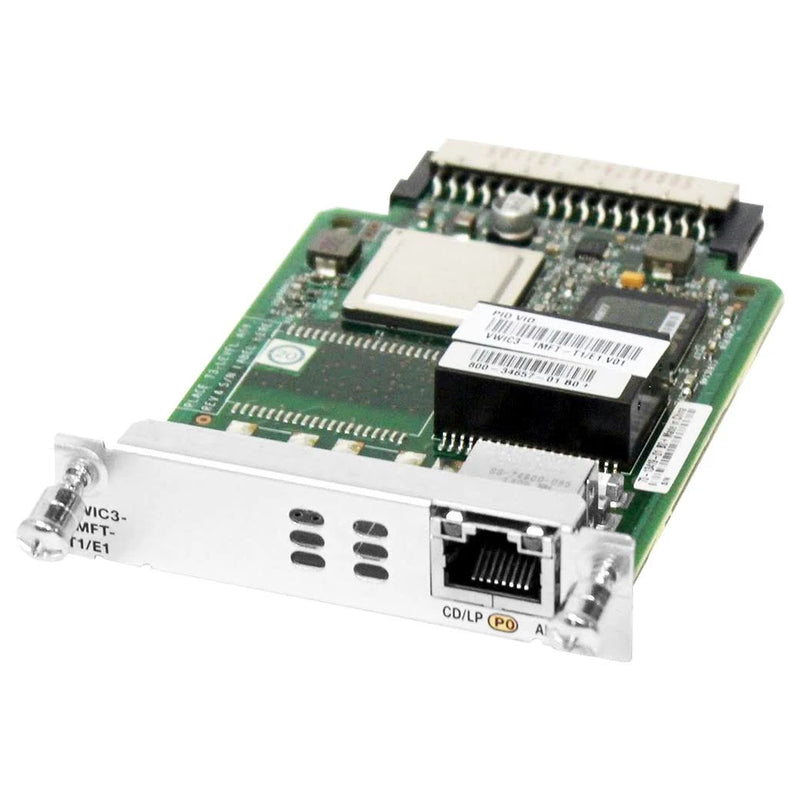

VWIC3-1MFT-T1/E1 | Cisco Voice/WAN Card
- Regular price
- $79.00
- Sale price
- $79.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: VWIC3-1MFT-T1/E1
Description
The Cisco VWIC3-1MFT-T1/E1 is a single-port, multiflex Voice/WAN interface card that supports T1 or E1 connectivity for both voice and data applications.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category | PLCs/Machine Control |
| Part Number | VWIC3-1MFT-T1/E1 |
| Subcatecory |
PC Board PLC/Add-On Board
|
|
Device Type
|
Interface module |
| Form Factor |
1-Port T1/E1 Multiflex Trunk Voice/WAN Interface Card
|
| Number of Ports | 1 |
| Serial Data | 2 total 2 per port |
| Voice CAS | 24 total (T1) 31 total (E1) 1 per timeslot |
| PRI | 1 total 1 per port |
| Drop & Insert | 24 total (T1) 31 total (E1) 1 per timeslot |
| Weight | 0.40 lbs |
Information About VWIC3-1MFT-T1/E1
The Cisco VWIC3-1MFT-T1/E1 is a single-port, third-generation Multiflex Voice/WAN Interface Card designed to provide T1 or E1 connectivity for both voice and data applications. Supporting flexible configuration for either voice trunking or WAN access, this card is ideal for branch offices or remote sites that require converged voice and data services over a single interface. It is compatible with Cisco Integrated Services Routers (ISRs) and enables dynamic switching between data (PPP, HDLC, Frame Relay) and voice (TDM, VoIP) functions.
Key Features:
- Type: Multiflex Voice/WAN Interface Card (VWIC)
- Series: Cisco VWIC3 (Third Generation)
- Category: Network Interface Modules
- Subcategory: T1/E1 Voice and Data Interface
- Functionality: Provides a configurable single-port T1/E1 interface for integrated voice, data, and WAN services
- Port Count: 1 x RJ-48 T1/E1 port
- Interface Type: T1 (1.544 Mbps) or E1 (2.048 Mbps), user-selectable
- Dynamic Port Switching: Yes (between voice and data applications)
- Clocking Options: Internal, network, loop timing
- Software Requirements: Supported in Cisco IOS® Software with appropriate feature sets
- Form Factor: Modular WAN Interface Card (for ISR slot)
- Hot-Swappable: Yes
- Standards Compliance: T1/E1, ISDN PRI, ITU G.703, G.704, ANSI T1.403
- Operating Temperature Range: 0 °C to +40 °C (32 °F to 104 °F)
- Weight: Approximately 0.5 lbs (0.23 kg)
- Construction: Compact, durable design for secure router chassis installation
The Cisco VWIC3-1MFT-T1/E1 is an essential interface module for organizations needing a cost-effective and flexible way to integrate voice and data over a single WAN link. It simplifies infrastructure while supporting dynamic, high-quality communication services in enterprise branch and service provider networks.
Description
The Cisco VWIC3-1MFT-T1/E1 is a single-port, multiflex Voice/WAN interface card that supports T1 or E1 connectivity for both voice and data applications.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category | PLCs/Machine Control |
| Part Number | VWIC3-1MFT-T1/E1 |
| Subcatecory |
PC Board PLC/Add-On Board
|
|
Device Type
|
Interface module |
| Form Factor |
1-Port T1/E1 Multiflex Trunk Voice/WAN Interface Card
|
| Number of Ports | 1 |
| Serial Data | 2 total 2 per port |
| Voice CAS | 24 total (T1) 31 total (E1) 1 per timeslot |
| PRI | 1 total 1 per port |
| Drop & Insert | 24 total (T1) 31 total (E1) 1 per timeslot |
| Weight | 0.40 lbs |
Information About VWIC3-1MFT-T1/E1
The Cisco VWIC3-1MFT-T1/E1 is a single-port, third-generation Multiflex Voice/WAN Interface Card designed to provide T1 or E1 connectivity for both voice and data applications. Supporting flexible configuration for either voice trunking or WAN access, this card is ideal for branch offices or remote sites that require converged voice and data services over a single interface. It is compatible with Cisco Integrated Services Routers (ISRs) and enables dynamic switching between data (PPP, HDLC, Frame Relay) and voice (TDM, VoIP) functions.
Key Features:
- Type: Multiflex Voice/WAN Interface Card (VWIC)
- Series: Cisco VWIC3 (Third Generation)
- Category: Network Interface Modules
- Subcategory: T1/E1 Voice and Data Interface
- Functionality: Provides a configurable single-port T1/E1 interface for integrated voice, data, and WAN services
- Port Count: 1 x RJ-48 T1/E1 port
- Interface Type: T1 (1.544 Mbps) or E1 (2.048 Mbps), user-selectable
- Dynamic Port Switching: Yes (between voice and data applications)
- Clocking Options: Internal, network, loop timing
- Software Requirements: Supported in Cisco IOS® Software with appropriate feature sets
- Form Factor: Modular WAN Interface Card (for ISR slot)
- Hot-Swappable: Yes
- Standards Compliance: T1/E1, ISDN PRI, ITU G.703, G.704, ANSI T1.403
- Operating Temperature Range: 0 °C to +40 °C (32 °F to 104 °F)
- Weight: Approximately 0.5 lbs (0.23 kg)
- Construction: Compact, durable design for secure router chassis installation
The Cisco VWIC3-1MFT-T1/E1 is an essential interface module for organizations needing a cost-effective and flexible way to integrate voice and data over a single WAN link. It simplifies infrastructure while supporting dynamic, high-quality communication services in enterprise branch and service provider networks.
