W136A-1045 | Honeywell Combination AC/DC Voltmeter and DC Microammeter
- Regular price
- $422.00
- Sale price
- $422.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: W136A-1045
Description
The Honeywell W136A-1045 is a portable analog test meter designed for use with flame safeguard controls, combining AC/DC voltmeter functionality with a sensitive DC microammeter for precise signal diagnostics. Its durable housing and included accessories make it ideal for field technicians and combustion service professionals.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Controls & Indicators
|
| Part Number | W136A-1045 |
| Subcategory | Panel Meter |
| AC Voltage Range | 0–300 VAC |
| DC Voltage Range | 0–150 VDC |
| DC Microamp Range |
0–25 µA |
| Amperage Rating | 25 mA |
| Protective Circuit | Yes |
| Display Type | Analog (needle gauge) |
| Accessories Included | Alligator clips, 196146 cable connector |
| Carrying Case | Yes, with compartments |
| Dimensions (H×W×D) | 8-1/2 in × 6 in × 2-1/3 in |
| Weight | 1.35 lbs |
Information About W136A-1045

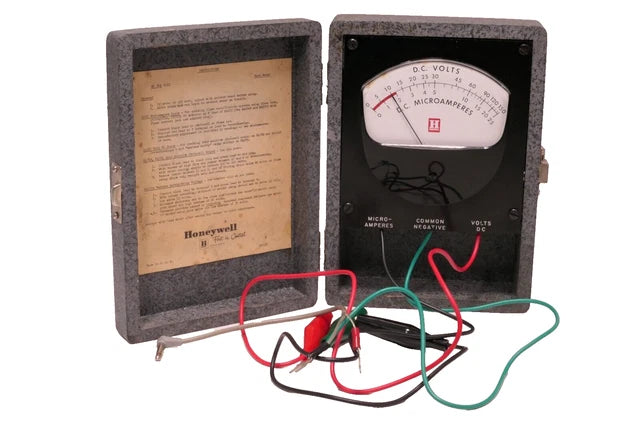

The W136A-1045 provides three-in-one measurement functionality, capable of reading 0–300 VAC, 0–150 VDC, and 0–25 µA DC on separate scales. It is specifically designed to check flame signal strength in combustion control systems and features an integrated protective circuit for meter safety. The unit is housed in a compact, black carrying case with compartments for cables and accessories. Each kit includes two push-on alligator clips and a 196146 cable connector to interface directly with flame safeguard flame current jacks. With a rugged design and essential diagnostic tools, this instrument supports accurate field testing of flame signals and voltages.
Key Features:
- AC/DC Voltage Measurement: Reads up to 300 VAC and 150 VDC, enabling diagnostics across a wide range of control systems.
- DC Microammeter Functionality: Includes a 0–25 µA scale for accurate flame signal strength verification.
- Protective Circuitry: Built-in circuit protection enhances instrument reliability during live system testing.
- Dedicated Flame Signal Interface: Includes 196146 cable connector for direct plug-in with flame current jacks on Honeywell flame safeguard controls.
- Alligator Clip Probes Included: Comes with push-on clips for hands-free voltage or current measurements.
- Integrated Carrying Case: Compact black case holds meter, test leads, and accessories for organized field use.
- Analog Display: Large, easy-to-read analog needle gauge enables fast response visibility for changing signal conditions.
- Industrial Application: Purpose-built for burner control technicians, service engineers, and HVAC professionals.
- Compact Dimensions: Measures 8-1/2 in H × 6 in W × 2-1/3 in D, ideal for field portability.
- Honeywell Quality: Built to meet Honeywell’s standards for reliability, safety, and measurement precision.
The W136A-1045 offers a reliable, all-in-one solution for field testing voltages and flame current in combustion safety systems.
