W200M1CFC | Eaton Magnetic Motor Starter
- Regular price
- $2,799.00
- Sale price
- $2,799.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: W200M1CFC
Description

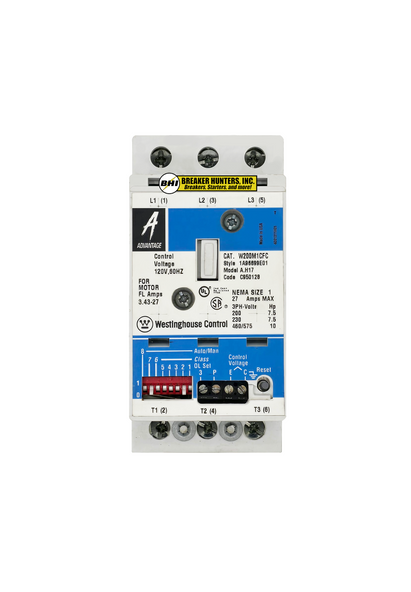

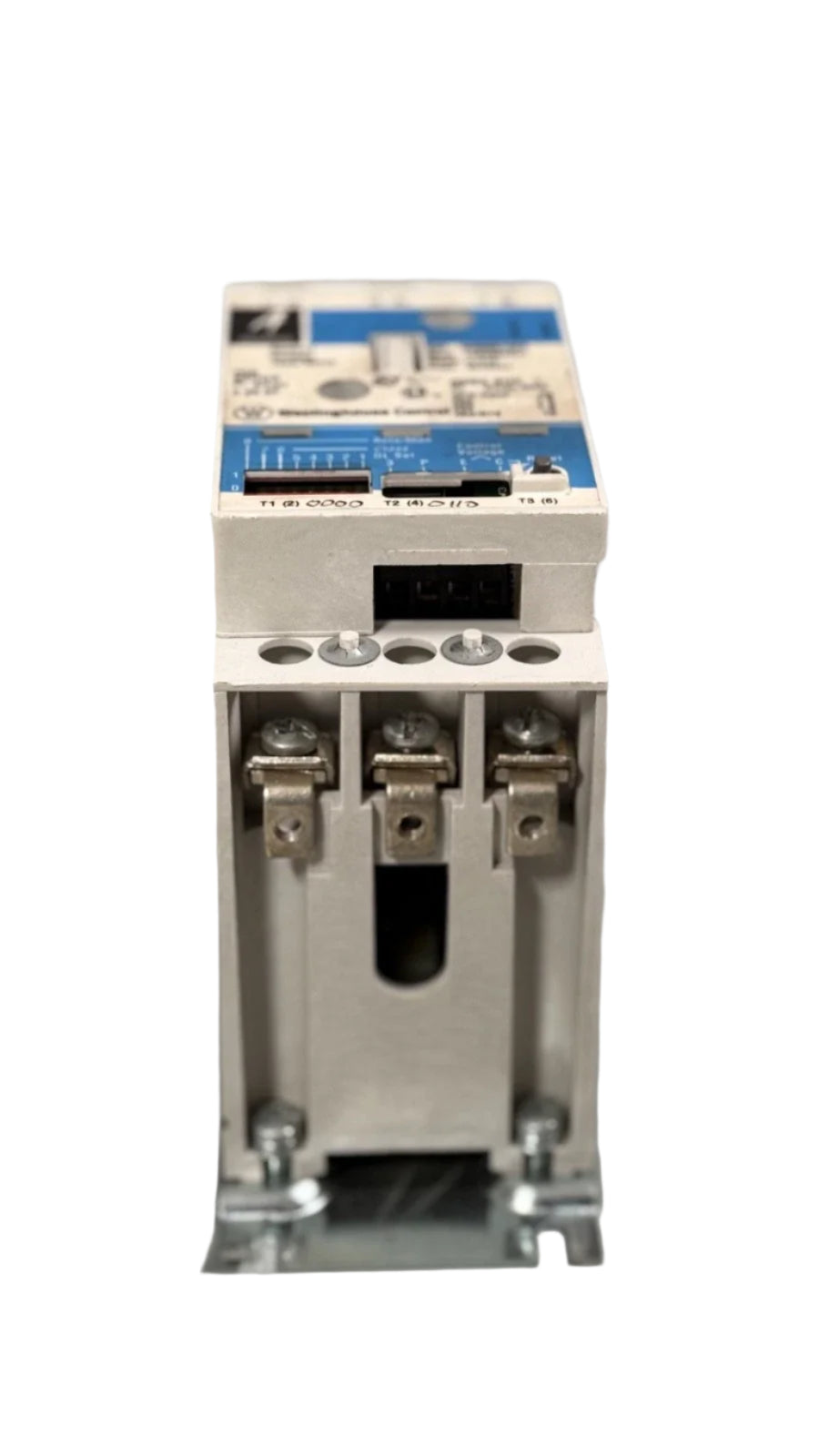

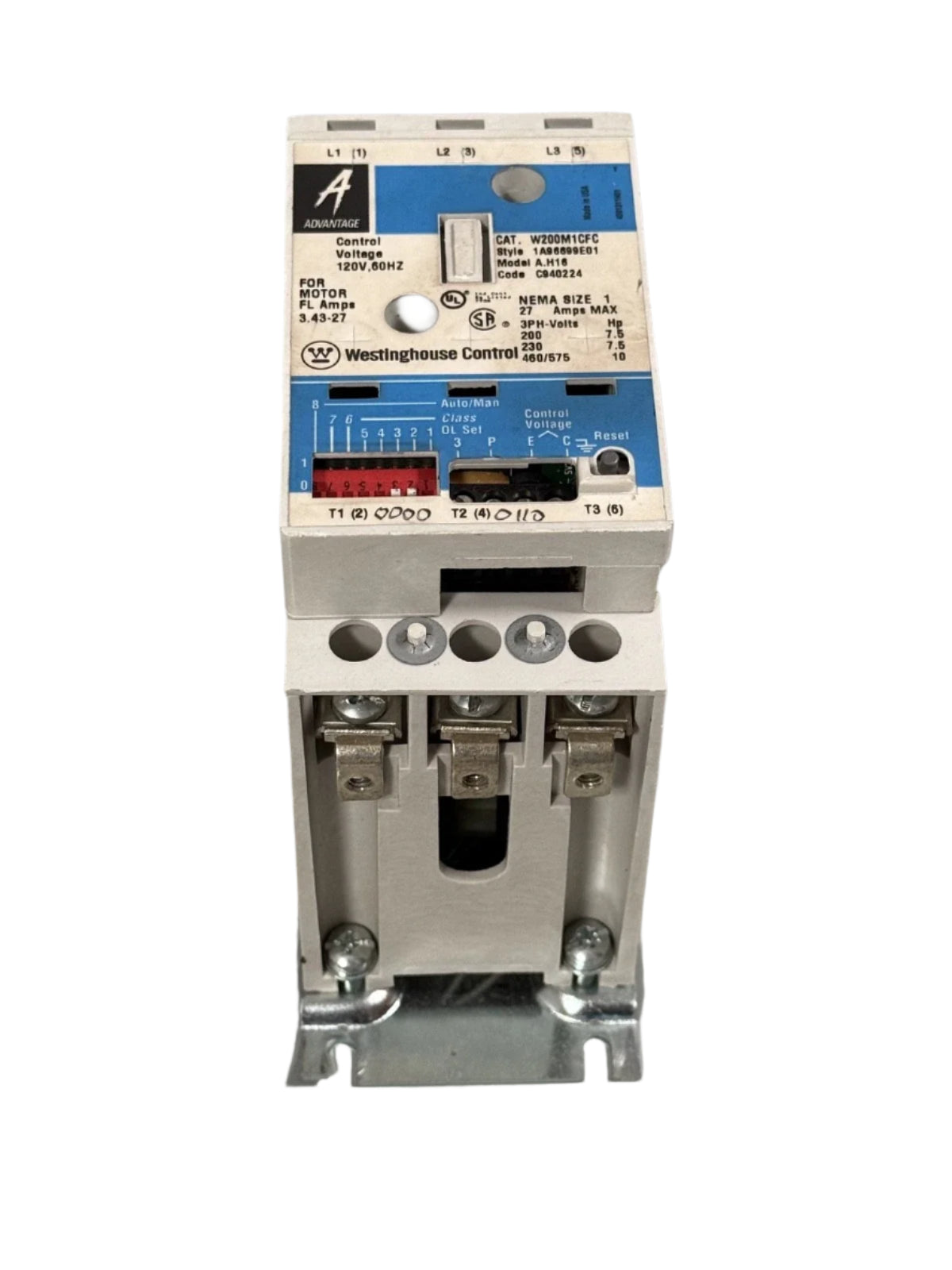

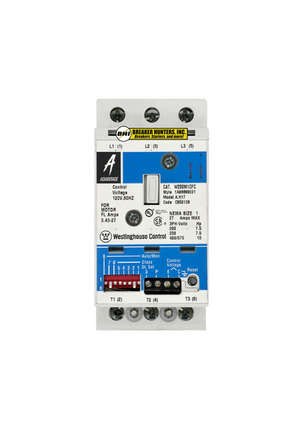

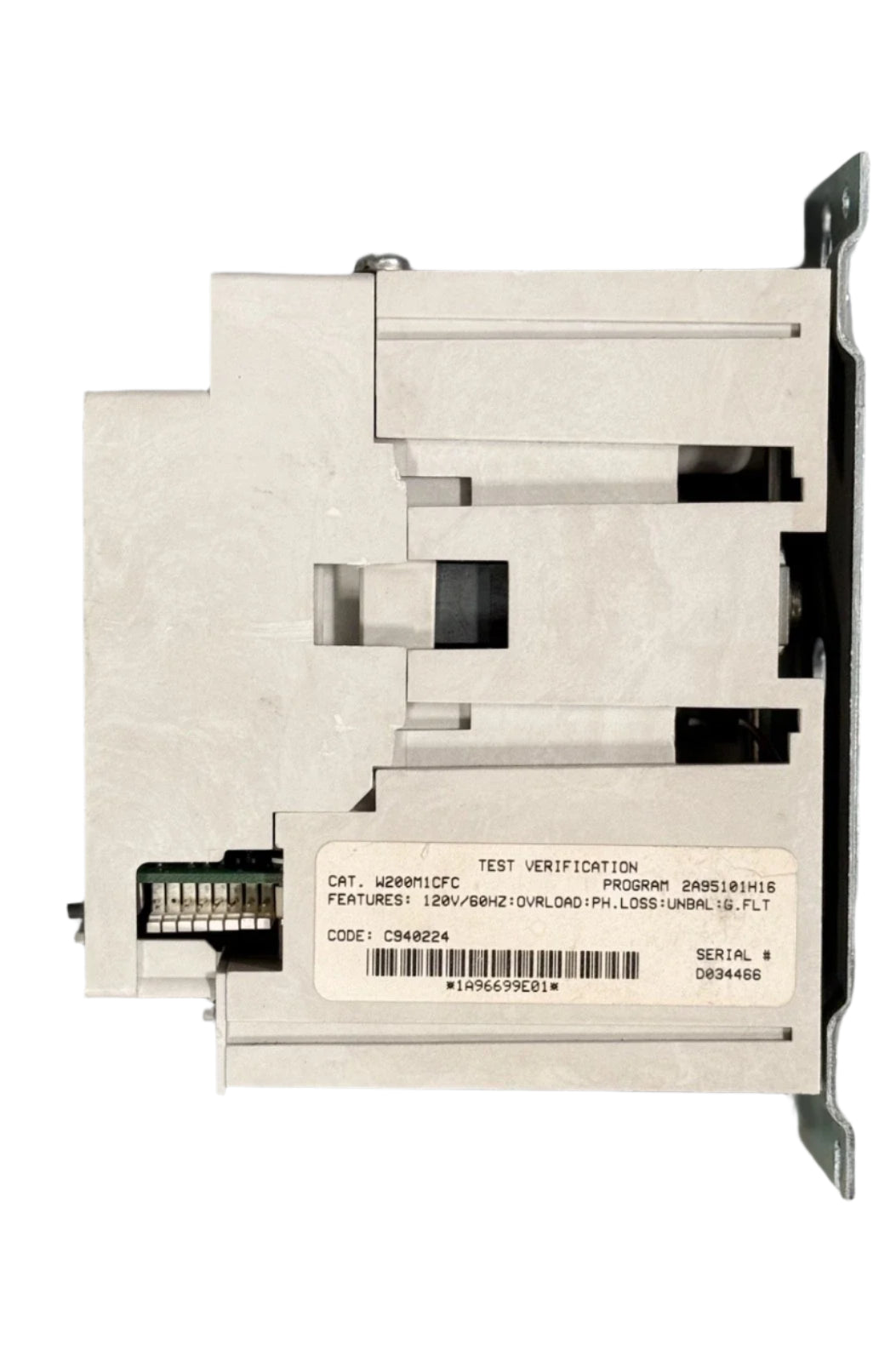

The Eaton W200M1CFC is a NEMA Size 1, 3-phase magnetic motor starter from Eaton's Advantage Series, designed for reliable motor control and protection in industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Eaton |
| Category |
Contactors & Starters
|
| Part Number | W200M1CFC |
| Subcategory | Starter |
| Amperage | 27 Amps |
|
Coil Voltage |
120VAC |
| Phase | 3 |
| Voltage Max | 600 V |
| Nema Size | 1 |
| Coil Type | Magnetic |
|
Reversing or Non-Reversing |
Non-Reversing |
|
Maximum Ratings |
7 1/2 @ 200/230 Motor Volts AC, 10 @ 460/575 Motor Volts AC |
| Poles | 3 Poles |
| Overload Relay |
Solid State
|
| Weight |
5.00 lbs
|
Information About W200M1CFC
The Eaton W200M1CFC is a NEMA Size 1, 3-phase magnetic motor starter from Eaton's Advantage Series, designed for reliable motor control and protection in industrial applications. It features a 120V AC coil and supports full-voltage, non-reversing operation up to 600V AC. With a 27A current rating, it accommodates motors up to 7.5 HP at 200/230V and 10 HP at 460/575V. The integrated solid-state electronic overload relay offers adjustable trip classes (10, 20, or 30) and provides protection against overload, phase loss, phase imbalance, and ground faults. The starter supports both automatic and manual reset modes and is designed for open panel mounting. Its compact dimensions (5.37" H × 6.18" W × 9.18" D) and 3.1 lb weight facilitate easy integration into control systems.
Key Features:
- Current Rating: 27 Amps
- Voltage Rating: Up to 600V AC
- Horsepower Ratings:
7.5 HP at 200/230V
10 HP at 460/575V - Coil Voltage: 120V AC, 60 Hz
- Trip Classes: Selectable Class 10, 20, or 30
- Protection Features:
Overload Protection
Phase Loss Detection
Phase Imbalance Detection
Ground Fault Sensing - Reset Options: Manual and Automatic
- Mounting Style: Open Panel Mount
- Dimensions: 5.37" H × 6.18" W × 9.18" D
- Weight: 3.1 lbs
- Certifications: UL Listed, ABS Approved
The W200M1CFC offers robust motor protection and control, making it suitable for various industrial applications requiring dependable performance.
