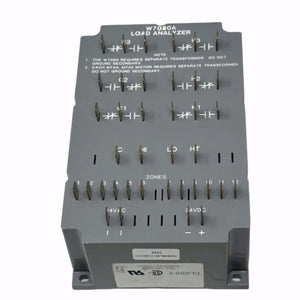

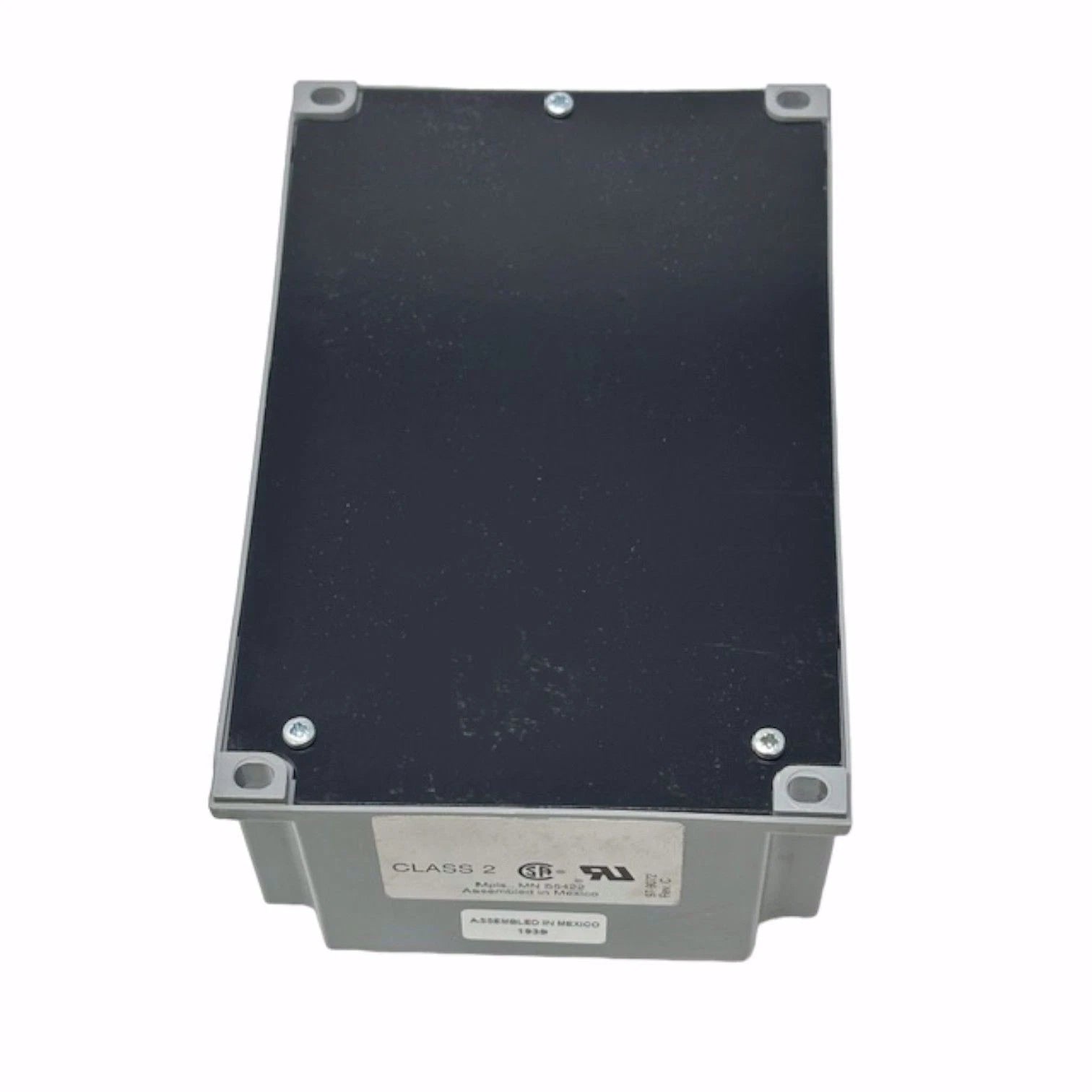

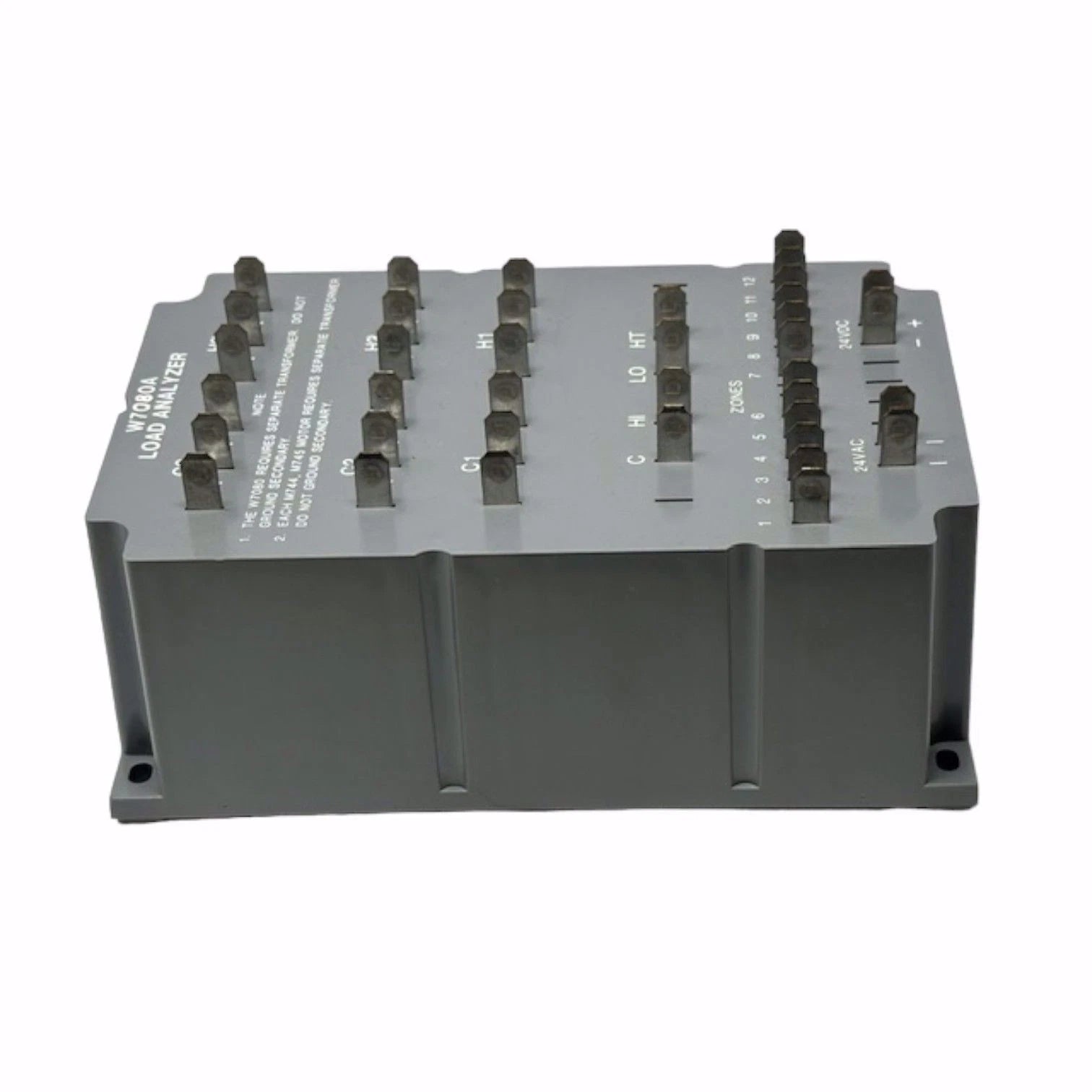

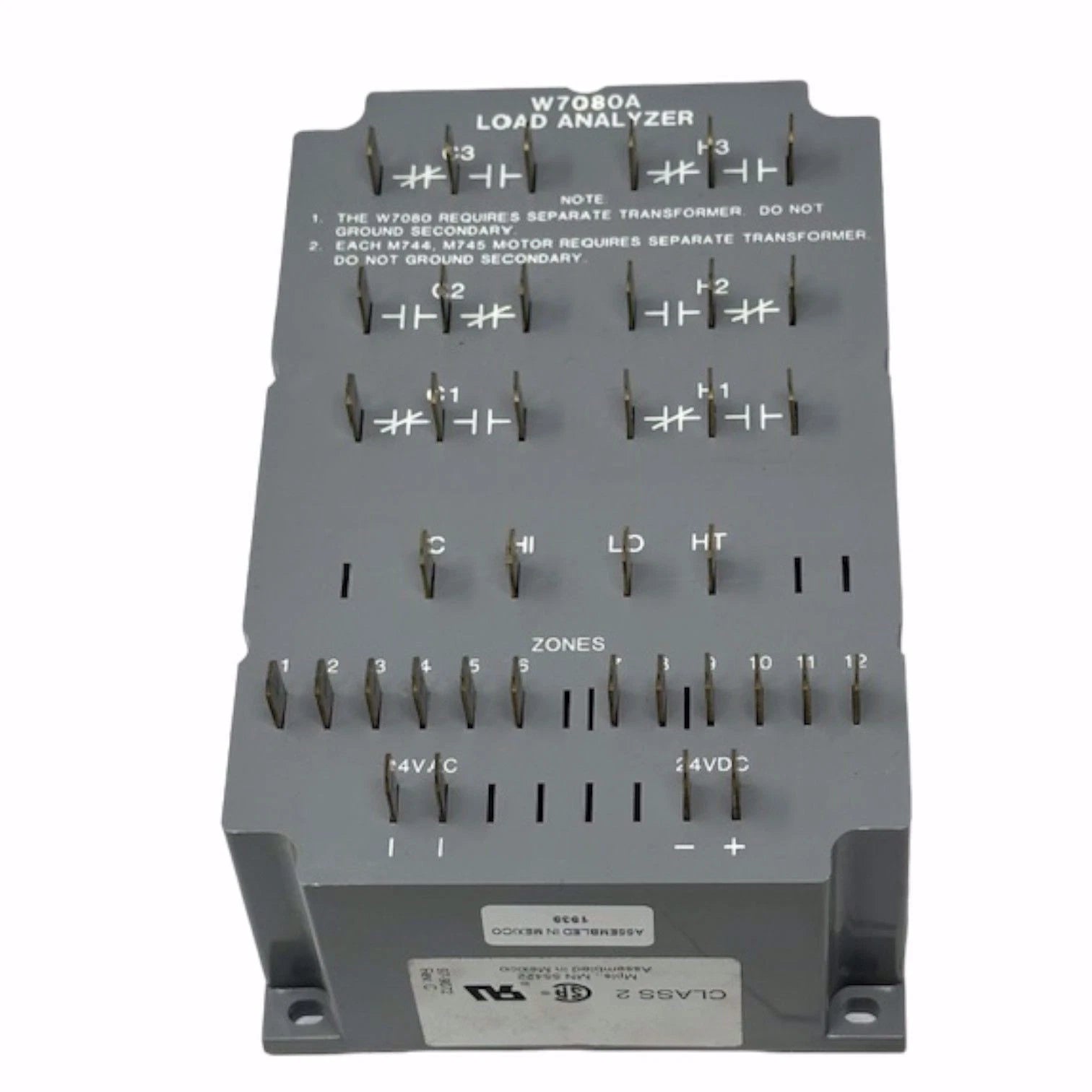

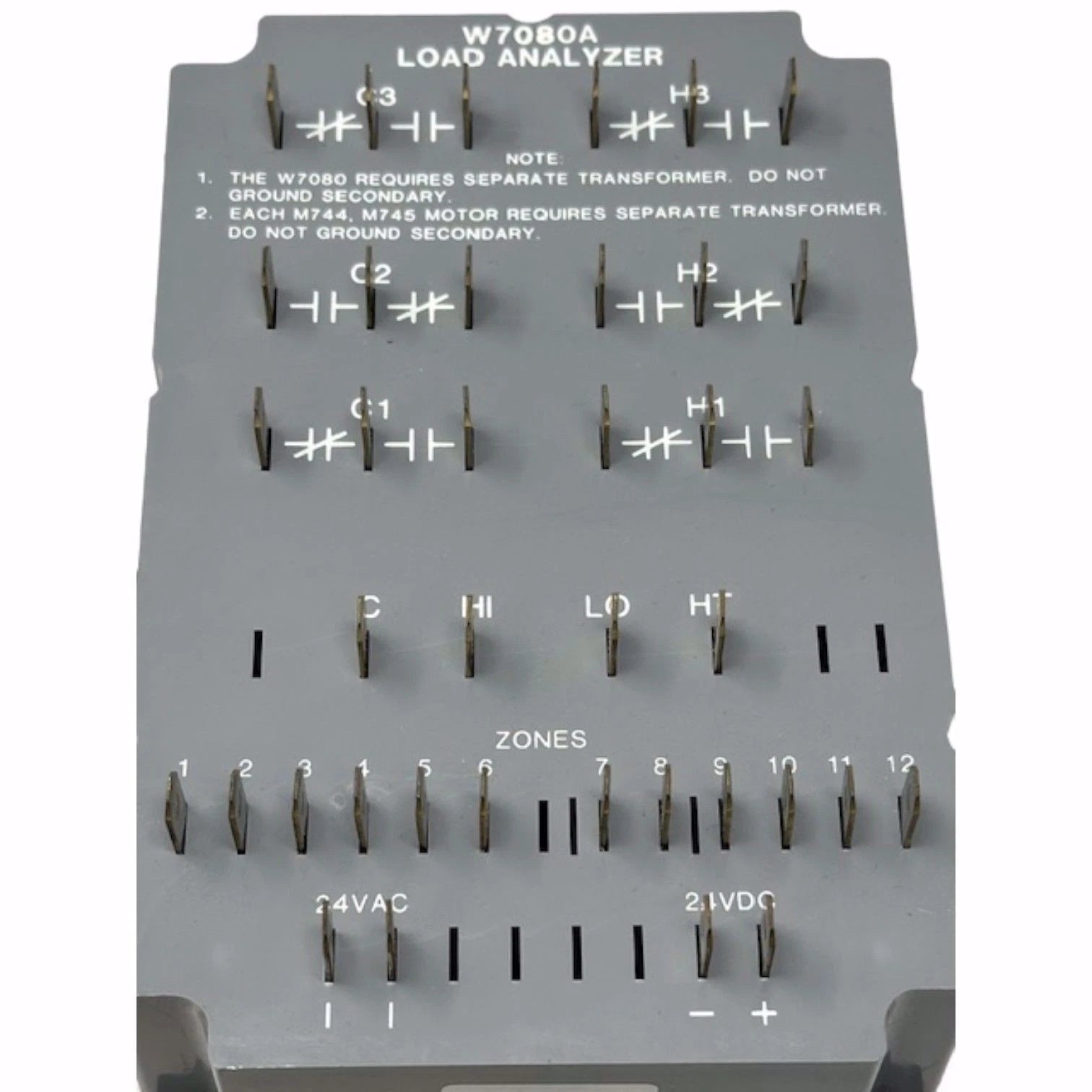

W7080A1016 | Honeywell Multizone HVAC Load Analyzer 3 Heat / 3 Cool
- Regular price
- $3,799.05
- Sale price
- $3,799.05
- Regular price
-
Couldn't load pickup availability
Product Description P/N: W7080A1016
Description
The Honeywell W7080A1016 is a load analyzer designed for multizone HVAC systems, providing coordinated control of heating, cooling, and economizer operation. It manages multiple stages of heating and cooling while responding to zone demand signals to optimize system performance. This controller is intended for packaged rooftop units, furnaces, and split systems operating on 24 VDC control power.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC Controls |
| Part Number | W7080A1016 |
| Subcategory | Load Analyzers |
| Application Size | 3 Heat / 3 Cool |
| Control Voltage | 24 VDC |
| Frequency | 50 / 60 Hz |
| Compatible Thermostats | T7080 zone thermostat/transmitters |
| Max. Zones Supported | 12 |
| Electrical Connections | 1/4 in. quick-connect male terminals |
| Contact Ratings (NO) | 240 VA inrush, 60 VA running @ 24 VAC |
| Contact Ratings (NC) | 75 VA inrush, 30 VA running @ 24 VAC |
| Operating Temperature | -40 to +65 °C |
| Mounting | Surface mount (4 screws) |
| Dimensions | 159 × 105 × 59 mm |
| Approvals | UL, CSA, ASHRAE 90-75 |
| Weight | Approx. 0.6 kg |
Information About W7080A1016
The W7080A1016 is part of the Honeywell Electronic Dual Setpoint Multizone control system, engineered to analyze and respond to heating and cooling demands from multiple zones. It accepts input from up to twelve compatible zone thermostat/transmitters and selects the highest demand signal for system control. The analyzer supplies protected 24 VDC power to connected thermostats, sensors, and limit controller packages. Designed for maintenance-free operation, it requires no field calibration and supports additional functions such as night setback and cooling shutdown through optional time-clock integration.
Key Features:
- Multizone Load Analyzer: Coordinates heating, cooling, and economizer operation across multiple zones.
- Three-Stage Heating Control: Supports on/off heating stages and modulated heating operation.
- Three-Stage Cooling Control: Manages staged and modulated cooling outputs.
- Economizer Integration: Controls a modulated economizer based on zone demand.
- Multiple Zone Compatibility: Responds to demand signals from up to 12 zone thermostat/transmitters.
- Integrated 24 VDC Power Supply: Provides short-circuit-protected power for connected devices.
- Automatic Power Recovery: Safely switches outputs off during power loss and restores operation on power return.
- No Calibration Required: Factory-configured for immediate installation and operation.
- Time-Clock Support: Enables night setback and cooling shutdown when used with an external time clock.
The W7080A1016 delivers the reliability and precision required for coordinated multizone HVAC load analysis and control.
