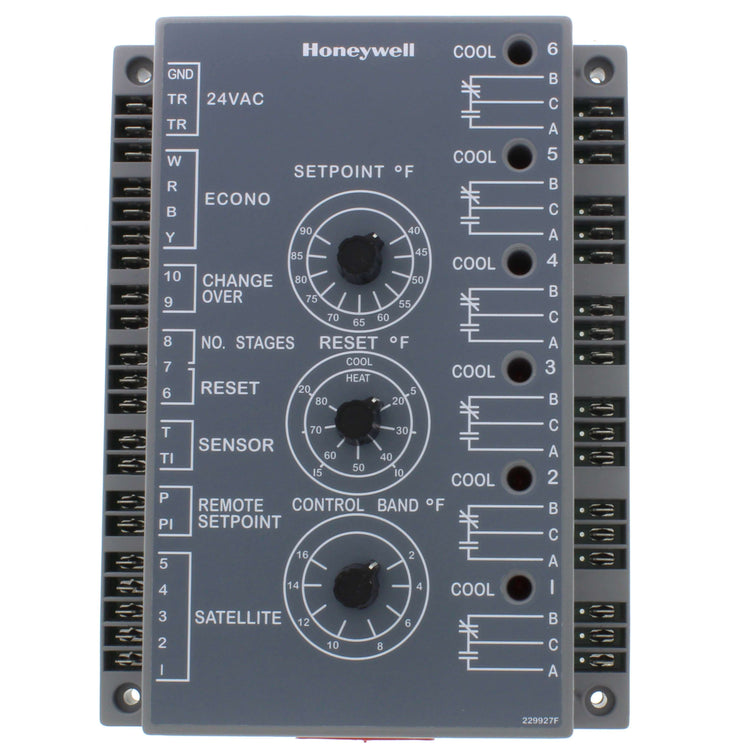

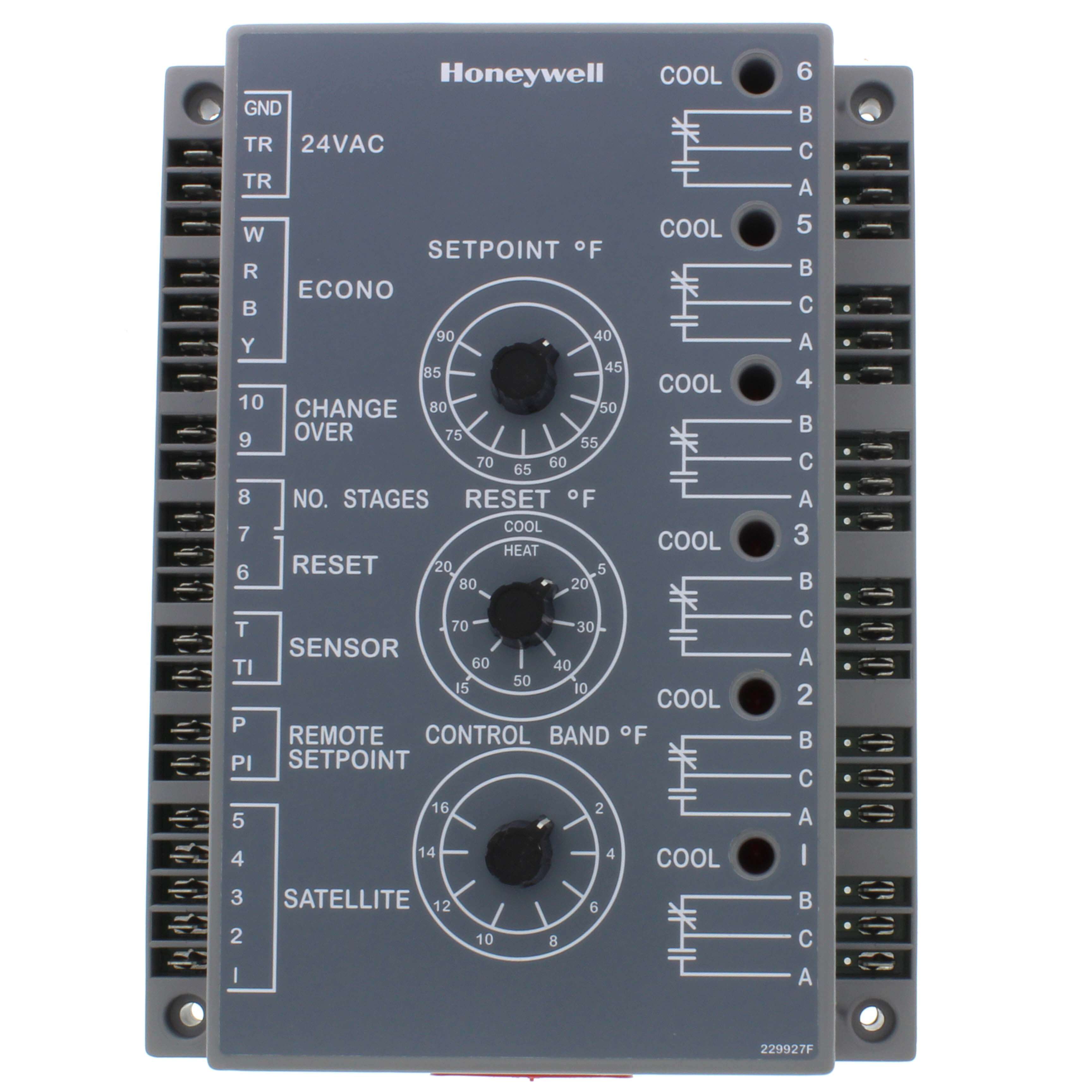

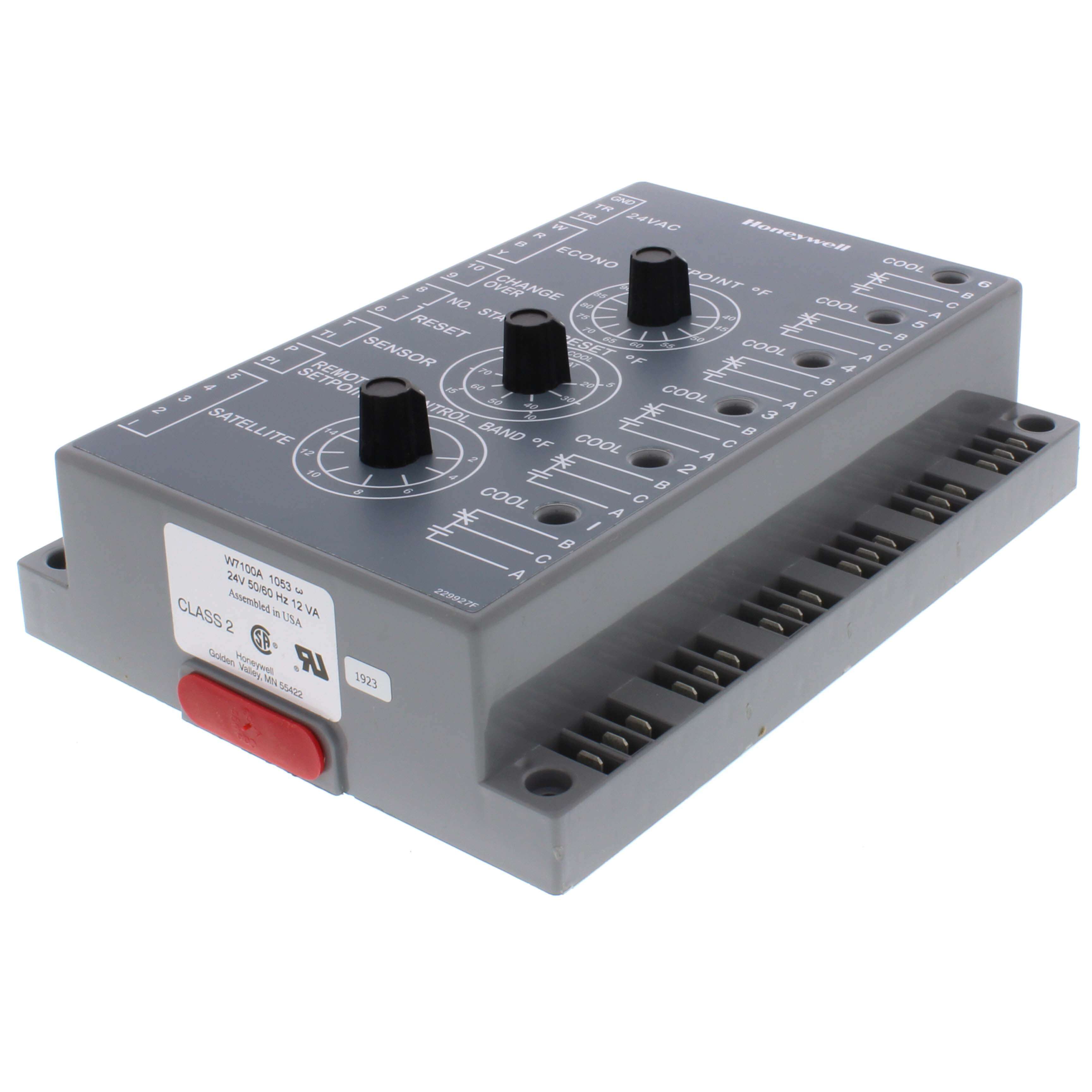

W7100A1053 | Honeywell Temperature Controller Discharge Air
- Regular price
- $4,241.00
- Sale price
- $4,241.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: W7100A1053
Description
The W7100A1053 is a discharge air temperature controller from Honeywell designed to regulate cooling operations in commercial HVAC systems. With a 6-stage control cycle and a temperature range of 40 to 90°F, it offers precise air temperature management for high-efficiency climate control. This model operates on 20–30 VAC and has been succeeded by the T775L2007 and T775S2008 controllers.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Controls & Indicators
|
| Part Number | W7100A1053 |
| Subcategory | Temperature/Process Control |
| Temperature Range | 40–90°F |
| Cooling Stages |
6 |
| Voltage | 20–30 VAC |
| Frequency | 50/60 Hz |
| Heat Output | None |
| Terminal Type | 1/4" Quick Connect |
| Replacement Models | T775L2007, T775S2008 |
| Mounting Style | Surface mount |
| Dimensions | 8-5/8" H × 6-1/2" W × 3" D |
| Weight | 1.93 lbs |
Information About W7100A1053
The W7100A1053 is a multi-stage discharge air temperature controller designed to maintain optimal cooling in HVAC duct systems. It provides up to six stages of cooling control without heating functionality, making it ideal for large-scale or specialized commercial systems. The unit features a quick-connect terminal system, runs on 20–30 VAC at 50/60 Hz, and includes a durable enclosure with clear setpoint adjustments. Its reliable electromechanical design ensures consistent temperature regulation with minimal maintenance.
Key Features:
- 6-Stage Cooling Control: Supports up to six stages of cooling for enhanced precision in large systems.
- Wide Temperature Range: Operates effectively within a 40°F to 90°F setpoint span for various environmental needs.
- Low Voltage Operation: Powered by 20–30 VAC, allowing integration into standard HVAC control systems.
- Quick-Connect Terminals: Simplifies installation and wiring, reducing setup time and error.
- No Heat Output: Specially designed for systems that require only cooling stages.
- Compact Design: Fits easily in equipment panels with an 8-5/8" x 6-1/2" x 3" footprint.
- Legacy Replacement: Directly replaced by the T775L2007 and T775S2008 for advanced functionality.
- Durability: Rugged housing ensures consistent performance in demanding settings.
- Manual Adjustment: Features accessible dial for on-site setpoint configuration.
- Application-Specific Use: Tailored for commercial discharge air applications where fine control is critical.
The W7100A1053 provides accurate multi-stage cooling control and remains a reliable legacy solution for commercial discharge air applications.
