W7754P1000 | Honeywell Controller 230 VAC
- Regular price
- $2,100.00
- Sale price
- $2,100.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: W7754P1000
Description

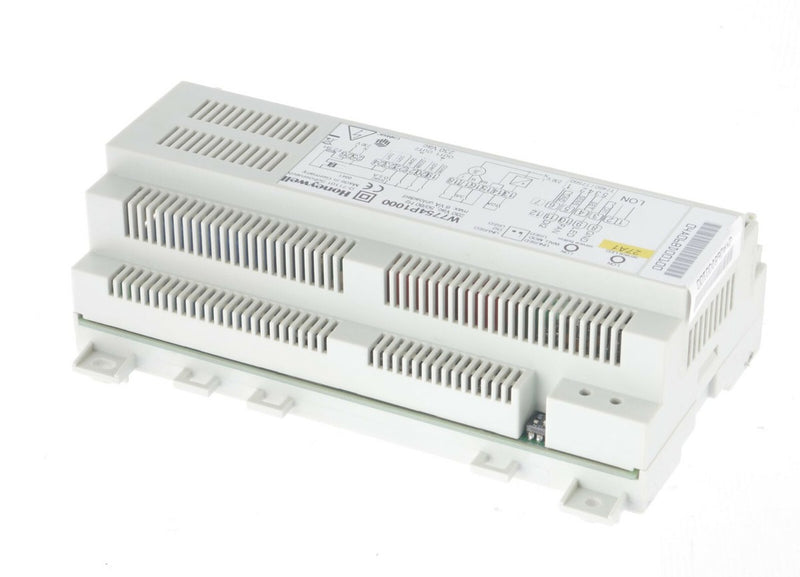

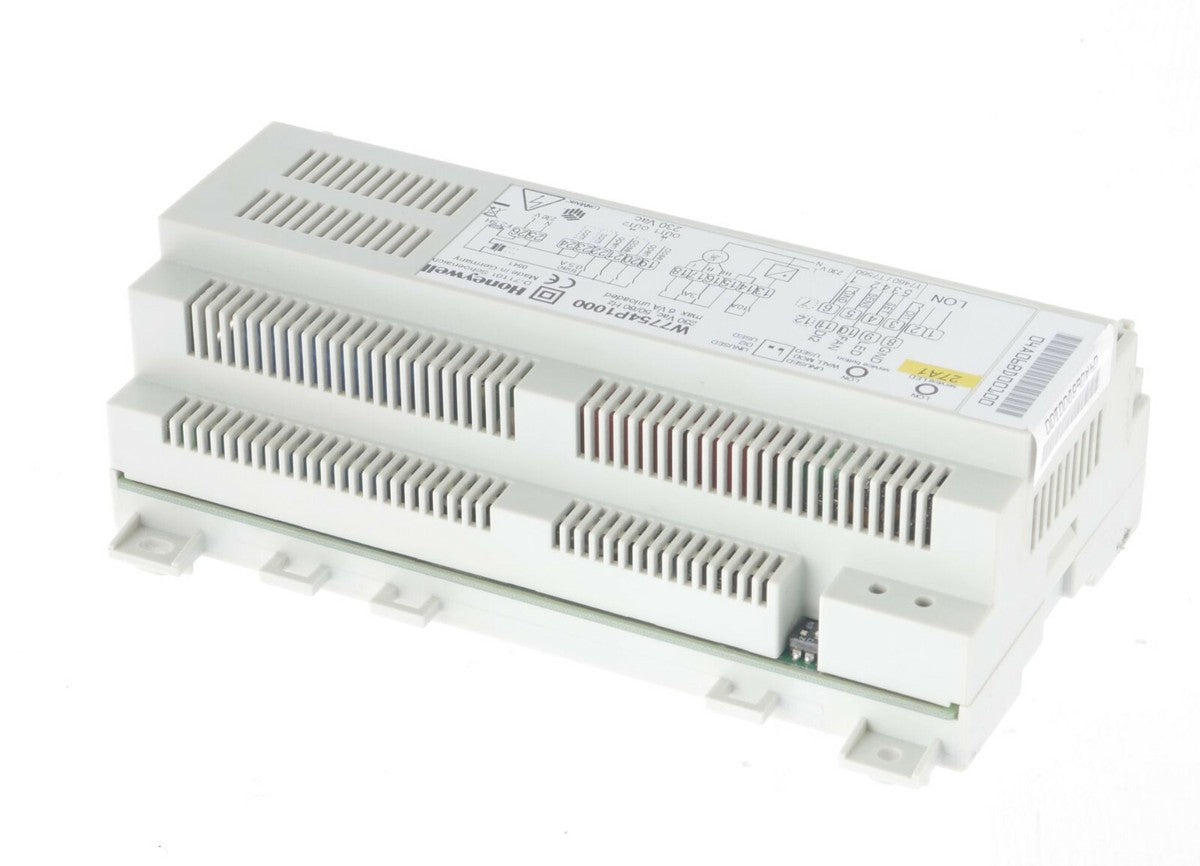

The Honeywell W7754P1000 is a versatile fan coil controller designed for flexible wall, ceiling, or DIN rail installations in HVAC applications. It operates on 230 VAC and supports multiple input/output configurations with built-in control logic.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
HVAC
|
| Part Number | W7754P1000 |
| Subcategory | Fan/Ventilation |
| Series | Excel 10 XL10 |
| Power Supply | 230 VAC |
| Frequency | 50/60 Hz |
| Power Consumption |
6 VA |
| Outputs | 4 Triac outputs, 4 Relays |
| Minimum I/O Configuration | 3 Relays, 1 LED digital output, 2 DI, 2 AI |
| Mounting Type | DIN Rail / Wall / Ceiling |
| Protection Class | IP20/IP30 (with cover) |
| Dimensions (W×L×H) | 110 × 180 × 60 mm (130 mm with cover) |
| Drilling Template Width | 154 mm |
| Mounting Holes | 4 mm (round), 4×7 mm (oval) |
| Material | Plastic enclosure with terminal protection (optional) |
| Weight | 1.10 lbs |
Information About W7754P1000
The W7754P1000 is part of the XL10 controller family and supports 230 VAC at 50/60 Hz with a power draw of 6 VA. This controller features a robust housing (110 × 180 × 60 mm) that conforms to IP20 or IP30 protection ratings depending on terminal cover configuration. It includes four triac outputs and four relays, and is suitable for surface mounting or DIN rail mounting (DIN EN 50022). Mounting can be done using 3.5 mm dowel screws via oval or round holes with cutouts for cable management. The unit provides flexible terminal blocks for simplified connection of digital and analog signals, including inputs and LED outputs.
Key Features:
- 230 VAC Power Supply: Operates at 50/60 Hz with a typical power consumption of 6 VA.
- Multiple Output Options: Equipped with four triac outputs and four relay outputs for flexible HVAC control.
- Compact DIN Mounting Design: Fits standard DIN rails or can be mounted on ceilings and walls.
- Optional IP30 Protection: Terminal cover upgrade provides enhanced ingress protection.
- Integrated I/O Functions: Minimum configuration includes three relays, one LED digital output, two digital inputs, and two analog inputs.
- Versatile Terminal Assignments: Two rows of terminal blocks allow connection to relays, analog/digital inputs, and output devices.
- Mounting Flexibility: Includes round and oval screw holes, with support for both DIN rail and flat-surface mounting.
- Cable Management Ready: Snap-fit terminal protection cover includes cable access tabs for easy wiring.
- Drilling Template Provided: Includes 154 mm wide top-view layout for precise mounting hole placement.
- Excel 10 Series Compatibility: Integrates with Excel 10 control systems and accessories for centralized management.
The W7754P1000 enables multi-point fan coil control with dependable logic and mounting flexibility for modern HVAC configurations.
