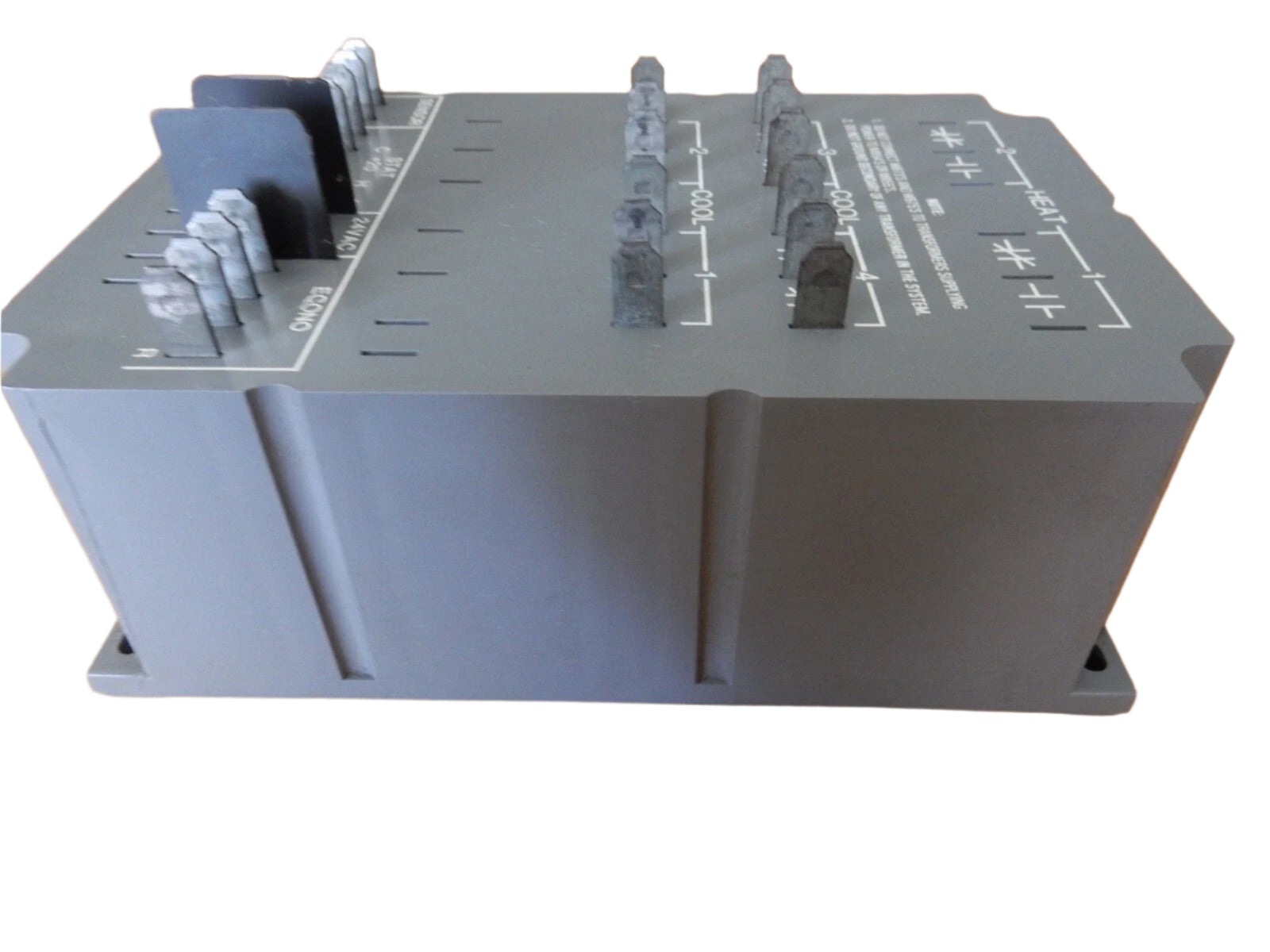

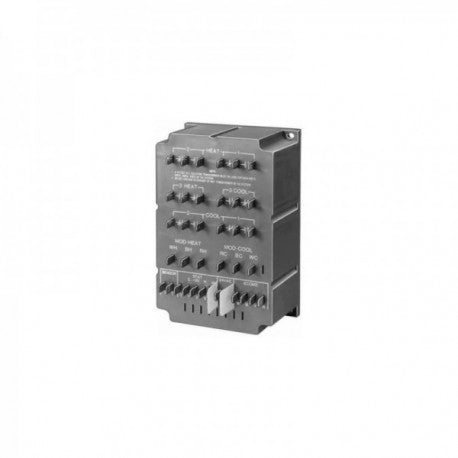

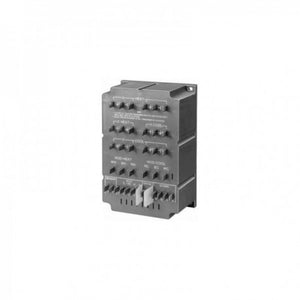

W973E1005 | Honeywell Solid State Logic Panel
- Regular price
- $799.00
- Sale price
- $799.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: W973E1005
Description
The Honeywell W973E1005 is a solid-state logic panel designed for single-zone HVAC systems, specifically managing up to four stages of cooling. It integrates seamlessly with Honeywell's T7067 thermostats and Q667 subbases, offering precise control over heating, cooling, and economizer operations in commercial air conditioning and heat pump equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
HVAC
|
| Part Number | W973E1005 |
| Subcategory | HVAC Control System Board |
| Application | Packaged RTU; Furnace; Heat Pump Systems; Split System |
| Frequency | 50 Hz; 60 Hz |
| Application Size | 0 Heat / 4 Cool |
| Output Type | Staged On/Off |
| Contact Ratings | NO 240 VA inrush @ 24 Vac, 60 VA running @ 24 Vac; NC 75 VA inrush @ 24 Vac, 30 VA running @ 24 Vac |
| Power Consumption | 8 VA |
| Voltage | 24 VAC |
| Operating Temperature Range | -40°F to +150°F; -40°C to +66°C |
| Shipping and Storage Temperature Range | -30°F to +150°F; -34°C to +65°C |
| Weight | 1.00 lbs |
Information About W973E1005
The Honeywell W973E1005 is a solid-state logic panel designed for single-zone, multi-stage air conditioning and heat pump systems. It effectively manages up to four stages of cooling without any heating stages, making it ideal for commercial HVAC applications where precise cooling control is essential.
Key Features:
- Voltage: 24 Vac
- Power Consumption: 8 VA
- Contact Ratings:
- Normally Open (NO): 240 VA inrush @ 24 Vac, 60 VA running @ 24 Vac
- Normally Closed (NC): 75 VA inrush @ 24 Vac, 30 VA running @ 24 Vac

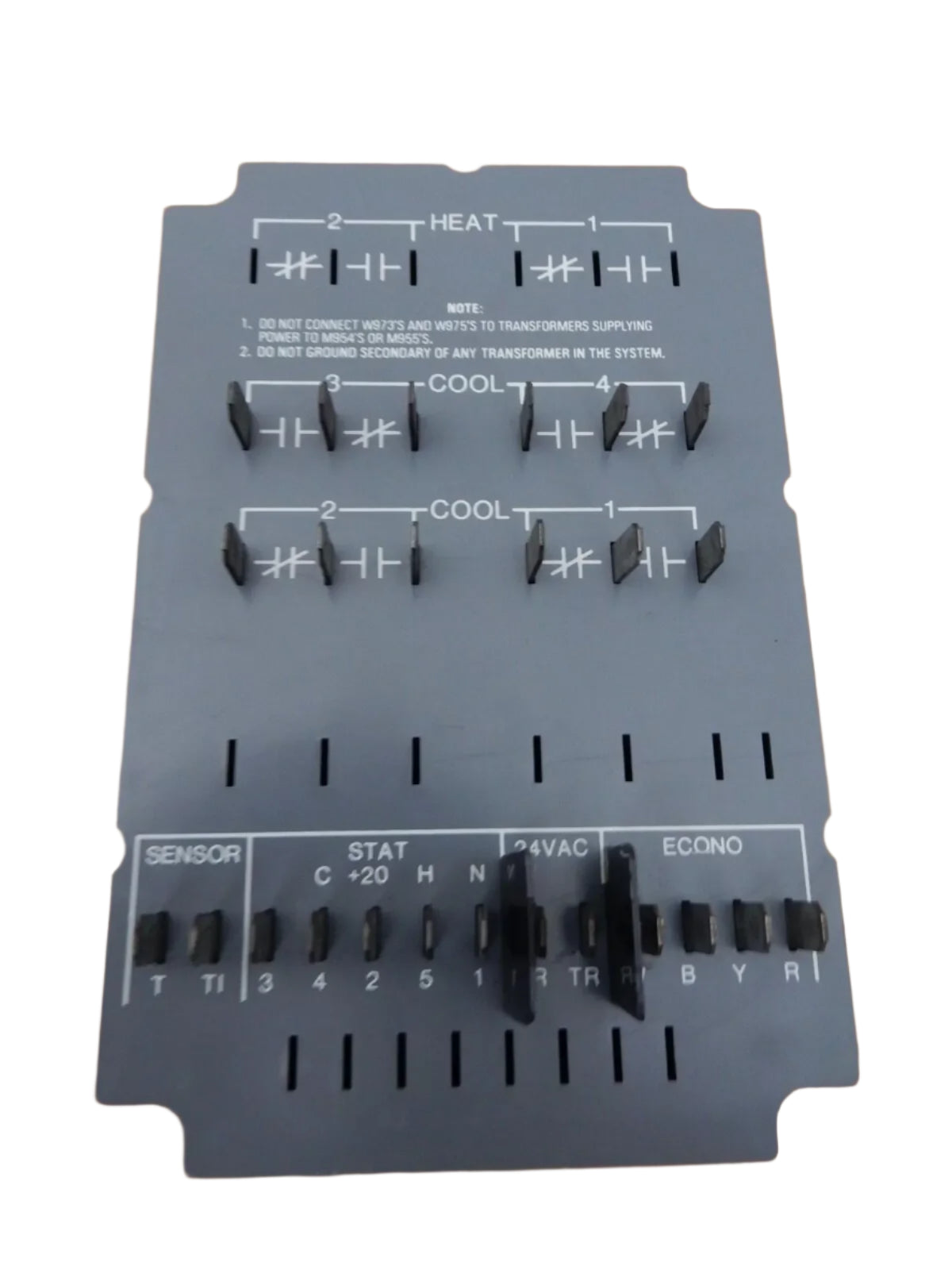

supplyhouse.com - Electrical Connections: 1/4 inch quick-connect male terminals
supplyhouse.com - Operating Temperature Range: -40°F to +150°F (-40°C to +65.5°C)
supplyhouse.com - Dimensions: 6-1/4 inches high x 4-1/8 inches wide x 2-5/16 inches deep
supplyhouse.com - Shipping Temperature Range: -30°F to +150°F (-34.4°C to +65.5°C)
The Honeywell W973E1005 logic panel offers a reliable solution for managing multi-stage cooling in commercial HVAC systems. Its integration with economizer controls and compatibility with specific Honeywell thermostats and subbases make it a versatile component for precise temperature regulation.
