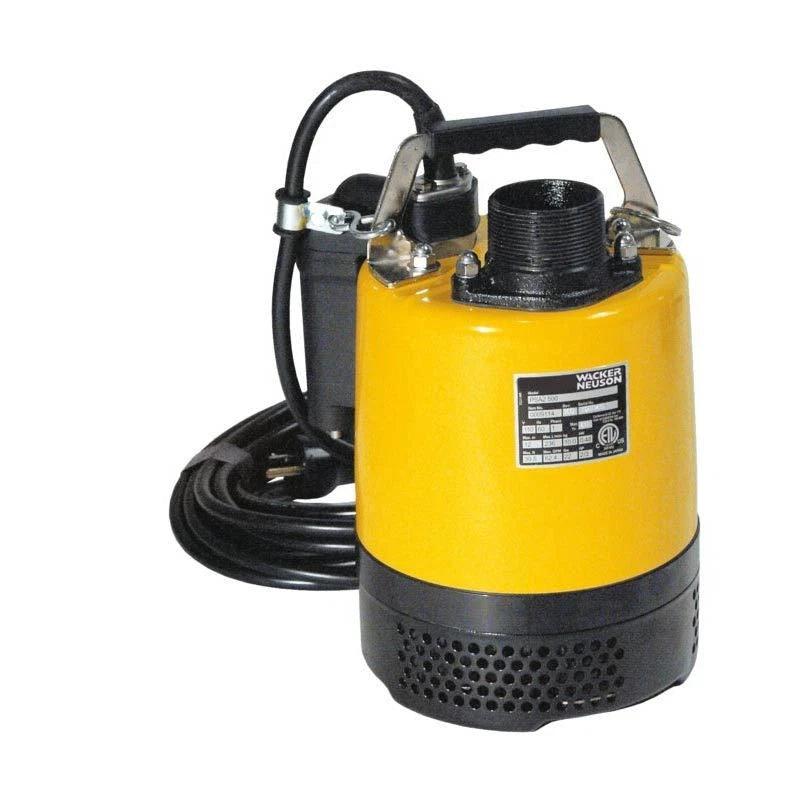

Wacker Neuson 5000009114 PSA2 500 2-Inch Submersible Dewatering Pump
- Regular price
- $1,099.00
- Sale price
- $1,099.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 5000009114
Description
The Wacker Neuson 5000009114 PSA2 500 is a 2-inch electric submersible pump designed for fast dewatering of trenches, sumps, basements, construction sites, and other water-filled areas. Its 110 V single-phase motor delivers up to 62.3 gal/min (236 L/min) with a maximum delivery head of 39.4 ft (12 m), while the compact 22 lb design supports portable field use.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Wacker Neuson |
| Category | Construction Equipment |
| Part Number | 5000009114 |
| Subcategory | Submersible Pumps |
| Model | PSA2 500 |
| Product Type | Electric Submersible Dewatering Pump |
| Discharge Diameter | 2 in (50 mm) |
| Nominal Voltage | 110 V |
| Nominal Frequency | 60 Hz |
| Phase | Single Phase |
| Nominal Current | 6.1 A |
| Nominal Power | 0.48 kW / Approx. 2/3 HP |
| Nominal Speed | 3,270 RPM |
| Maximum Flow Rate | 62.3 gal/min (236 L/min) |
| Maximum Delivery Head | 39.4 ft (12 m) |
| Maximum Solids Diameter | 0.2 in (6 mm) |
| Impeller Type | Semi-Vortex |
| Shaft Seal | Double Mechanical Seal |
| Motor Protection | Thermal / Miniature Motor Protector |
| Automatic Operation | Integrated Level-Control System |
| Power Cable Length | 32.8 ft (10 m) |
| Dimensions | 8.7 × 7.3 × 12 in (222 × 186 × 304 mm) |
| Weight | 22 lb (10 kg) |
Information About 5000009114
The 5000009114 is a Wacker Neuson PSA2 500 submersible dewatering pump designed for handling rainwater, groundwater, and water containing small suspended solids. Its compact construction incorporates a semi-vortex impeller, double mechanical shaft seal, and protected submersible electric motor for operation in demanding construction environments. The pump operates from a 110 V, 60 Hz single-phase supply and uses a 2-inch discharge connection with a 32.8 ft (10 m) power cable. An automatic level-control system allows the PSA configuration to respond to changing water levels, making it suitable for unattended or intermittent dewatering applications.
Key Features:
- 2-Inch Discharge: Uses a 2-inch connection for practical integration with common construction dewatering hoses.
- High Flow Capacity: Delivers a maximum flow rate of approximately 62.3 gal/min or 236 L/min.
- 39.4 ft Maximum Head: Pumps water to a maximum delivery height of approximately 12 m.
- 110 V Operation: Runs from a 110 V, 60 Hz single-phase electrical supply suitable for common jobsite power sources.
- 0.48 kW Motor: Provides approximately 0.48 kW of nominal power for continuous dewatering applications.
- Semi-Vortex Impeller: Supports efficient water movement while reducing direct contact between suspended particles and the impeller.
- Solids Handling: Capable of passing suspended solids up to approximately 0.2 in (6 mm) in diameter.
- Automatic Level Control: PSA-series configuration provides automatic pump operation according to water level.
- Thermal Motor Protection: Integrated motor protection helps guard the pump against overheating during demanding operation.
- Double Mechanical Seal: Internal shaft sealing helps protect the motor compartment against water ingress.
- 32.8 ft Power Cable: Includes a long 10 m electrical cable for convenient positioning in trenches, pits, and sumps.
- Compact Portable Design: Approximately 22 lb operating weight makes the pump practical for transportation between jobsites.
The 5000009114 delivers the reliability and precision required for construction-site dewatering, drainage, groundwater removal, and temporary water-transfer applications.
