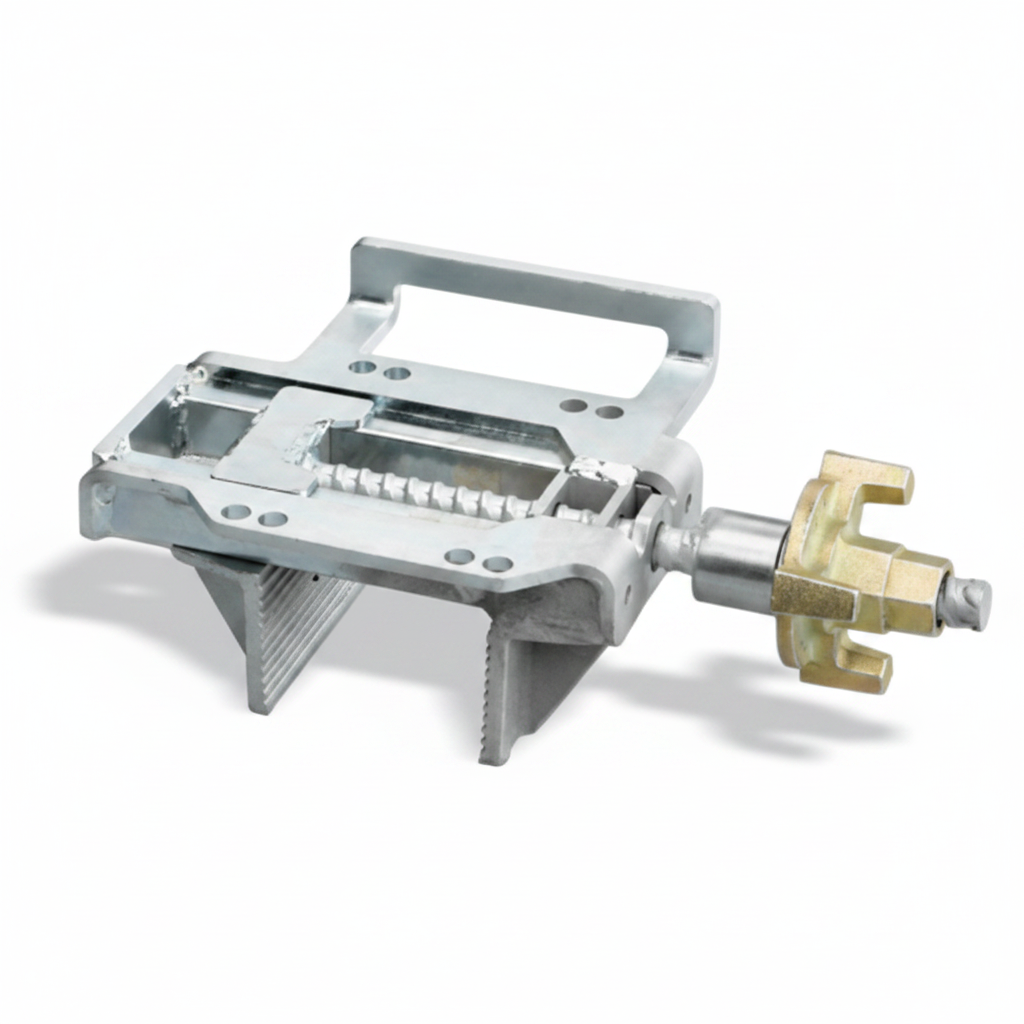

Wacker Neuson 5000201173 SV4 Fastening Clamp for External Vibrators
- Regular price
- $607.00
- Sale price
- $607.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 5000201173
Description
Wacker Neuson 5000201173 is an SV4 fastening clamp designed to secure compatible external concrete vibrators to wooden beam-type formwork. It provides a removable mounting interface for transferring vibration into the formwork during concrete consolidation and supports a clamping span up to 120 mm with beam widths up to 105 mm.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Wacker Neuson |
| Category | Concrete Equipment Components |
| Part Number | 5000201173 |
| Subcategory | External Vibrator Clamps |
| Product Type | SV4 Fastening Clamp |
| Application | External Concrete Vibrator Mounting |
| Formwork Type | Wooden / Beam-Type Formwork |
| Maximum Clamping Span | 4.72 in / 120 mm |
| Maximum Beam Width | 4.13 in / 105 mm |
| Compatible Formwork Systems | Doka, Peri, Hünnebeck, Meva, Noe, Paschal, Ulma |
| Doka Compatibility | H 20, Top 50, FF 20 |
| Peri Compatibility | VT 20K, GT 24, VARIO GT 24 |
| Hünnebeck Compatibility | H 20, R 24, GF 24, ES 24 |
| Length with Saddle Clamp | 325 mm |
| Width with Saddle Clamp | 195 mm |
| Height with Saddle Clamp | 121 mm |
| Weight | 4.32 kg / 9.52 lb |
Information About 5000201173
The 5000201173 is a Wacker Neuson SV4 fastening clamp developed for external vibrator installations on wooden and beam-type formwork. It is compatible with Wacker Neuson external vibrators, including ARFU26-series applications documented with the SV4 mounting system. The clamp supports formwork systems from Doka, Peri, Hünnebeck, Meva, Noe, Paschal, and Ulma, including common H20 and GT24 beam configurations. Its removable clamping design allows the vibrator to be securely positioned on the formwork and subsequently relocated as required during concrete work.
Key Features:
- SV4 Configuration: Uses the Wacker Neuson SV4 fastening design for external concrete vibrator mounting.
- Wooden Formwork Application: Designed specifically for beam-type and wooden formwork systems.
- 120 mm Maximum Span: Accommodates a clamping span of up to 4.72 inches or 120 mm.
- 105 mm Beam Capacity: Supports formwork beams with widths up to approximately 4.13 inches or 105 mm.
- External Vibrator Mounting: Provides the fastening interface required to secure compatible external vibrators during concrete consolidation.
- Multi-System Compatibility: Supports specified Doka, Peri, Hünnebeck, Meva, Noe, Paschal, and Ulma formwork configurations.
- Defined Assembly Dimensions: Measures 325 mm long, 195 mm wide, and 121 mm high with the saddle clamp installed.
- Removable Installation: Designed as a detachable fastening system that can be repositioned between suitable formwork locations.
The 5000201173 delivers the reliability and precision required for secure external vibrator mounting on compatible wooden formwork systems.
