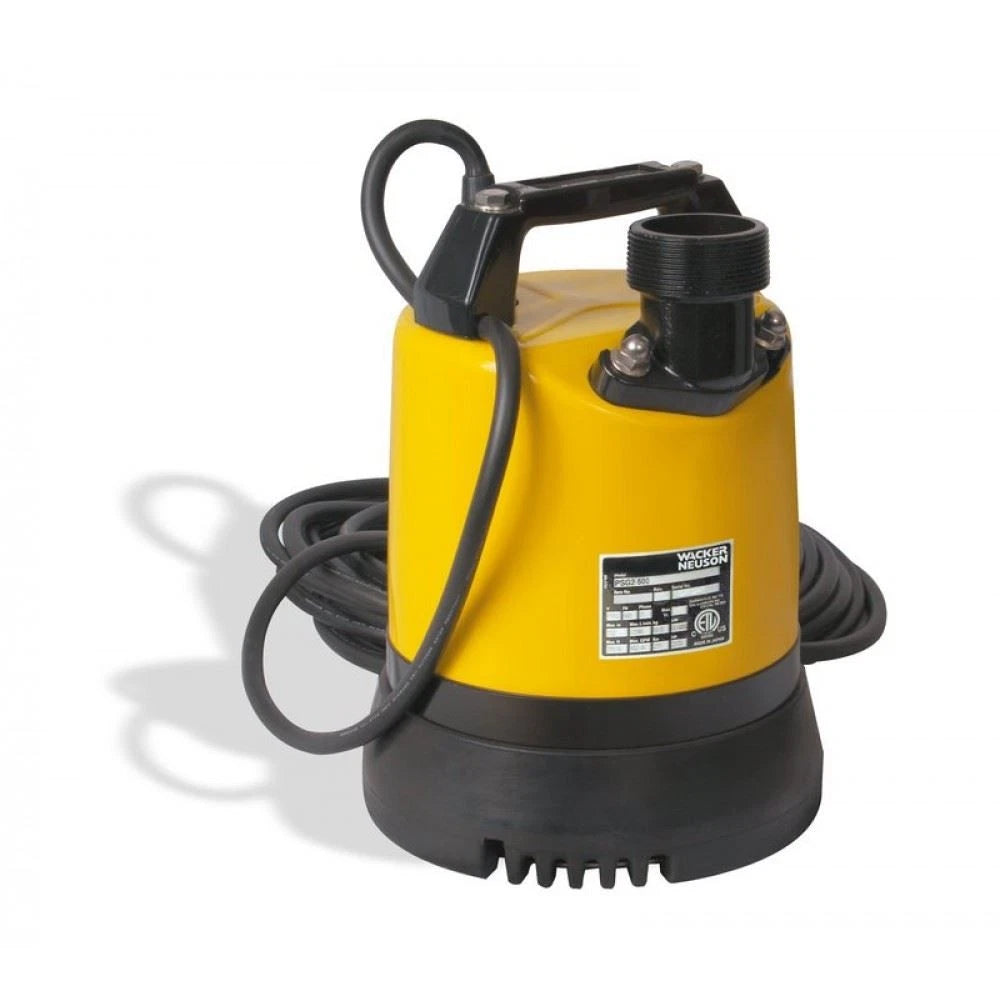

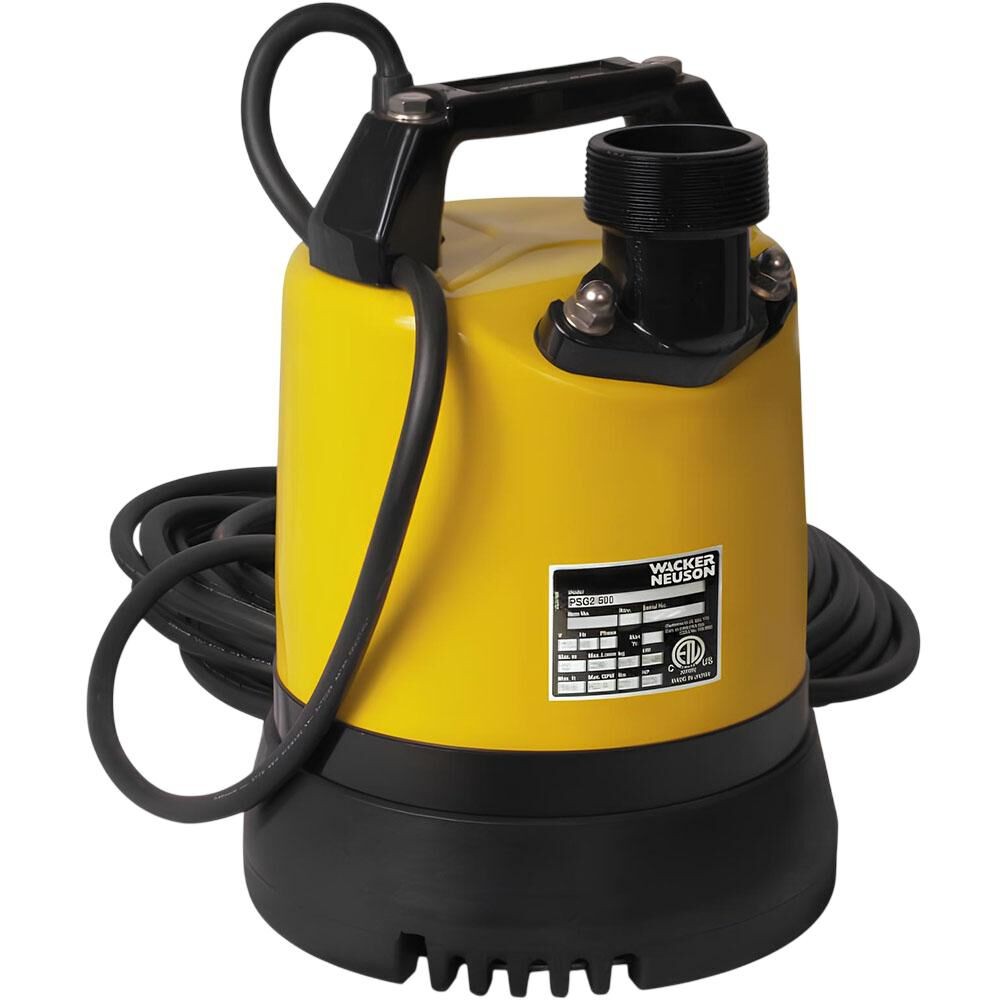

Wacker Neuson 5000620412 PSG2 500 Low-Level Submersible Pump 110V 62.4 GPM
- Regular price
- $899.00
- Sale price
- $899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 5000620412
Description
Wacker Neuson 5000620412 is the PSG2 500 high-performance single-phase submersible pump designed for fast, low-level jobsite dewatering. It operates from a 110V/60Hz supply and delivers up to 62.4 GPM with approximately 40 ft of total head while handling small suspended solids.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Wacker Neuson |
| Category | Pump Equipment |
| Part Number | 5000620412 |
| Subcategory | Submersible Pumps |
| Product Type | Low-Level Submersible Pump |
| Model | PSG2 500 |
| Motor Type | Single-Phase Electric |
| Frequency | 60 Hz |
| Rated Output | 1/3 HP |
| Motor Speed | 3,255 RPM |
| Voltage | 110V |
| Starting Current | 12.5 A |
| Running Current | 6.1 A |
| Maximum Flow Rate | 62.4 GPM |
| Maximum Total Head | Approx. 40 ft |
| Maximum Solids Size | Approx. 0.24–0.25 in |
| Discharge Port Size | 2 in |
| Cable Size | 16 AWG |
| Cable Length | 32 ft |
| Dimensions | 8.3 x 8.3 x 11.2 in |
| Weight | 23 lb |
Information About 5000620412
The 5000620412 is a Wacker Neuson PSG2 500 electric submersible pump intended for light dewatering applications. Its single-phase motor operates at 110V/60Hz and approximately 3,255 RPM, making the unit suitable for standard jobsite electrical power. The pump provides a maximum discharge capacity of 62.4 GPM and approximately 39.5–40 ft of total head while accommodating solids up to approximately 0.24 in. The compact submersible configuration is designed for trenches, pits, basins, and other applications requiring portable water removal, and Wacker Neuson describes the PSG2 500 as a high-performance dewatering pump.
Key Features:
- PSG2 500 Configuration: Part number 5000620412 corresponds directly to Wacker Neuson's PSG2 500 submersible pump model.
- High Flow Capacity: Delivers a maximum discharge capacity of approximately 62.4 GPM for efficient jobsite dewatering.
- Low-Level Pumping: Designed for applications requiring removal of water from low-level areas, trenches, pits, and similar locations.
- 110V Single-Phase Motor: Operates from a 110V/60Hz single-phase electrical supply for convenient jobsite operation.
- 40-Foot Maximum Head: Provides approximately 39.5–40 ft of total pumping head.
- Solids Handling: Handles suspended solids up to approximately 0.24 in / 6 mm in diameter.
- Long Power Cable: Equipped with a 32 ft power cord for flexible placement around the work area.
- Thermal Protection: Built-in motor protection helps protect the pump from overheating caused by conditions such as impeller blockage.
The 5000620412 delivers the reliability and precision required for portable low-level dewatering and water-transfer applications.
