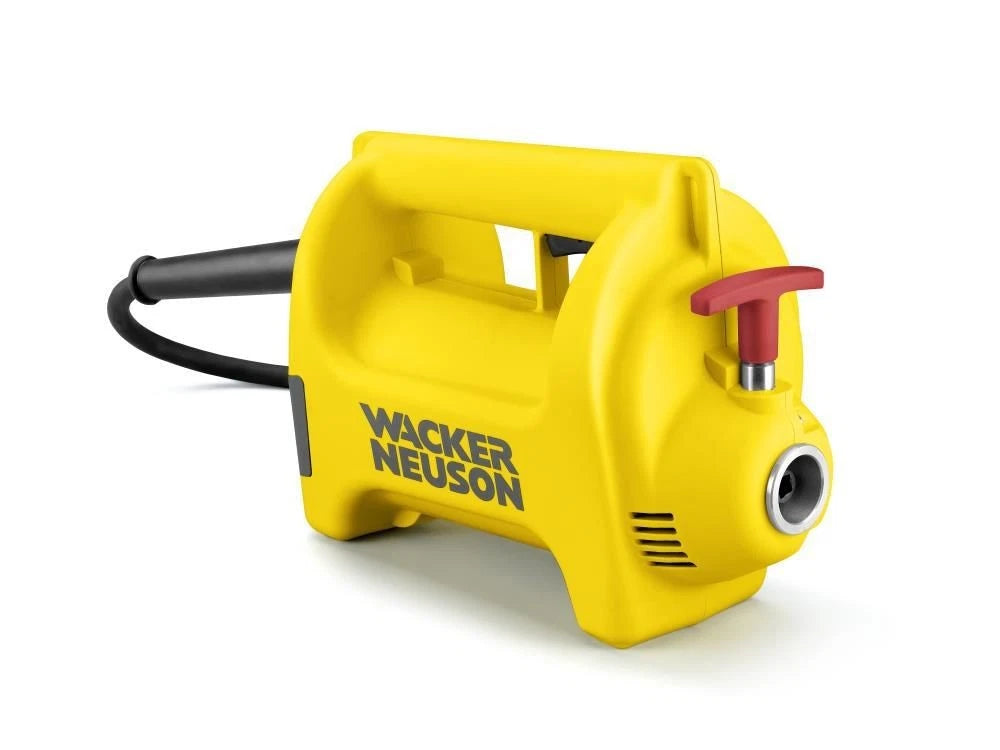

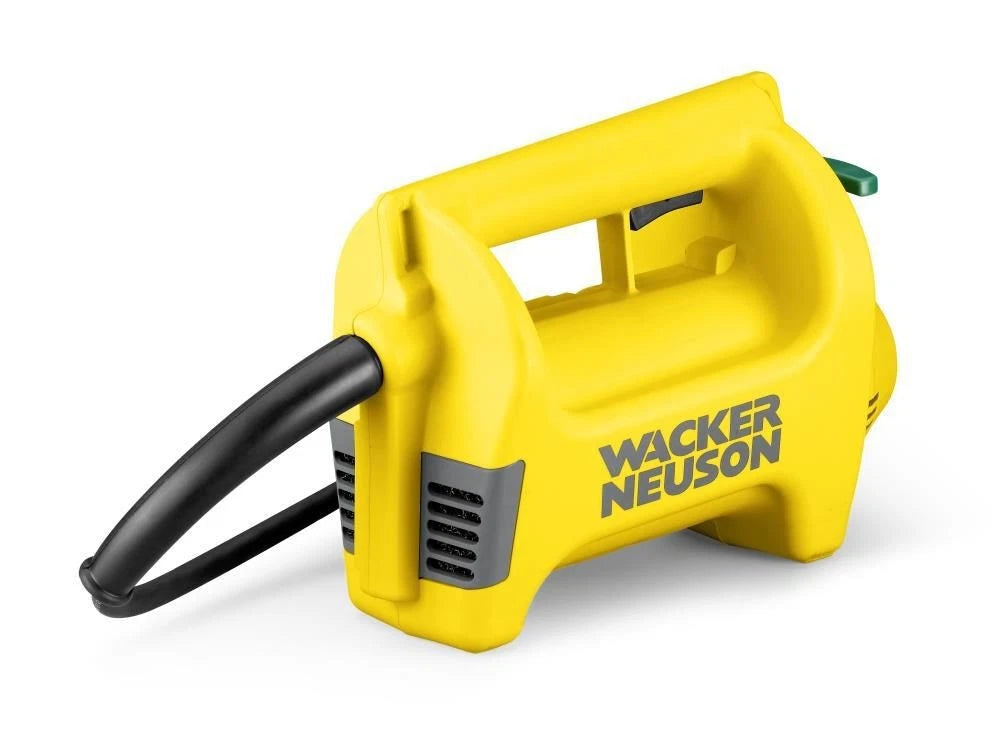

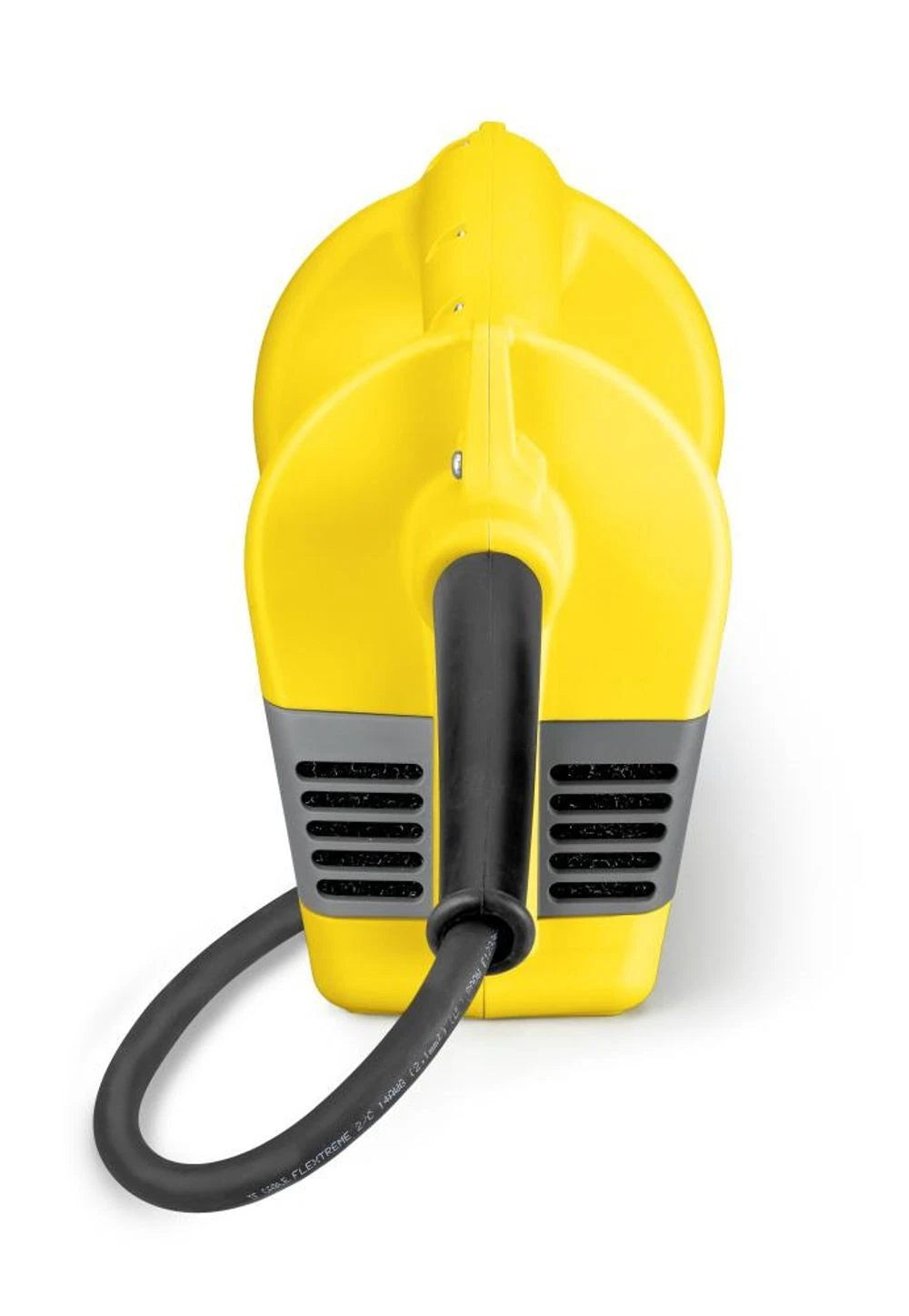

Wacker Neuson M2500-120 2.5 HP 120V HMS Electric Concrete Vibrator Motor
- Regular price
- $1,099.00
- Sale price
- $1,099.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: M2500-120
Description
The Wacker Neuson M2500-120 is a 2.5 HP electric drive motor for the modular HMS internal concrete vibrator system, identified by manufacturer item number 5100006000. Operating from a 120 V single-phase supply, it drives interchangeable flexible shafts and vibrator heads for consolidating freshly placed concrete and removing trapped air.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Wacker Neuson |
| Category | Concrete Equipment |
| Part Number | M2500-120 |
| Subcategory | Concrete Vibrator Motors |
| Manufacturer Item Number | 5100006000 |
| Product Type | Electric Internal Concrete Vibrator Drive Motor |
| Series | HMS Modular Internal Vibrator System |
| Motor Type | Universal Electric Motor |
| Motor Power | 2.5 HP / 1.8 kW |
| Rated Voltage | 120 V AC |
| Rated Current | 15 A |
| Rated Frequency | 50–60 Hz |
| Phase | Single Phase |
| Idle Speed | 16,000 rpm |
| Nominal Speed | 12,000 rpm |
| Protection Class | Class II / Double Insulated |
| Ingress Protection | IP24 |
| Dimensions | 12.3 × 6.1 × 9.1 in (312 × 154 × 230 mm) |
| Weight | 11.9 lb (5.4 kg) |
Information About M2500-120
The M2500-120 is part of the Wacker Neuson HMS modular internal vibrator family, which combines an electric drive motor with interchangeable flexible shafts and vibrator heads. The unit uses a double-insulated universal motor, impact-resistant housing, quick-connect coupling, and dual air filtration to support continuous operation in demanding concrete work. Its modular interface accommodates multiple Wacker Neuson SM-series flexible shaft lengths, allowing the vibrator configuration to be adapted for walls, columns, slabs, foundations, and other concrete placements. With a 120 V supply, 15 A rated current, 16,000 rpm idle speed, and IP24 protection, the motor provides portable power for professional concrete consolidation applications.
Key Features:
- 2.5 HP Motor: Provides high-output electric drive power for modular internal concrete vibration equipment.
- 120 V Operation: Designed for standard 120 V single-phase AC power commonly available on North American job sites.
- 15 Amp Rated Current: Electrical system operates at a manufacturer-specified nominal current of 15 A.
- HMS Modular System: Connects with compatible flexible shafts and vibrator heads to create a complete internal vibrator.
- Quick-Connect Coupler: Allows compatible flexible shafts to be installed or exchanged efficiently as job requirements change.
- Double-Insulated Motor: Class II electrical construction provides an additional level of protection without relying on protective grounding.
- IP24 Protection: Housing provides protection appropriate for construction environments where splash-water exposure may occur.
- Dual Air Filtration: Helps limit contamination entering the motor while supporting cooling and reducing maintenance requirements.
- Impact-Resistant Housing: High-strength molded body protects internal components against normal job-site handling and impacts.
- Carbon Brush Motor Design: Serviceable carbon brushes support extended operation of the universal electric motor.
- High-Speed Operation: Delivers an idle speed of up to 16,000 rpm for effective transmission of vibration through the flexible shaft system.
- Shoulder Strap Support: Adjustable carrying strap improves portability and operator handling when repositioning the motor.
The M2500-120 delivers the reliability and precision required for internal vibration and effective consolidation of freshly placed concrete.
