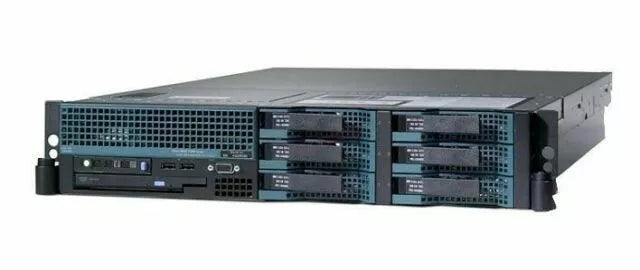

WAE-674-K9 | Cisco Wide Area Application Engine

Description

The Cisco WAE-674-K9 is a Wide Area Application Engine designed to optimize application performance across WANs. It provides advanced caching, compression, and traffic management, helping accelerate application delivery and reduce bandwidth usage.

Technical Specifications

Information About WAE-674-K9

The Cisco WAE-674-K9 is a Wide Area Application Engine designed to enhance application performance over WANs. It supports Cisco's Application and Content Networking System (ACNS) and Wide Area Application Services (WAAS) software, providing features like caching, compression, and traffic management to optimize application delivery.

Key Features:

• Processor: Intel Xeon E5335, 2.00 GHz, 1333 MHz FSB

• Memory: 4 GB DDR2-667 ECC RAM

• Storage: 600 GB usable (3 x 300 GB 15K RPM SAS HDDs)

• RAID Support: RAID-5

• Network Interfaces: 2 x 10/100/1000BASE-T Ethernet ports

• Expansion Slots: Supports optional 4-port NIC for inline WAAS deployment

• Power Supply: One 835W hot-swappable AC power supply; redundant power available as an option

• Form Factor: 2U rack-mountable

• Dimensions: Height: 3.36 in (85.4 mm); Width: 17.5 in (443.6 mm); Depth: 27.64 in (702.0 mm)


• Operating Temperature: 50 to 95°F (10 to 35°C)

• Compliance: UL 1950, CSA-C22.2 No. 950, EN 60950, IEC 60950

This appliance is ideal for medium to large enterprise branch offices and data centers seeking to improve application responsiveness and reduce WAN bandwidth consumption.
