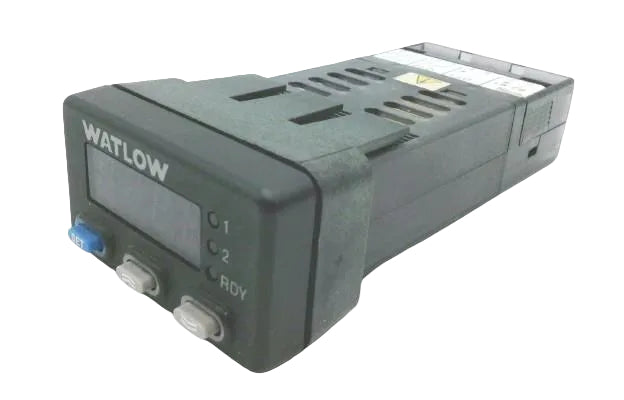

Watlow 935A-1CD0-000R Series 935A Temperature Controller with Switched DC and Relay Outputs
- Regular price
- $1,592.00
- Sale price
- $1,592.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 935A-1CD0-000R
Description
Watlow 935A-1CD0-000R is a compact temperature controller for industrial, commercial, and laboratory heating or cooling equipment. It accepts a thermocouple or RTD input and provides a switched DC logic output plus an electromechanical relay output rated at 2 A, 240 VAC.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Watlow |
| Category | Controls & Indicators |
| Part Number | 935A-1CD0-000R |
| Subcategory | Temperature/Process Control |
| Alternate Part Number | 935A1CD0000R |
| Product Series | Series 935A |
| Product Type | Temperature controller with countdown timer |
| Mounting Format | 1/32 DIN panel mount |
| Supply Voltage | 100–240 VAC |
| Supply Frequency | 50/60 Hz |
| Power Consumption | 6 VA maximum |
| Display | Four-digit red display |
| Sensor Input | Single thermocouple or RTD input |
| Control Modes | On/off or PID with auto-tuning |
| Output 1 | Switched DC/logic signal |
| Output 2 | Electromechanical relay, 2 A at 240 VAC |
| Lifecycle Status | Discontinued by manufacturer |
| Listed Replacement | PM3T1CJ-AAAAAAA; verify application compatibility |
| Weight | 0.35 lbs |
Information About 935A-1CD0-000R
The 935A-1CD0-000R is a Series 935A controller built for 1/32 DIN panel mounting. It supports on/off and PID control, with an auto-tuning function for establishing control parameters. Its single sensor input supports compatible thermocouples and RTDs, while configurable output functions accommodate temperature regulation, alarms, or countdown timing. The four-digit red display presents temperature, setpoint, timer information, or configuration prompts according to the selected operating mode.
Key Features:
- Sensor Compatibility: Accepts a single thermocouple or RTD temperature input.
- Selectable Control: Supports on/off or PID operation to suit the thermal process.
- Automatic Tuning: Establishes PID parameters through the controller’s auto-tuning routine.
- Switched DC Output: Output 1 provides a logic signal for compatible external switching equipment.
- Relay Output: Output 2 uses an electromechanical relay rated at 2 A, 240 VAC.
- Countdown Timer: Provides configurable timing functions for temperature-dependent operating sequences.
- Digital Readout: Uses a four-digit red display for operating values and setup information.
- Compact Installation: Fits a 1/32 DIN panel opening.
The 935A-1CD0-000R delivers the reliability and precision required for temperature regulation and timed thermal operations in compatible process equipment.
