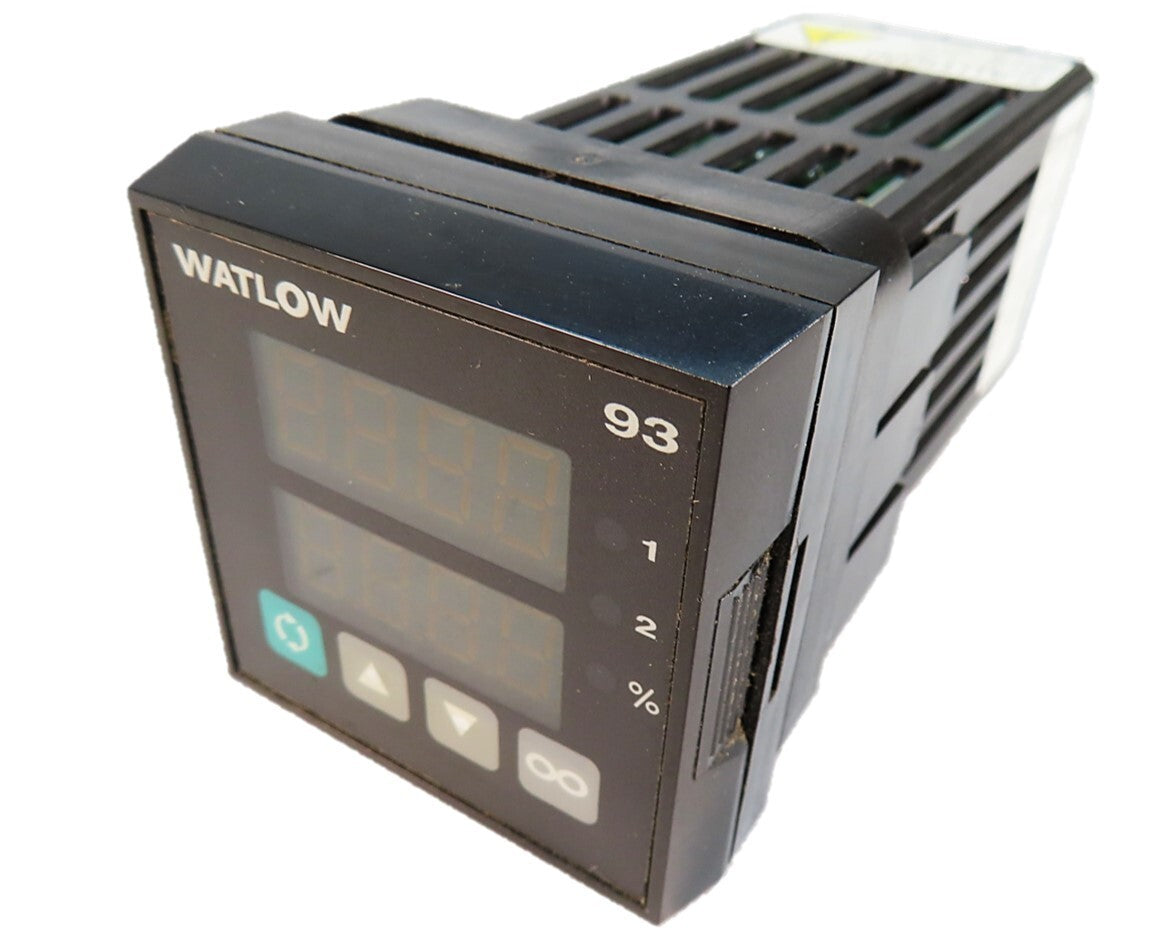

Watlow 93BB-1DA0-00RR Series 93 Autotuning Temperature Controller with Relay Output and Dual Red Displays
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 93BB-1DA0-00RR
Description
Watlow 93BB-1DA0-00RR is a Series 93 microprocessor-based temperature/process controller for single-loop regulation in industrial equipment. It combines automatic tuning, a mechanical relay output, and dual red displays in a 1/16 DIN panel-mounted enclosure.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Watlow |
| Category | Controls & Indicators |
| Part Number | 93BB-1DA0-00RR |
| Subcategory | Temperature/Process Control |
| Alternate Part Number | 93BB1DA000RR |
| Product Series | Series 93 |
| Controller Architecture | Microprocessor-based, single-loop |
| Mounting Format | 1/16 DIN panel mount |
| Supply Voltage | 100–240 VAC |
| Supply Frequency | 50/60 Hz |
| Input Compatibility | Type J, K, T, N, or S thermocouple; supported RTD or process input |
| Control Modes | PID or on/off |
| Tuning Function | Automatic tuning |
| Output 1 | Electromechanical relay, Form C, 5 A, without contact suppression |
| Output 2 | None |
| Display Configuration | Two four-digit displays; red upper / red lower |
| Front-Panel Protection | IP65/NEMA 4X with correct panel installation |
| CE / Lifecycle Status | CE option included / discontinued by manufacturer |
| Weight | 0.40 lbs |
Information About 93BB-1DA0-00RR
The 93BB-1DA0-00RR is a configurable controller that accepts compatible thermocouple, RTD, or process inputs. Its control functions include PID and on/off operation, allowing adjustment to the response requirements of heating or cooling equipment. The BB configuration specifies the IP65/NEMA 4X front-panel protection option and CE compliance, with the environmental rating dependent on correct installation. The DA output combination provides a 5 A Form C electromechanical relay at Output 1 and no second output.
Key Features:
- Automatic Tuning: Establishes PID control parameters for the connected thermal process.
- Selectable Control Modes: Supports PID or on/off regulation for compatible heating or cooling applications.
- Configurable Sensor Input: Accepts supported thermocouples, RTDs, and analog process signals.
- Mechanical Relay Output: Provides a 5 A Form C relay with normally open and normally closed contacts.
- Dual Red Displays: Uses separate four-digit upper and lower readouts for process and setpoint information.
- Front-Panel Protection: Includes the IP65/NEMA 4X option when installed according to manufacturer requirements.
- Compact Mounting: Fits a standard 1/16 DIN panel opening.
- Parameter Retention: Stores configuration information in nonvolatile memory.
The 93BB-1DA0-00RR delivers the reliability and precision required for locally configured temperature and process regulation in compatible industrial systems.
Description
Watlow 93BB-1DA0-00RR is a Series 93 microprocessor-based temperature/process controller for single-loop regulation in industrial equipment. It combines automatic tuning, a mechanical relay output, and dual red displays in a 1/16 DIN panel-mounted enclosure.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Watlow |
| Category | Controls & Indicators |
| Part Number | 93BB-1DA0-00RR |
| Subcategory | Temperature/Process Control |
| Alternate Part Number | 93BB1DA000RR |
| Product Series | Series 93 |
| Controller Architecture | Microprocessor-based, single-loop |
| Mounting Format | 1/16 DIN panel mount |
| Supply Voltage | 100–240 VAC |
| Supply Frequency | 50/60 Hz |
| Input Compatibility | Type J, K, T, N, or S thermocouple; supported RTD or process input |
| Control Modes | PID or on/off |
| Tuning Function | Automatic tuning |
| Output 1 | Electromechanical relay, Form C, 5 A, without contact suppression |
| Output 2 | None |
| Display Configuration | Two four-digit displays; red upper / red lower |
| Front-Panel Protection | IP65/NEMA 4X with correct panel installation |
| CE / Lifecycle Status | CE option included / discontinued by manufacturer |
| Weight | 0.40 lbs |
Information About 93BB-1DA0-00RR
The 93BB-1DA0-00RR is a configurable controller that accepts compatible thermocouple, RTD, or process inputs. Its control functions include PID and on/off operation, allowing adjustment to the response requirements of heating or cooling equipment. The BB configuration specifies the IP65/NEMA 4X front-panel protection option and CE compliance, with the environmental rating dependent on correct installation. The DA output combination provides a 5 A Form C electromechanical relay at Output 1 and no second output.
Key Features:
- Automatic Tuning: Establishes PID control parameters for the connected thermal process.
- Selectable Control Modes: Supports PID or on/off regulation for compatible heating or cooling applications.
- Configurable Sensor Input: Accepts supported thermocouples, RTDs, and analog process signals.
- Mechanical Relay Output: Provides a 5 A Form C relay with normally open and normally closed contacts.
- Dual Red Displays: Uses separate four-digit upper and lower readouts for process and setpoint information.
- Front-Panel Protection: Includes the IP65/NEMA 4X option when installed according to manufacturer requirements.
- Compact Mounting: Fits a standard 1/16 DIN panel opening.
- Parameter Retention: Stores configuration information in nonvolatile memory.
The 93BB-1DA0-00RR delivers the reliability and precision required for locally configured temperature and process regulation in compatible industrial systems.
