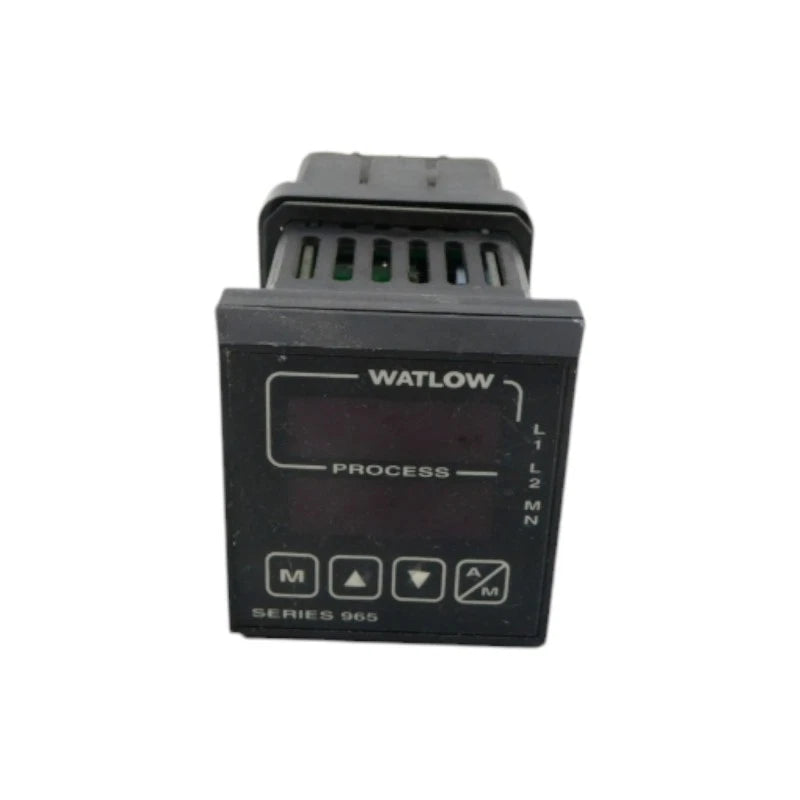

Watlow 965A-3CD0-0000 Series 965 Temperature/Process Controller with Switched DC and Relay Outputs
- Regular price
- $612.00
- Sale price
- $612.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 965A-3CD0-0000
Description
The Watlow 965A-3CD0-0000 is a temperature/process controller that combines microprocessor-based auto-tuning with switched DC and electromechanical relay outputs. Designed for industrial thermal equipment, it supports temperature regulation through selectable PID or on/off operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Watlow |
| Category | Controls & Indicators |
| Part Number | 965A-3CD0-0000 |
| Subcategory | Temperature/Process Control |
| Alternate Part Number | 965A3CD00000 |
| Series | 965 |
| Product Type | Temperature/process controller |
| Control Technology | Microprocessor-based with automatic tuning |
| Control Modes | PID or on/off |
| Mounting Format | 1/16 DIN panel mount |
| Input Types | Thermocouple J, K, T, N, S; platinum RTD; 0–5 VDC; 4–20 mA |
| Output 1 | Switched DC, non-isolated |
| Output 2 | Electromechanical relay, Form C, 5 A, without contact suppression |
| Supply Voltage | 100–240 VAC nominal |
| Supply Frequency | 50/60 Hz |
| Display Configuration | Red upper / red lower digital displays |
| Lifecycle Status | Discontinued by manufacturer |
| Weight | 0.53 lbs |
Information About 965A-3CD0-0000
The 965A-3CD0-0000 is a member of Watlow’s Series 965 family, built for installation in a compact 1/16 DIN panel opening. Its configurable input accepts supported thermocouples, platinum RTDs, and analog process signals. The primary output provides a switched DC signal for compatible external switching devices, while the secondary relay can serve an opposing control action or alarm function. Dual red digital displays present operating information, and nonvolatile memory retains configured parameters between power cycles.
Key Features:
- Automatic PID Tuning: Establishes control parameters for heating or cooling applications.
- Selectable Control Modes: Supports PID and on/off operation to match process requirements.
- Configurable Sensor Input: Accepts supported thermocouple, RTD, voltage, or current inputs.
- Switched DC Output 1: Supplies a non-isolated control signal for a compatible external switching device.
- Electromechanical Relay Output 2: Provides Form C switching for secondary control or alarm operation.
- Dual Red Displays: Shows process and setpoint information through separate upper and lower displays.
- Compact Panel Mounting: Uses a 1/16 DIN format for integration into equipment control panels.
- Universal AC Supply Range: Operates from a nominal 100–240 VAC supply at 50/60 Hz.
The 965A-3CD0-0000 delivers the reliability and precision required for industrial temperature regulation and thermal process monitoring.
