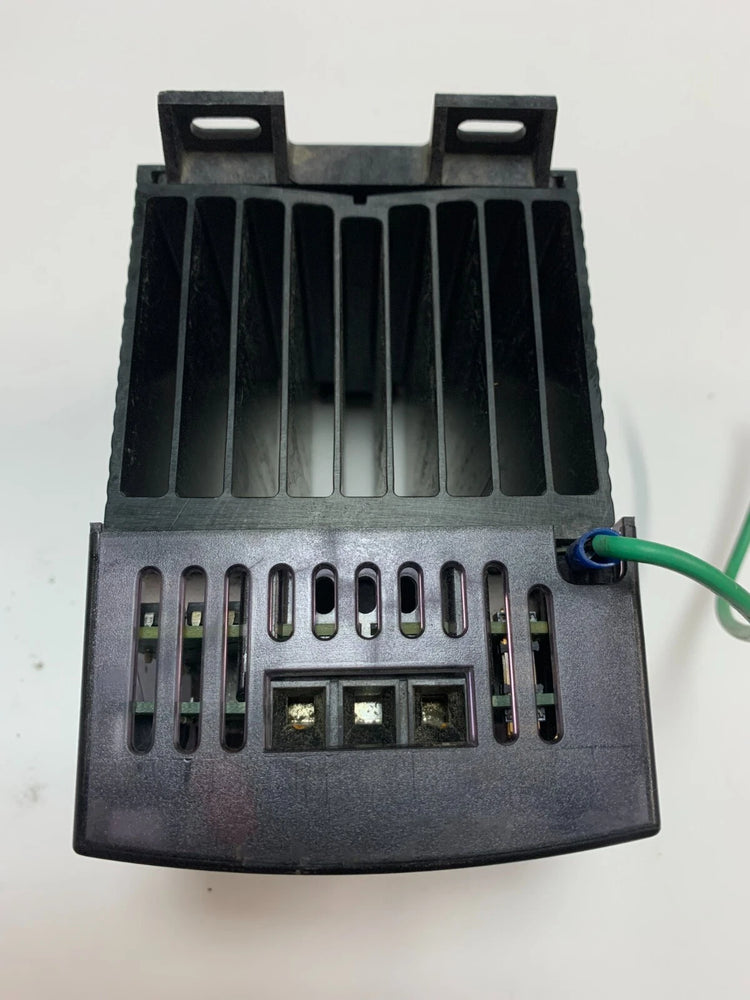

Watlow DB20-60K2-0000 DIN-A-MITE B Three-Phase SCR Power Controller with Natural Convection Cooling
- Regular price
- $449.00
- Sale price
- $449.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DB20-60K2-0000
Description
Watlow DB20-60K2-0000 is a DIN-A-MITE B solid-state power switching device for three-phase industrial heating circuits. It controls two power legs on a 277–600 VAC supply in response to a 100–120 VAC contactor command.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Watlow |
| Category | Controls & Indicators |
| Part Number | DB20-60K2-0000 |
| Subcategory | Power Controller |
| Alternate Part Number | DB2060K20000 |
| Product Series | DIN-A-MITE B |
| Product Type | Solid-state SCR power switching device |
| Phase Configuration | Three-phase, two controlled legs |
| SCR Count | 4 |
| Cooling Method | Natural convection with integrated heat sink |
| Published Manufacturer Current Rating | 25 A at 50°C ambient; see rating note below |
| Nominal Line and Load Voltage | 277–600 VAC |
| Operating Frequency | 50/60 Hz |
| Control Input | 100–120 VAC |
| Output Function | Solid-state contactor |
| Switching Method | Zero-cross |
| Mounting | Standard DIN rail or back panel |
| Alarm / Manual Language | No alarm / English |
| Weight | 1.25 lbs |
Information About DB20-60K2-0000
The DB20-60K2-0000 is a Style B controller designed for integration into electric heating control panels. Its four SCRs form two switched legs, with an integrated heat sink that dissipates heat through natural convection. The K2 input configuration interfaces with compatible AC control outputs and provides zero-cross contactor operation for resistive heater loads. This configuration supports DIN-rail or back-panel mounting and specifies no alarm option and an English user manual.
Key Features:
- Three-Phase Switching: Controls two legs of a three-phase power circuit using four SCRs.
- Load Voltage Compatibility: Supports nominal line and load voltages of 277–600 VAC.
- AC Control Input: Accepts a 100–120 VAC command for contactor-style switching.
- Zero-Cross Operation: Starts conduction near the AC voltage zero crossing.
- Natural-Convection Cooling: Dissipates switching heat through an integrated heat sink without a cooling fan.
- Solid-State Output: Switches heater current electronically without moving power contacts.
- Cabinet Installation: Supports standard DIN-rail or back-panel mounting.
- Alarm Configuration: Specified without the optional alarm function.
The DB20-60K2-0000 delivers the reliability and precision required for externally commanded switching of compatible three-phase industrial heater loads.
