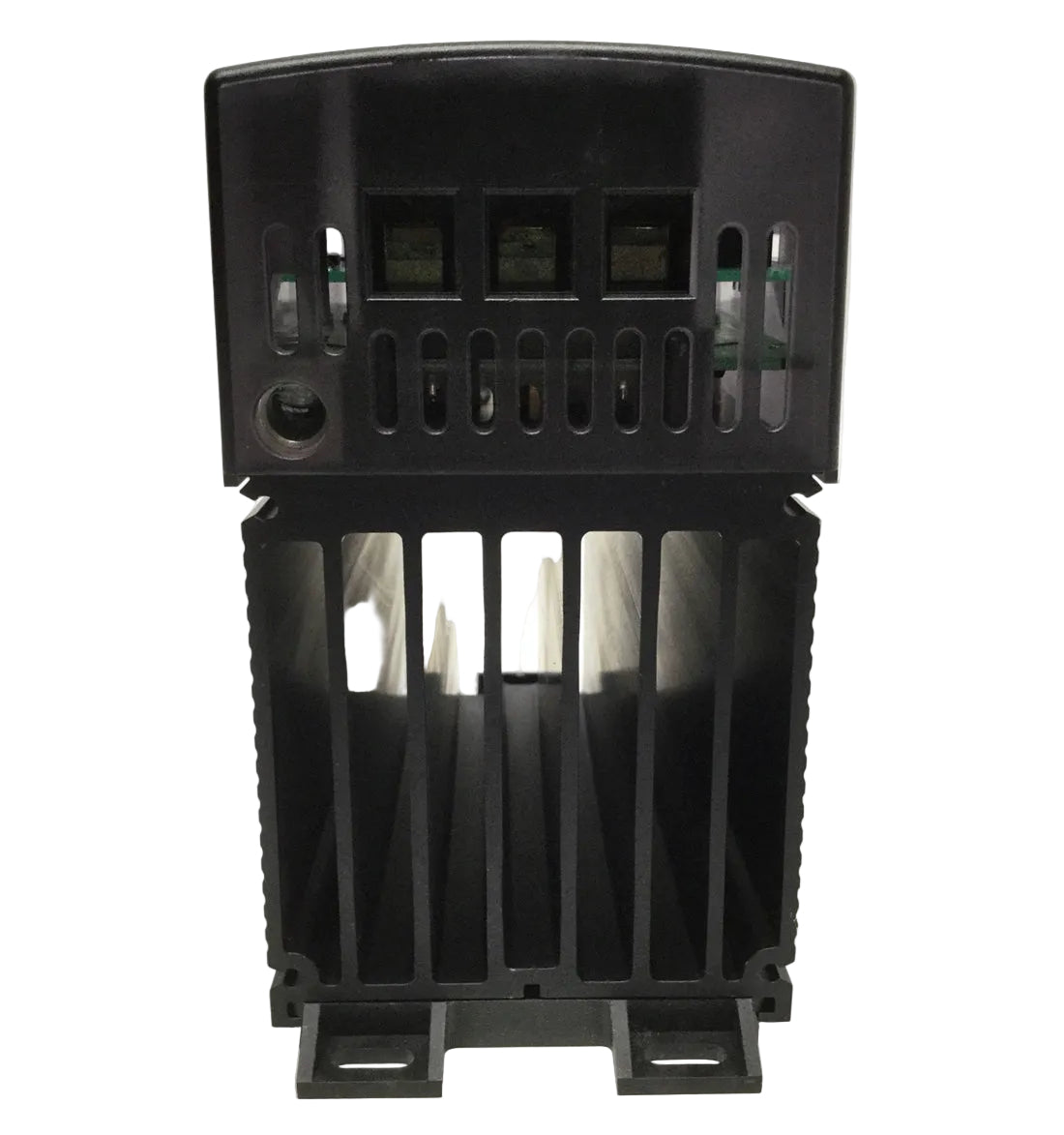

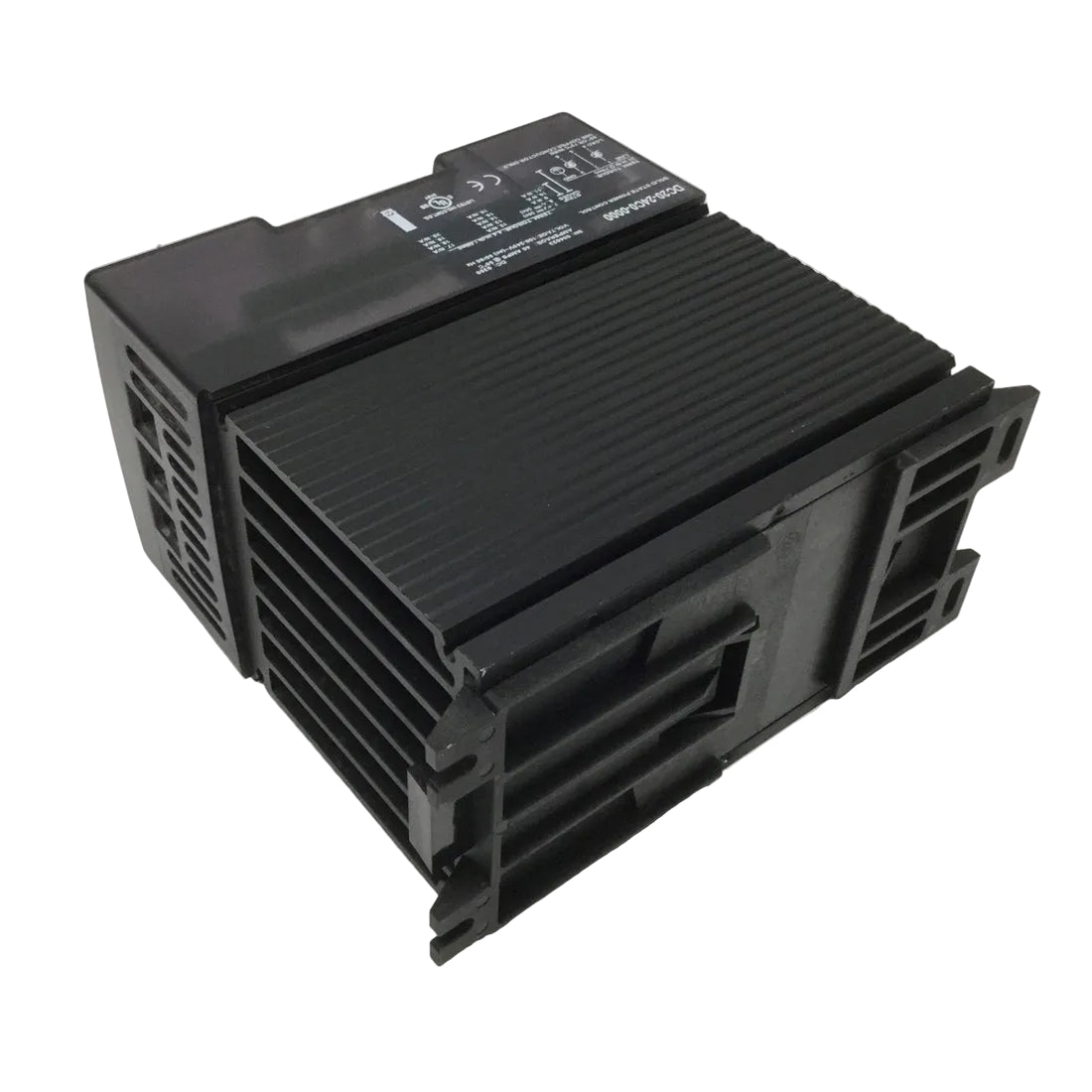

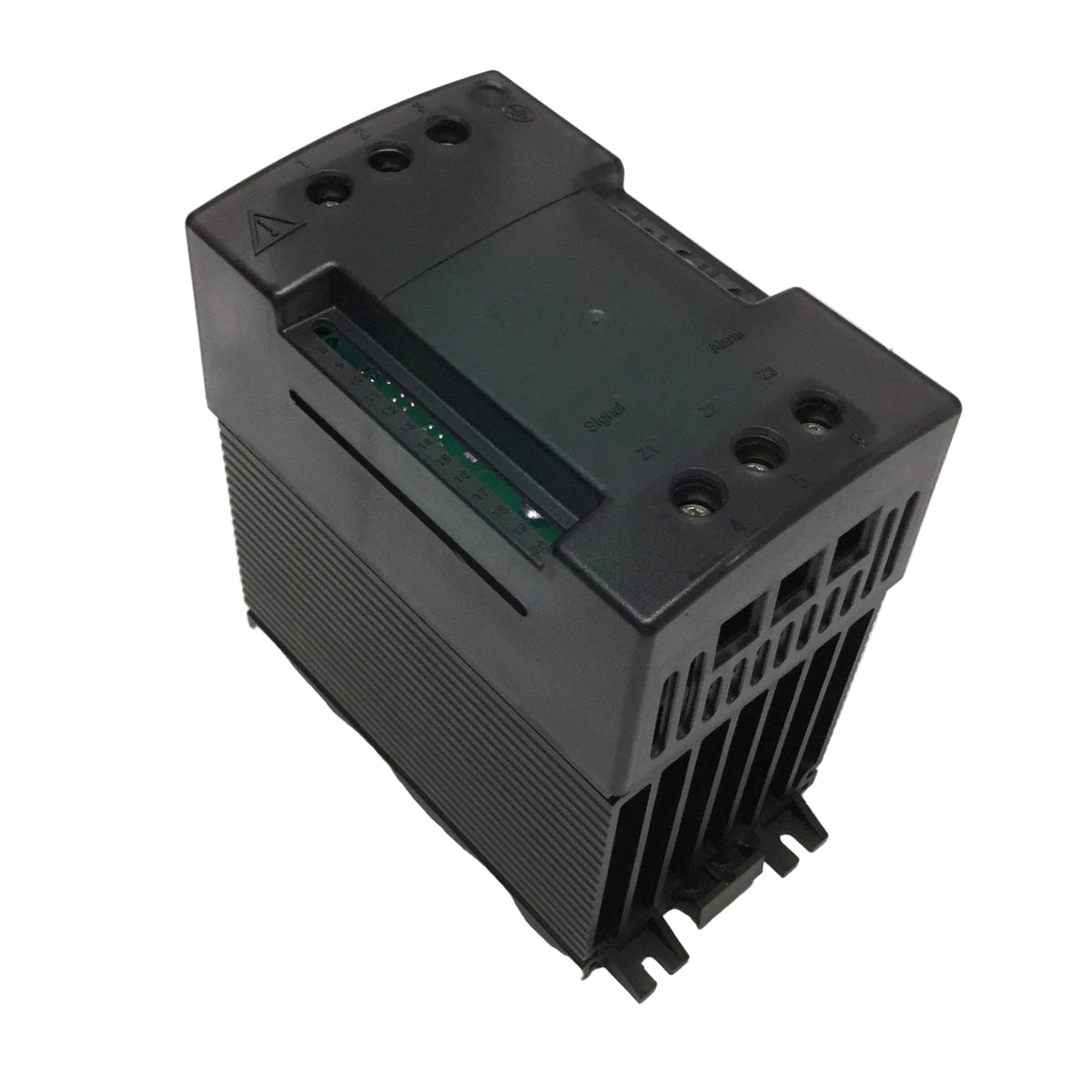

Watlow DC20-24C0-0000 DIN-A-MITE C Three-Phase SCR Power Controller
- Regular price
- $799.00
- Sale price
- $799.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DC20-24C0-0000
Description
Watlow DC20-24C0-0000 is a DIN-A-MITE C SCR power switching device for controlling three-phase electrical loads. It uses two controlled legs, accepts a 4.5–32 VDC input, and is rated for 18 A natural-convection operation at 50°C with 120–240 VAC line voltage.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Watlow |
| Category | Power Control |
| Part Number | DC20-24C0-0000 |
| Subcategory | SCR Power Controllers |
| Series | DIN-A-MITE C |
| Device type | SCR power switching device |
| Phase | Three phase |
| Controlled legs | 2 |
| SCR count | 4 |
| Current rating | 18 A at 50°C |
| Line and load voltage | 120–240 VAC |
| Frequency | 50/60 Hz |
| Control input | 4.5–32 VDC |
| Output type | Contactor |
| Cooling | Natural convection |
| Weight | 1.02 kg |
Information About DC20-24C0-0000
The DC20-24C0-0000 is part of Watlow’s DIN-A-MITE C series of solid-state power switching devices. Its SCR design switches two legs of a three-phase load in response to a DC control signal. Natural-convection cooling supports operation without a separate forced-air cooling system. This configuration has contactor output and no alarm option for applications that do not require an alarm indication.
Key Features:
-
Three-Phase Operation: Designed for three-phase AC power systems with two controlled legs.
-
SCR Power Switching: Uses four silicon-controlled rectifiers for solid-state switching of electrical loads.
-
Voltage Compatibility: Supports 120–240 VAC line and load voltage.
-
Current Rating: Rated at 18 A at 50°C according to the Radwell product listing.
-
DC Control Input: Accepts a 4.5–32 VDC control signal for switching operation.
-
Contactor Control: Uses a contactor-type input configuration for integration with compatible control systems.
-
Natural-Convection Cooling: Dissipates heat without requiring a dedicated cooling fan.
-
Flexible Mounting: Supports DIN-rail or panel heat-sink mounting.
-
Alarm Configuration: Supplied without an integrated alarm function.
The DC20-24C0-0000 delivers reliable solid-state power switching for three-phase industrial heating and temperature-control applications.
