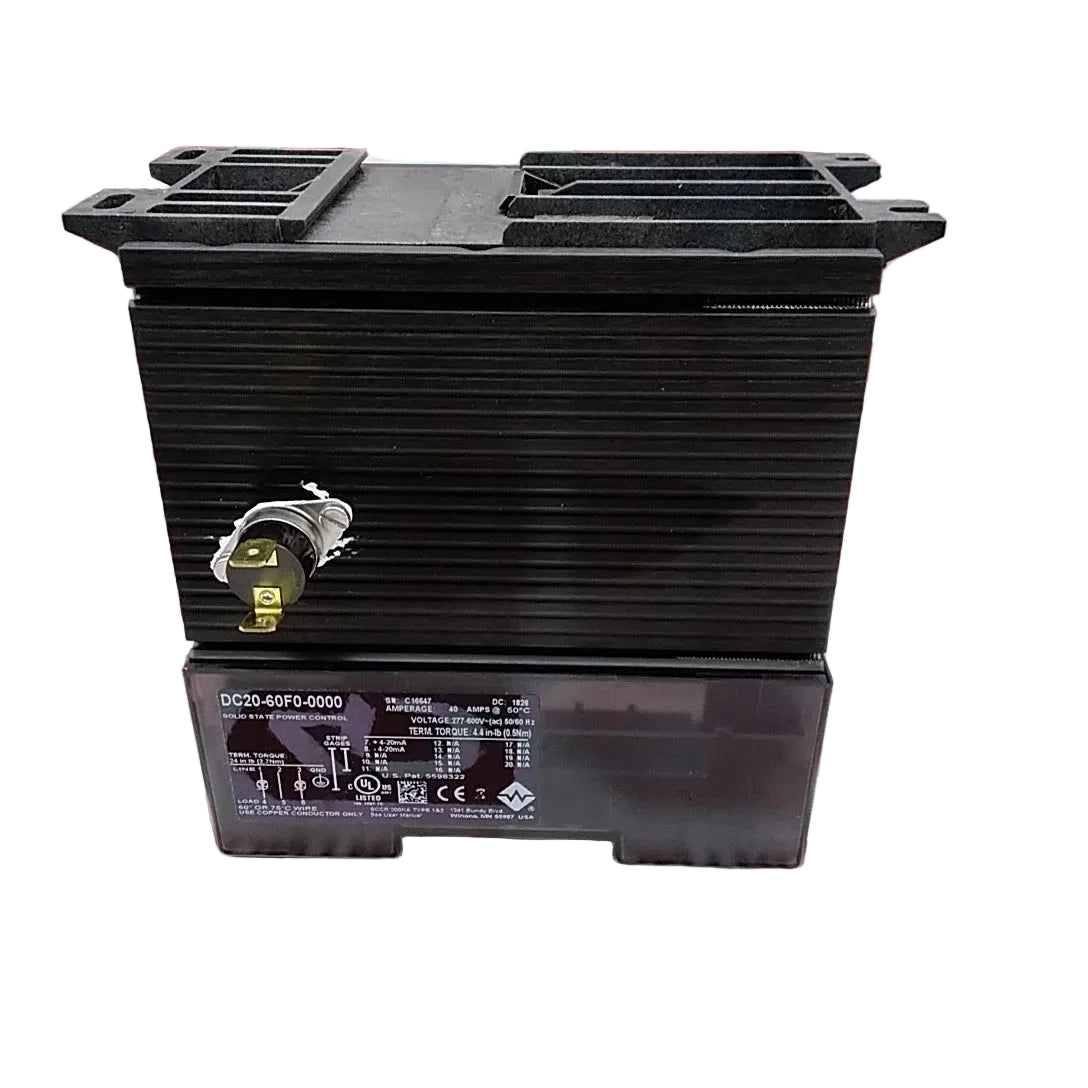

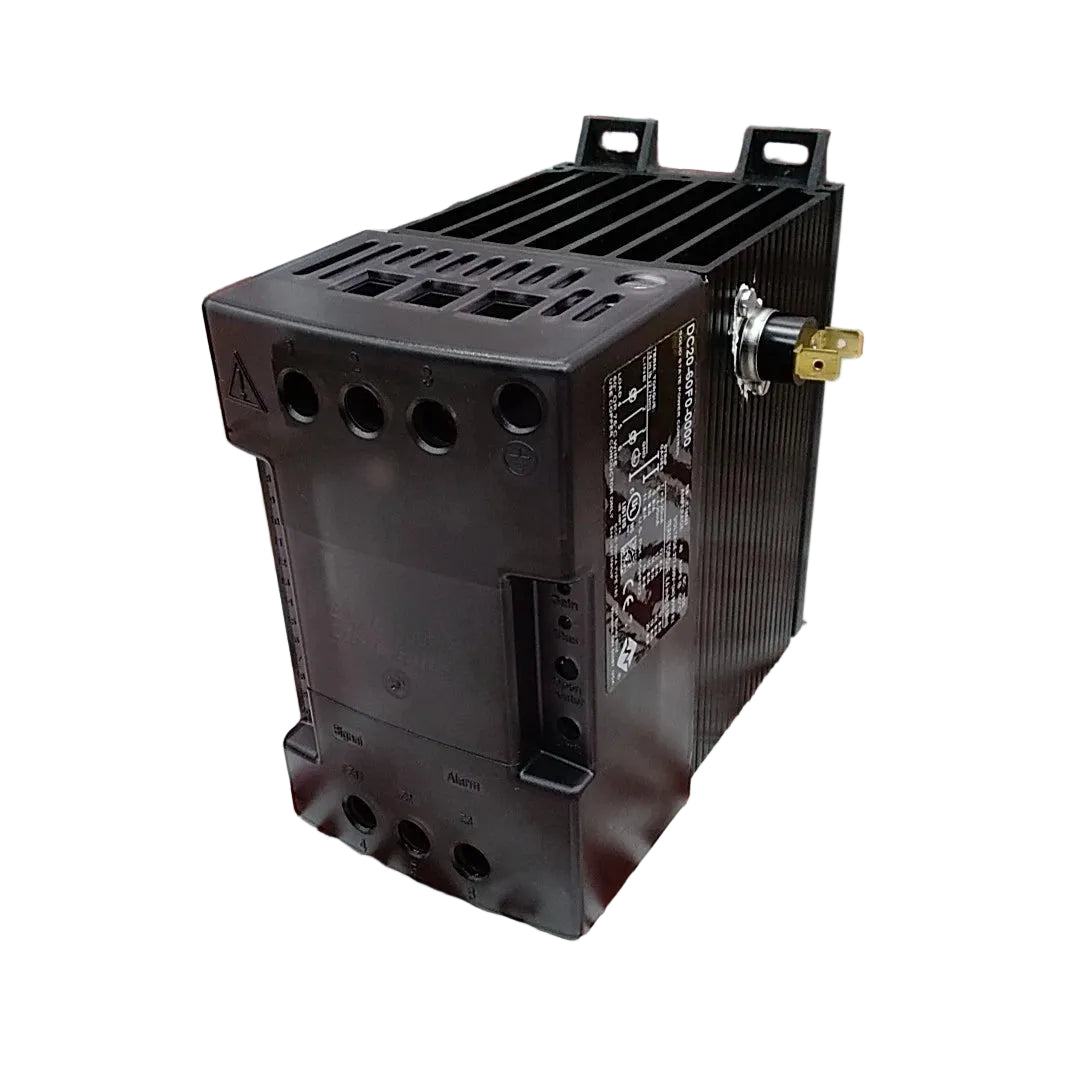

Watlow DC20-60F0-0000 DIN-A-MITE C Three-Phase SCR Power Controller
- Regular price
- $595.00
- Sale price
- $595.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DC20-60F0-0000
Description
Watlow DC20-60F0-0000 is a DIN-A-MITE C SCR power controller for regulating three-phase loads in industrial heating systems. It uses a 4–20 mA DC proportional input and a three-cycle variable time-base output, with a 277–600 VAC line and load voltage range.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Watlow |
| Category | Power Control |
| Part Number | DC20-60F0-0000 |
| Subcategory | SCR Power Controllers |
| Series | DIN-A-MITE C |
| Device type | SCR power controller |
| Phase | Three phase |
| Controlled legs | 2 |
| Current rating | 18 A at 50°C |
| Line and load voltage | 277–600 VAC |
| Frequency | 50/60 Hz |
| Control input | 4–20 mA DC |
| Output method | Three-cycle variable time base |
| Cooling | Natural convection |
| Mounting | DIN rail or panel |
| Weight | 0.41 kg |
Information About DC20-60F0-0000
The DC20-60F0-0000 belongs to Watlow’s DIN-A-MITE C power controller series and controls two legs of a three-phase load. Its SCR switching design supports proportional load control from an analog current command. The unit is rated for 18 A at 50°C with natural-convection cooling and an integrated heat sink. This configuration has no alarm option and supports DIN-rail or panel mounting.
Key Features:
-
Three-Phase Operation: Supports three-phase AC power systems with two controlled legs.
-
SCR Power Switching: Uses solid-state thyristor technology to regulate electrical power supplied to compatible loads.
-
High-Voltage Compatibility: Supports line and load voltages from 277 to 600 VAC.
-
40 A Current Rating: Rated for 40 A at 50°C under specified operating conditions.
-
Analog Control Input: Accepts a proportional 4–20 mA DC signal from a compatible temperature or process controller.
-
Zero-Cross Switching: Uses variable time-base switching synchronized with AC zero crossings to control power delivery.
-
Natural-Convection Cooling: Uses passive cooling with a compatible DIN-rail or panel heat-sink mounting arrangement.
-
Flexible Installation: Supports DIN-rail and panel mounting for integration into industrial control cabinets.
-
No Alarm Function: This configuration does not include an integrated alarm option.
The DC20-60F0-0000 delivers reliable solid-state power regulation for three-phase industrial heating and temperature-control applications.
