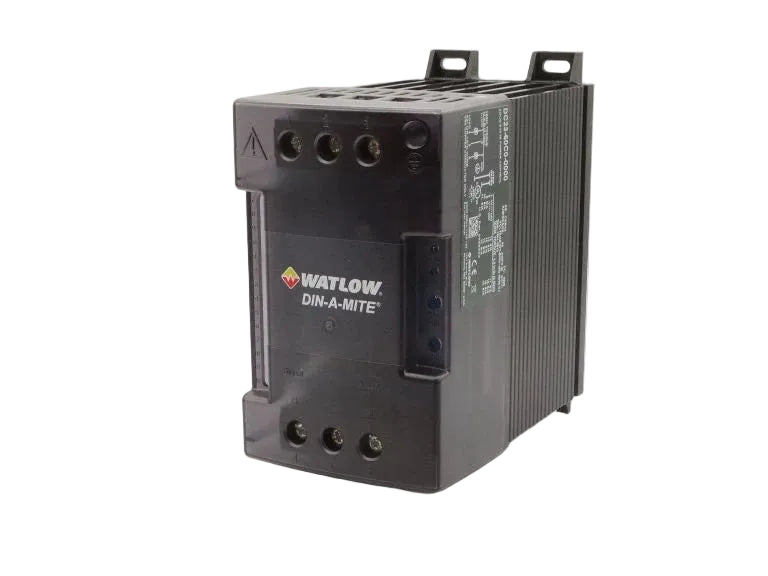

Watlow DC23-60C0-0000 DIN-A-MITE C Three-Phase Solid-State Power Controller with Two Controlled Legs
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DC23-60C0-0000
Description
Watlow DC23-60C0-0000 is a DIN-A-MITE C solid-state power controller for switching three-phase electric heating loads through two controlled legs. It accepts a 4.5–32-volt direct current command and provides zero-cross contactor operation for compatible resistive heating circuits.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Watlow |
| Category | Controls & Indicators |
| Part Number | DC23-60C0-0000 |
| Subcategory | SCR Power Control |
| Product Series | DIN-A-MITE C |
| Product Type | Solid-state power controller |
| Phase Configuration | Three-phase, two controlled legs |
| Switching Elements | Four silicon-controlled rectifiers |
| Current Rating | 65 amperes per controlled leg at 50°C ambient |
| Nominal Line and Load Voltage | 277–600 volts alternating current |
| Line Frequency | 50/60 hertz |
| Control Input | 4.5–32 volts direct current |
| Output Function | Solid-state contactor |
| Switching Method | Zero-cross |
| Cooling Method | Fan-cooled integrated heat sink |
| Fan Supply | 24 volts direct current |
| Mounting Options | Standard DIN rail or back panel |
| Alarm and Documentation | No alarm; English documentation |
| Weight | 2.80 lbs |
Information About DC23-60C0-0000

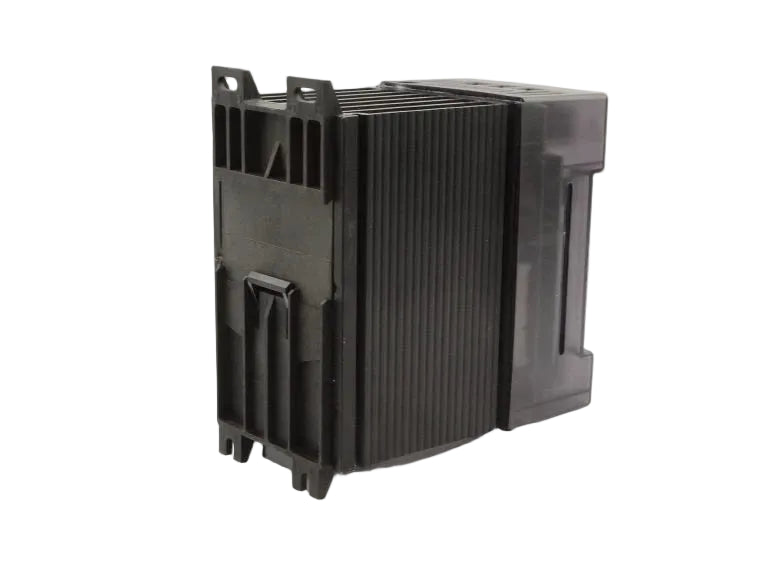

The DC23-60C0-0000 is a Style C model with four silicon-controlled rectifiers arranged across two switched power legs. Its integrated heat sink uses a 24-volt direct current cooling fan. The assembly supports standard DIN-rail or back-panel installation within a suitable electrical enclosure. This configuration has no alarm option and is specified with English documentation.
Key Features:
- Three-Phase Switching: Controls two legs of a compatible three-phase heating circuit.
- Solid-State Output: Switches load power electronically without mechanical contact operation.
- Zero-Cross Operation: Initiates switching near the alternating-current voltage zero crossing.
- Direct Current Command: Accepts a 4.5–32-volt input for contactor-style control.
- Defined Current Capacity: Rated for 65 amperes per controlled leg at 50°C ambient.
- Fan-Assisted Cooling: Uses a 24-volt direct current fan with the integrated heat sink.
- Flexible Mounting: Supports standard DIN-rail or back-panel installation.
- No Alarm Configuration: Supplied without the optional alarm function.
The DC23-60C0-0000 delivers the reliability and precision required for commanded power switching in compatible industrial electric heating systems.
