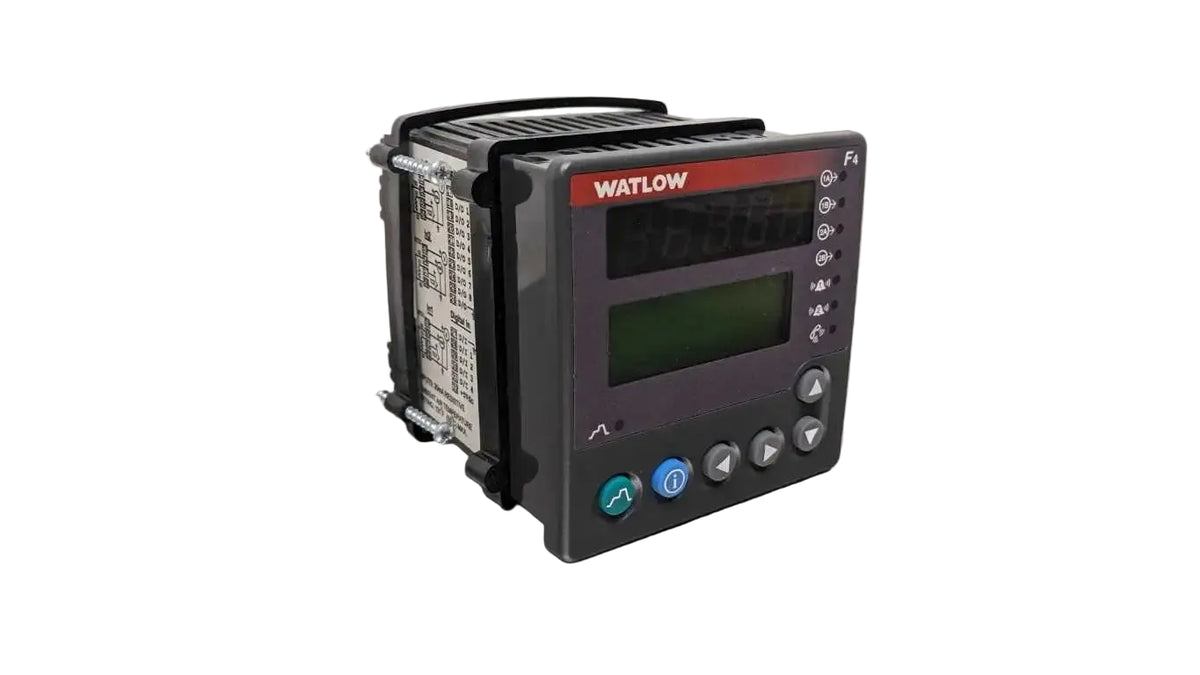

Watlow F4DH-KKKK-11RG Dual-Channel Ramping Temperature Controller
- Regular price
- $4,999.00
- Sale price
- $4,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: F4DH-KKKK-11RG
Description
Watlow F4DH-KKKK-11RG is a dual-channel ramping temperature controller for programmed thermal processes in chambers, furnaces, and ovens. It stores up to 40 profiles with 256 steps and accepts 100–240 VAC/VDC power.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Watlow |
| Category | Temperature and Process Control |
| Part Number | F4DH-KKKK-11RG |
| Subcategory | Ramping Temperature Controllers |
| Series | F4 |
| Controller configuration | Dual channel |
| Supply voltage | 100–240 VAC/VDC |
| Analog inputs | 3 universal |
| Digital event inputs | 4 |
| Digital event outputs | 8 |
| Relay outputs | 4 solid-state relays, Form A, 0.5 A each |
| Communications | EIA-232/485 Modbus |
| Alarm channels | 2 |
| Profile memory | 40 profiles, 256 steps |
| Display | Red/green, four-line LCD |
| Mounting format | 1/4 DIN panel mount |
| Weight | 0.91 kg |
Information About F4DH-KKKK-11RG
The F4DH-KKKK-11RG is part of Watlow’s F4 Series ramping controller line, designed for industrial process equipment requiring scheduled temperature changes. Its 1/4 DIN panel-mount design combines a four-line LCD interface with a 16-bit microprocessor for configuration and process control. Three universal analog inputs, four digital event inputs, and eight digital event outputs provide process and event connectivity. EIA-232/485 Modbus communications, two alarms, and four 0.5 A Form A solid-state relay outputs are included in this configuration.
Key Features:
-
Dual-Channel Control: Regulates two independent process channels for complex temperature-control applications.
-
Ramp-and-Soak Programming: Supports up to 40 programmable profiles with 256 steps for controlled heating and holding sequences.
-
Universal Inputs: Provides three universal analog inputs for compatible temperature sensors and process signals.
-
Solid-State Relay Outputs: Includes four Form A solid-state relay outputs rated at 0.5 A each.
-
Wide Power Supply Range: Operates on 100–240 VAC/VDC power.
-
Digital Event Inputs: Supports four digital event inputs for external control and process sequencing.
-
Digital Event Outputs: Provides eight digital event outputs for programmable process events.
-
Serial Communications: Supports EIA-232/485 Modbus communication for integration with compatible control systems.
-
Red/Green Display: Features a four-line LCD interface with red/green display elements for configuration and monitoring.
The F4DH-KKKK-11RG delivers precise programmable temperature regulation for industrial furnaces, ovens, environmental chambers, and multi-stage thermal processing systems.
