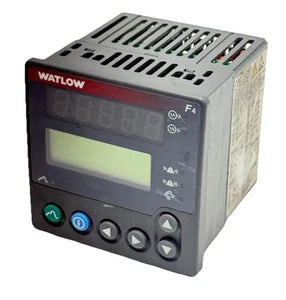

Watlow F4SH-CCA0-01RG Series F4S Single-Channel Ramping Controller with Two Switched DC Outputs
- Regular price
- $3,022.00
- Sale price
- $3,022.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: F4SH-CCA0-01RG
Description
The Watlow F4SH-CCA0-01RG is a single-channel ramping controller for managing programmed temperature and process cycles in ovens, furnaces, and environmental chambers. Its two open collector/switched DC outputs drive compatible external switching devices during controlled ramps and soak periods.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Watlow |
| Category | Controls & Indicators |
| Part Number | F4SH-CCA0-01RG |
| Subcategory | Temperature/Process Control |
| Alternate Part Number | F4SHCCA001RG |
| Series | F4S |
| Controller Type | Single-channel ramp-and-soak controller |
| Mounting Format | 1/4 DIN panel mount |
| Supply Voltage | 100–240 VAC/VDC |
| Analog Input | One universal analog input |
| Output 1A | Open collector/switched DC |
| Output 1B | Open collector/switched DC |
| Auxiliary Modules | No auxiliary input module; no retransmit module |
| Profile Capacity | Up to 40 profiles; 256 total programmable steps |
| Digital Events / Alarms | Four digital event inputs, eight digital event outputs, and two alarms |
| Communications | EIA-232/EIA-485 Modbus |
| Processor | 16-bit microprocessor |
| Interface / Sensor Option | Red/green indication with four-line LCD; English language; 100 Ω RTD option |
| Weight | 0.77 lbs |
Information About F4SH-CCA0-01RG
The F4SH-CCA0-01RG is a Series F4S instrument built around a 16-bit microprocessor in a 1/4 DIN panel-mounted enclosure. One universal analog input accepts supported temperature sensors and process signals, with this configuration specifying the 100 Ω RTD option. Its English-language interface combines red/green indication with a four-line LCD for guided setup and profile editing. Digital event connections and EIA-232/EIA-485 Modbus communication support coordination with auxiliary equipment and supervisory systems.
Key Features:
- Single-Channel Regulation: Controls one measured process variable through programmed or fixed-setpoint operation.
- Ramp-and-Soak Memory: Stores up to 40 profiles sharing a total of 256 programmable steps.
- Two Electronic Outputs: Provides open collector/switched DC hardware at Output 1A and Output 1B.
- Universal Analog Input: Accepts compatible thermocouple, RTD, and analog process signals.
- Guided Programming: Uses a four-line LCD and English menus for configuration and profile entry.
- Digital Event Control: Includes four digital event inputs and eight digital event outputs.
- Alarm Functions: Provides two alarms for monitoring configured process conditions.
- Serial Integration: Supports Modbus communication through an EIA-232/EIA-485 interface.
The F4SH-CCA0-01RG delivers the reliability and precision required for repeatable thermal cycles and single-channel industrial process regulation.
