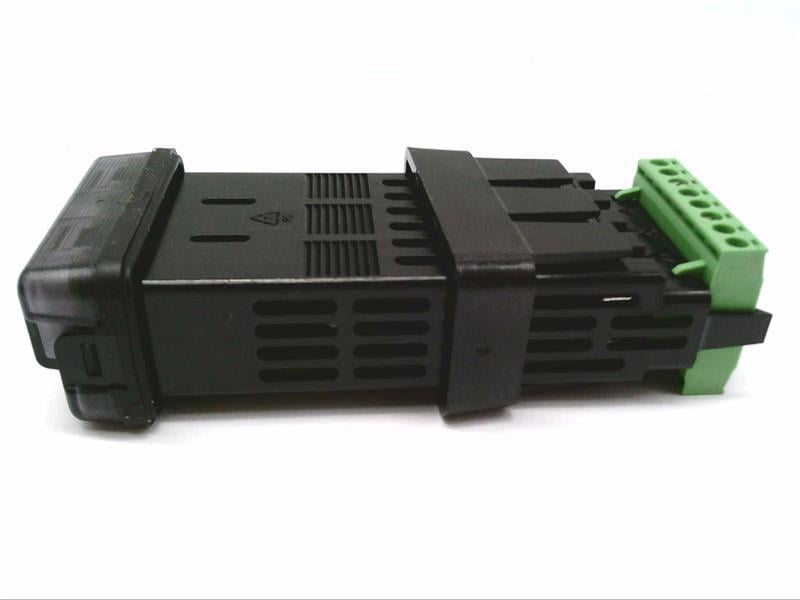

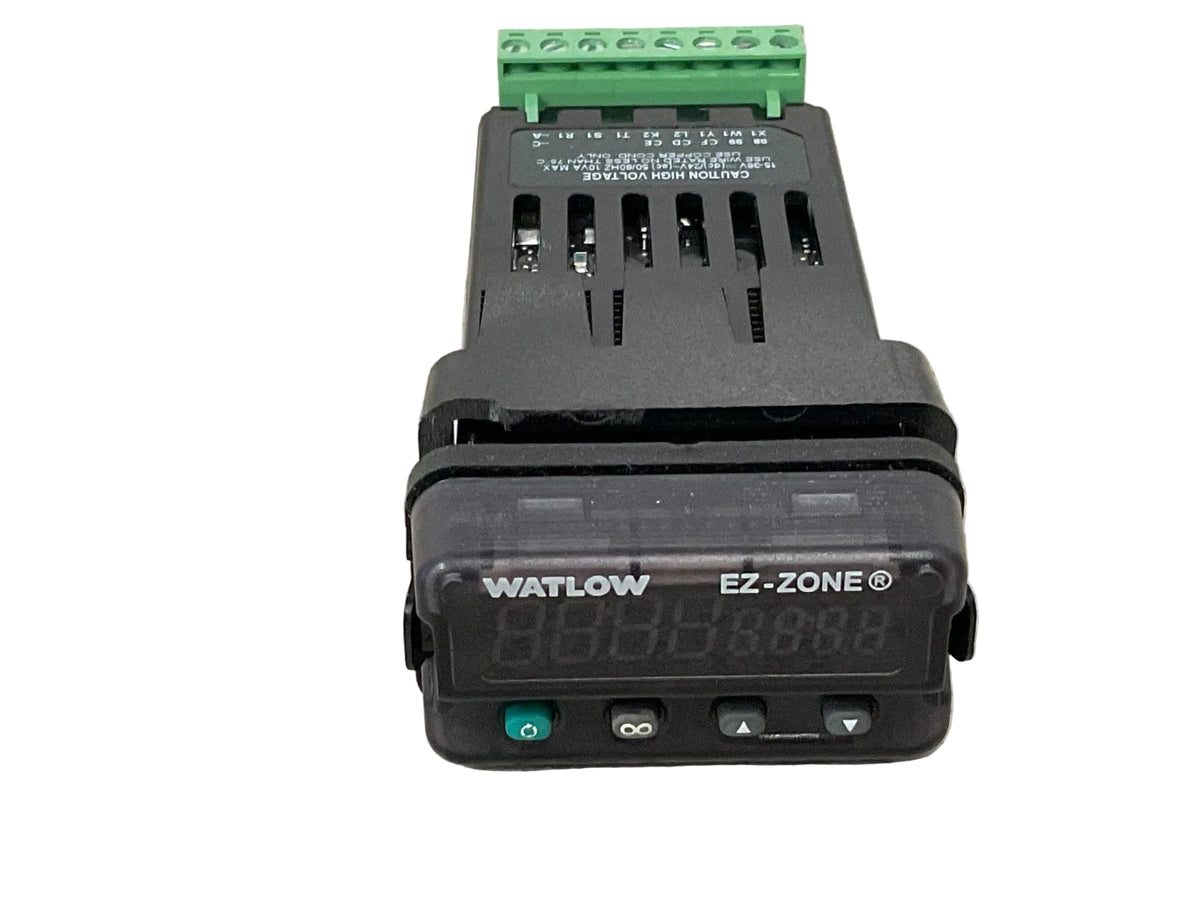

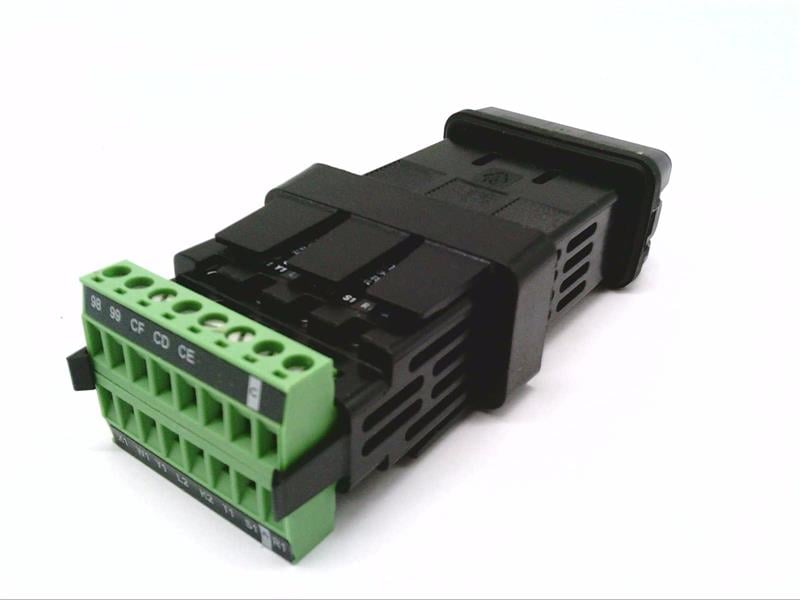

Watlow PM3C3CJ-AAAAAAA EZ-ZONE PM PID Temperature Controller with Switched DC and Mechanical Relay Outputs
- Regular price
- $532.00
- Sale price
- $532.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PM3C3CJ-AAAAAAA
Description
The Watlow PM3C3CJ-AAAAAAA is a compact temperature/process controller for single-loop regulation in industrial equipment powered by a low-voltage supply. It combines a universal sensor input with switched DC/open collector and mechanical relay outputs to manage connected control devices.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Watlow |
| Category | Controls & Indicators |
| Part Number | PM3C3CJ-AAAAAAA |
| Subcategory | Temperature/Process Control |
| Alternate Part Number | PM3C3CJAAAAAAA |
| Series | EZ-ZONE PM |
| Controller Type | Single-loop PID temperature/process controller |
| Mounting Format | 1/32 DIN panel mount |
| Input Configuration | One universal sensor input |
| Input Compatibility | Supported thermocouple, RTD, voltage, and current signals |
| Control Modes | PID and on/off |
| Tuning Function | Automatic PID tuning |
| Power Supply | 15–36 VDC or 24 VAC nominal |
| AC Supply Frequency | 50/60 Hz |
| Output 1 | Switched DC/open collector |
| Output 2 | Mechanical relay, 5 A, Form A, normally open |
| Display / Faceplate | Red/green seven-segment displays / standard faceplate |
| Communications / Lifecycle | Standard Bus configuration interface; no optional network communications / discontinued by manufacturer |
| Weight | 0.30 lbs |
Information About PM3C3CJ-AAAAAAA
The PM3C3CJ-AAAAAAA is a standard EZ-ZONE PM PID model housed in a 1/32 DIN panel-mounted enclosure with a standard faceplate. Its configurable input supports compatible thermocouples, RTDs, and analog process signals for different measurement applications. Automatic tuning establishes PID parameters, while the red/green seven-segment displays provide local process and setpoint indication. This configuration has no optional network communications, although Standard Bus supports configuration through compatible Watlow software.
Key Features:
- Single-Loop PID Regulation: Adjusts the configured outputs according to the measured process value and selected setpoint.
- Universal Input: Accepts supported temperature sensors and analog process signals.
- Automatic Tuning: Determines PID settings to suit the response of the connected equipment.
- Switched DC/Open Collector Output: Provides Output 1 for driving a compatible external switching device.
- Mechanical Relay Output: Includes a 5 A Form A normally open relay at Output 2.
- Low-Voltage Operation: Uses a 15–36 VDC or nominal 24 VAC power supply.
- Dual-Color Indication: Displays operating values and settings through red/green seven-segment readouts.
- Compact Installation: Uses a 1/32 DIN panel format for equipment with limited mounting space.
The PM3C3CJ-AAAAAAA delivers the reliability and precision required for localized temperature regulation and industrial process control.
