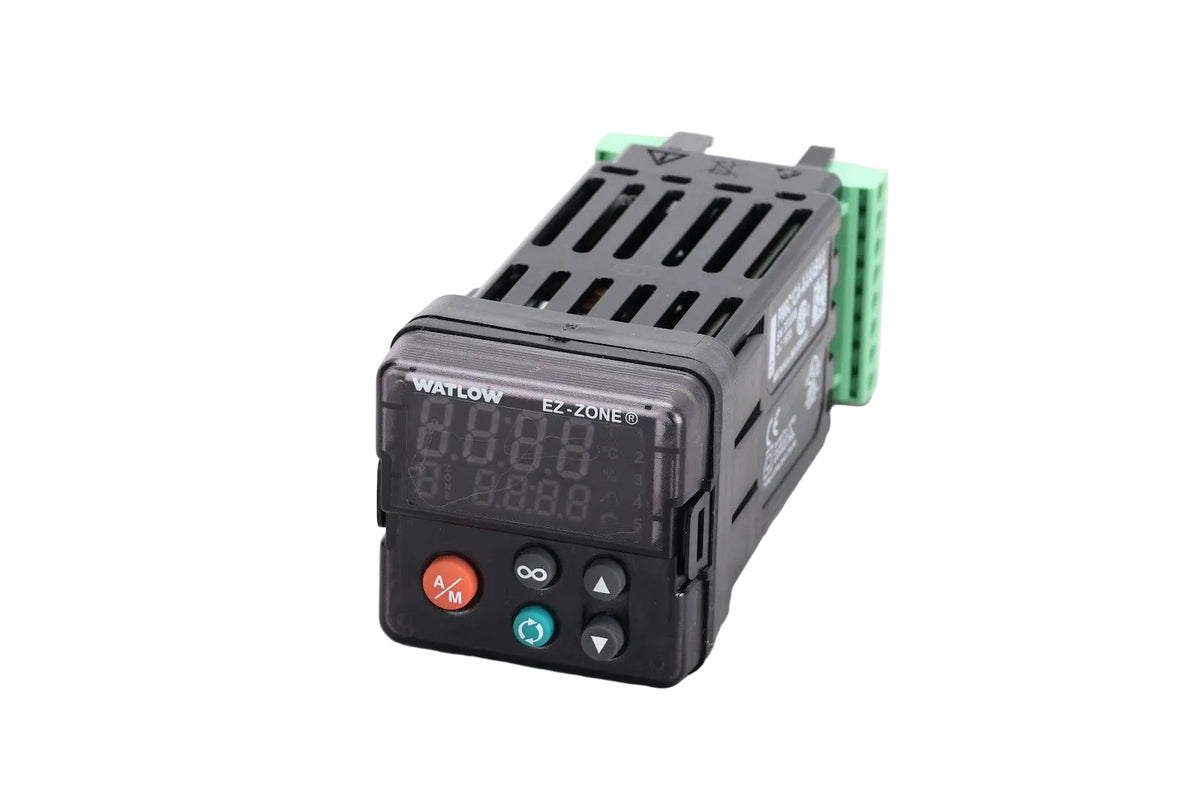

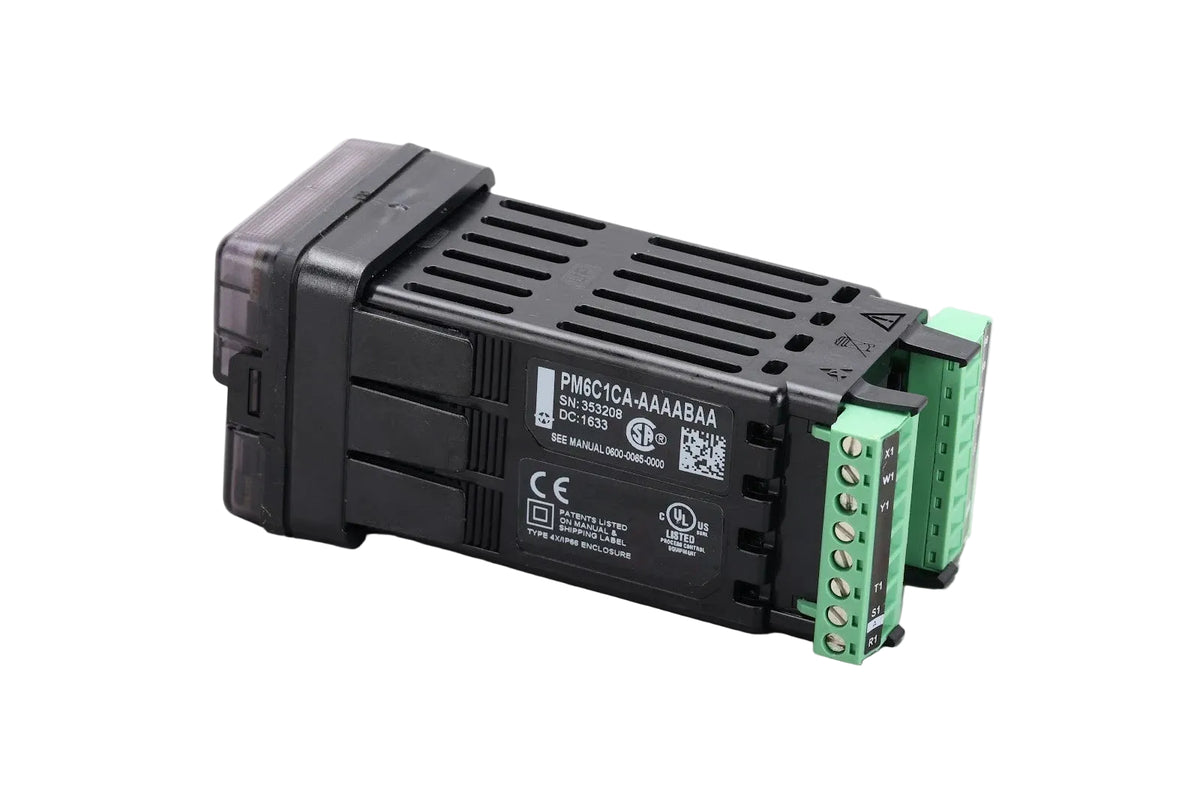

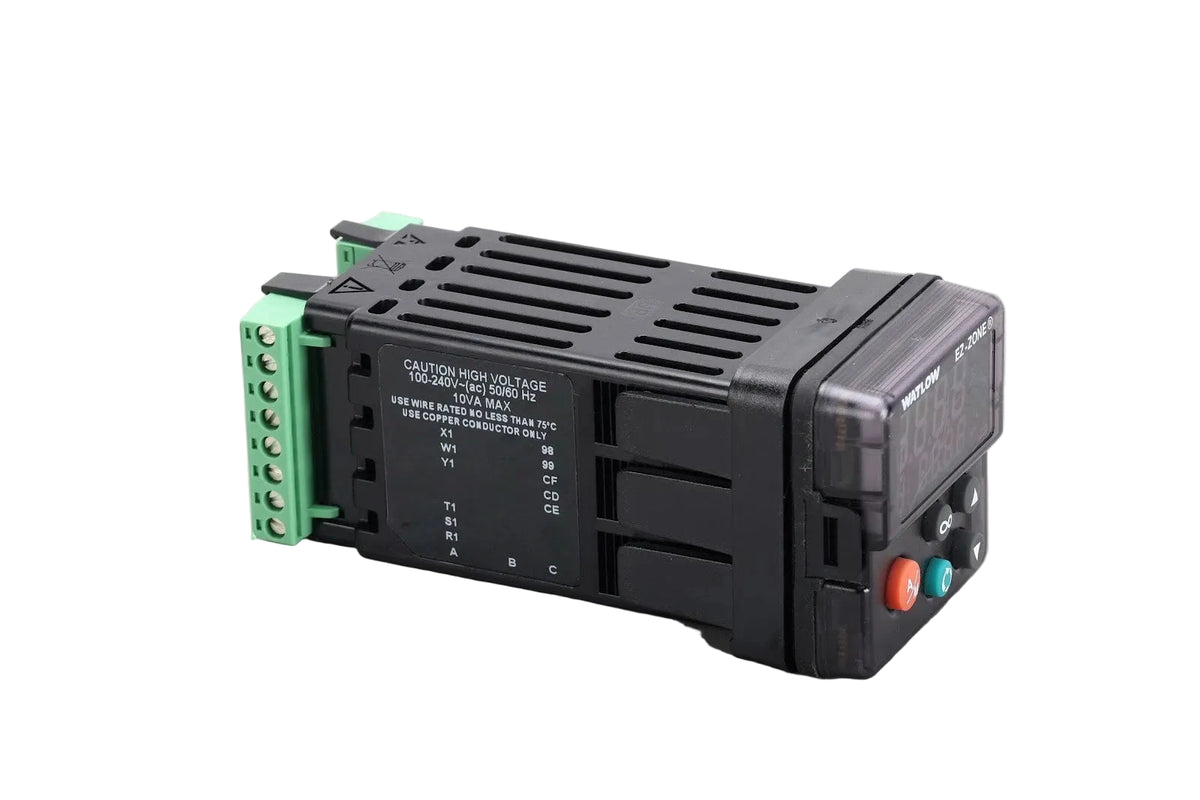

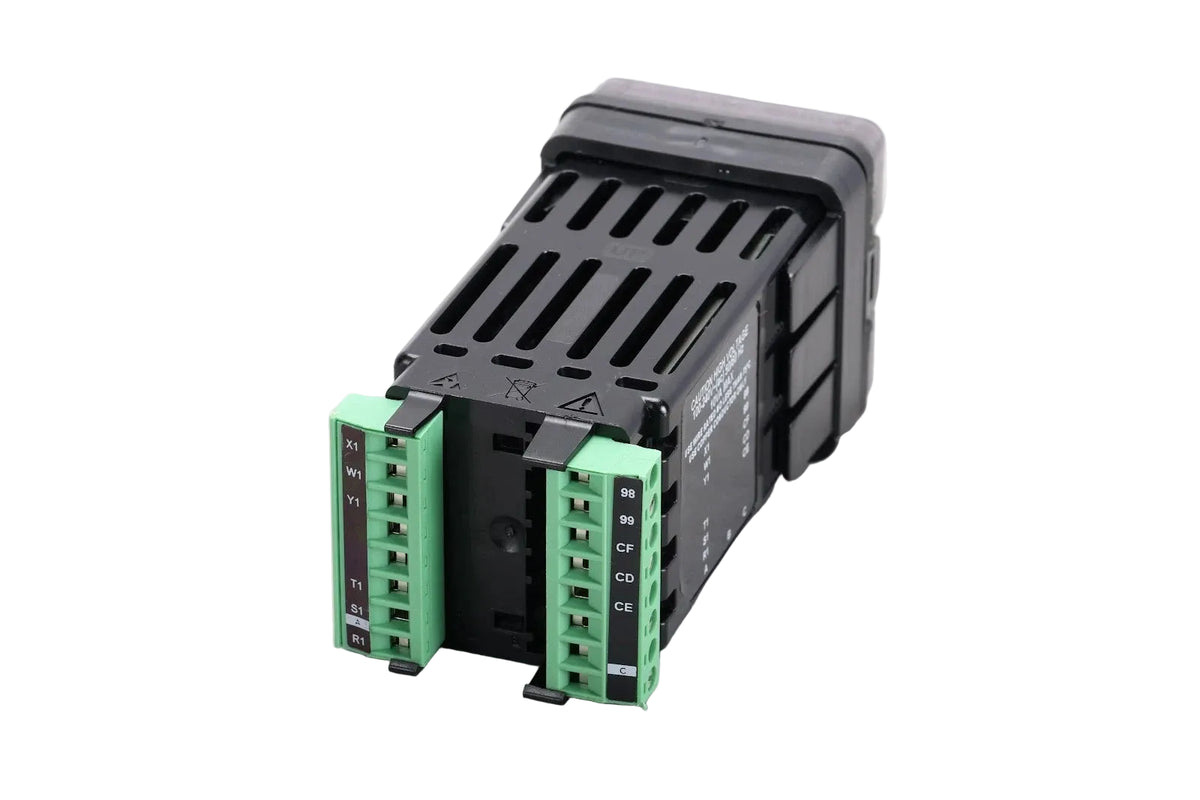

Watlow PM6C1CA-AAAABAA EZ-ZONE PM Express PID Temperature Controller with Switched DC/Open Collector Output
- Regular price
- $569.00
- Sale price
- $569.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PM6C1CA-AAAABAA
Description
The Watlow PM6C1CA-AAAABAA is an EZ-ZONE PM Express temperature/process controller that regulates a single process through a switched DC/open collector output. It combines automatic PID tuning with local digital indication for industrial equipment using a compatible external power-switching device.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Watlow |
| Category | Controls & Indicators |
| Part Number | PM6C1CA-AAAABAA |
| Subcategory | Temperature/Process Control |
| Alternate Part Number | PM6C1CAAAAABAA |
| Series | EZ-ZONE PM Express |
| Product Type | Single-loop PID temperature/process controller |
| Mounting Format | 1/16 DIN panel mount |
| Input Configuration | One universal input |
| Input Compatibility | Supported thermocouple, platinum RTD, voltage, and current signals |
| Control Modes | PID and on/off; automatic PID tuning |
| Supply Voltage | 100–240 VAC |
| Supply Frequency | 50/60 Hz |
| Output Configuration | Output 1: switched DC/open collector; Output 2: none |
| Display | Red/green seven-segment digital displays |
| Communications | No optional network communications; Standard Bus configuration interface |
| Menu / Faceplate | Express menu / standard Watlow faceplate |
| Lifecycle / Listed Replacement | Discontinued / PM6C1CA-AAAAPWP, order number 2102-1961; verify retrofit compatibility |
| Weight | 0.88 lbs |
Information About PM6C1CA-AAAABAA
The PM6C1CA-AAAABAA is a 1/16 DIN panel-mounted model with the Express menu and standard Watlow faceplate. Its universal input accepts supported thermocouples, platinum RTDs, and analog process signals, allowing configuration for different measurement sources. Output 1 provides switched DC/open collector operation, while Output 2 is unpopulated. The red/green seven-segment displays support local operation, and the Standard Bus interface provides configuration access alongside the model’s selection of no optional network communications.
Key Features:
- Single-Loop Control: Regulates one measured temperature or process variable against an adjustable setpoint.
- Universal Sensor Input: Supports compatible thermocouple, RTD, voltage, and current signals.
- Automatic PID Tuning: Calculates control parameters based on the connected process response.
- Selectable Operating Modes: Provides PID and on/off control for different application requirements.
- Switched DC/Open Collector Output: Supplies a control signal for a compatible external switching device.
- Express Parameter Menu: Presents essential setup and operating settings through the front panel.
- Red/Green Digital Displays: Shows process readings, setpoints, and configuration information.
- Compact Panel Format: Fits a 1/16 DIN installation and uses a nominal 100–240 VAC supply.
The PM6C1CA-AAAABAA delivers the reliability and precision required for single-loop thermal regulation and industrial process control.
