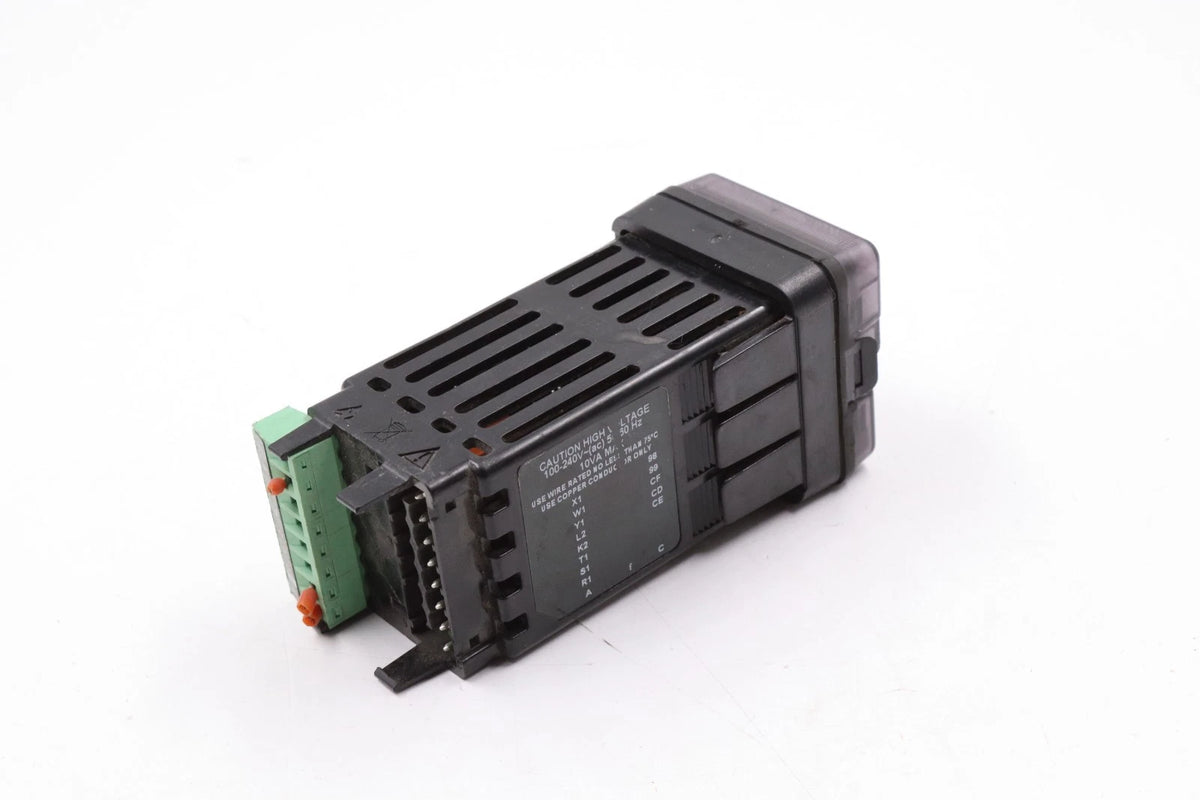

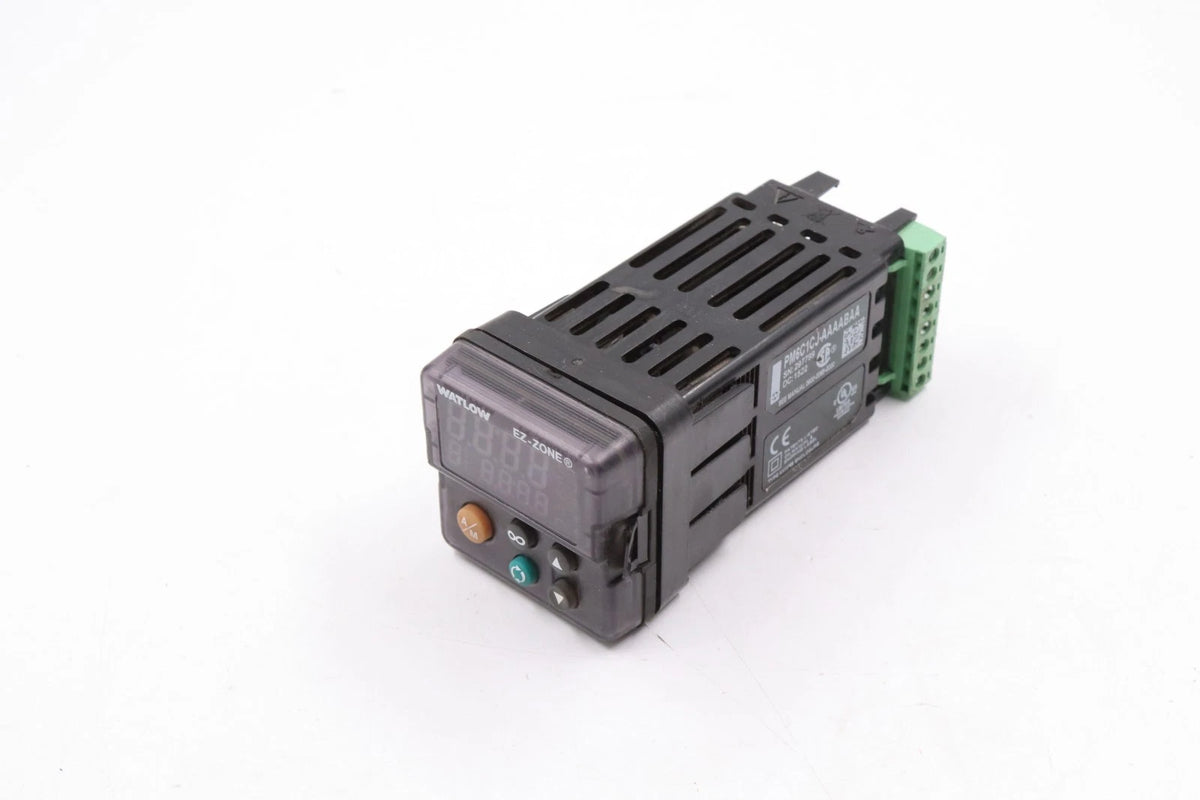

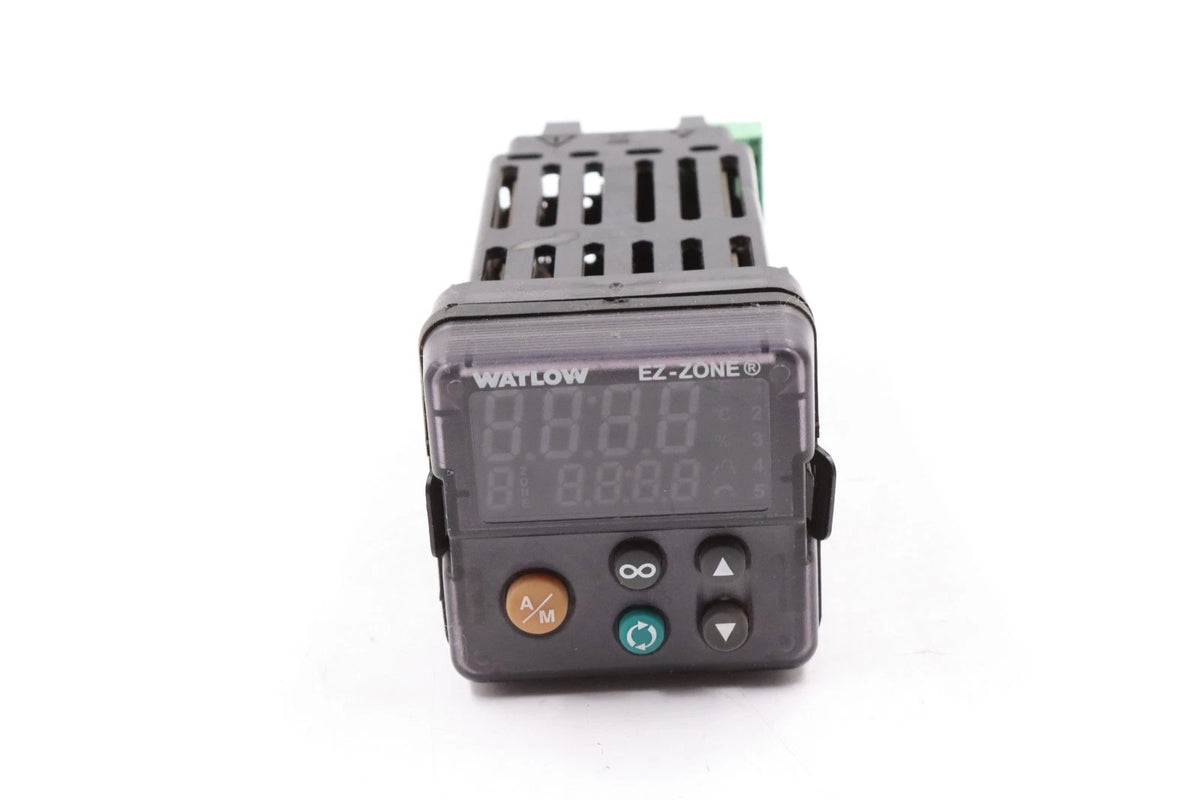

Watlow PM6C1CJ-AAAABAA EZ-ZONE PM Express PID Controller with Universal Input and Dual Outputs
- Regular price
- $855.00
- Sale price
- $855.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PM6C1CJ-AAAABAA
Description
The Watlow PM6C1CJ-AAAABAA is an EZ-ZONE PM Express PID controller for regulating temperature and other measured process variables in industrial equipment. It combines one universal input with a switched DC/open collector output and a mechanical relay output in a compact panel-mounted enclosure.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Watlow |
| Category | Controls & Indicators |
| Part Number | PM6C1CJ-AAAABAA |
| Subcategory | Temperature/Process Control |
| Alternate Part Number | PM6C1CJAAAABAA |
| Series | EZ-ZONE PM Express |
| Product Type | Single-loop temperature/process PID controller |
| Mounting Format | 1/16 DIN panel mount |
| Primary Input | One universal sensor input |
| Input Compatibility | Supported thermocouple, RTD, voltage, and current signals |
| Control Feature | PID control with auto-tuning |
| Supply Voltage | 100–240 VAC |
| Supply Frequency | 50/60 Hz |
| Output 1 | Switched DC/open collector |
| Output 2 | Mechanical relay, 5 A, Form A, normally open |
| Display | Red/green seven-segment digital display |
| Communications | No optional network communications; Standard Bus configuration interface |
| Menu / Faceplate | Express menu / standard faceplate |
| Lifecycle Status | Discontinued by manufacturer |
| Weight | 1.00 lbs |
Information About PM6C1CJ-AAAABAA
The PM6C1CJ-AAAABAA is a single-loop controller in Watlow’s EZ-ZONE PM Express series, built in a 1/16 DIN format with a standard faceplate. Its universal sensor input supports compatible thermocouples, RTDs, and analog process signals for different measurement applications. The Express menu provides access to essential operating parameters, while PID auto-tuning helps establish control settings for the connected process. This configuration includes a red/green seven-segment display and no optional network communications, although the platform provides a Standard Bus configuration interface.
Key Features:
- Single-Loop PID Control: Regulates one measured process variable against an adjustable setpoint.
- Universal Sensor Input: Accepts supported thermocouple, RTD, and analog process signals.
- PID Auto-Tuning: Determines control parameters to match the response of the connected equipment.
- Switched DC/Open Collector Output: Provides Output 1 for driving compatible external switching devices.
- Mechanical Relay Output: Provides Output 2 through a 5 A Form A normally open relay.
- Express Setup Menu: Presents essential configuration and operating settings through the front panel.
- Red/Green Display: Uses seven-segment digital indication for process readings and settings.
- Compact Panel Installation: Fits a 1/16 DIN mounting format and operates from 100–240 VAC at 50/60 Hz.
The PM6C1CJ-AAAABAA delivers the reliability and precision required for single-loop temperature regulation and industrial process control.
