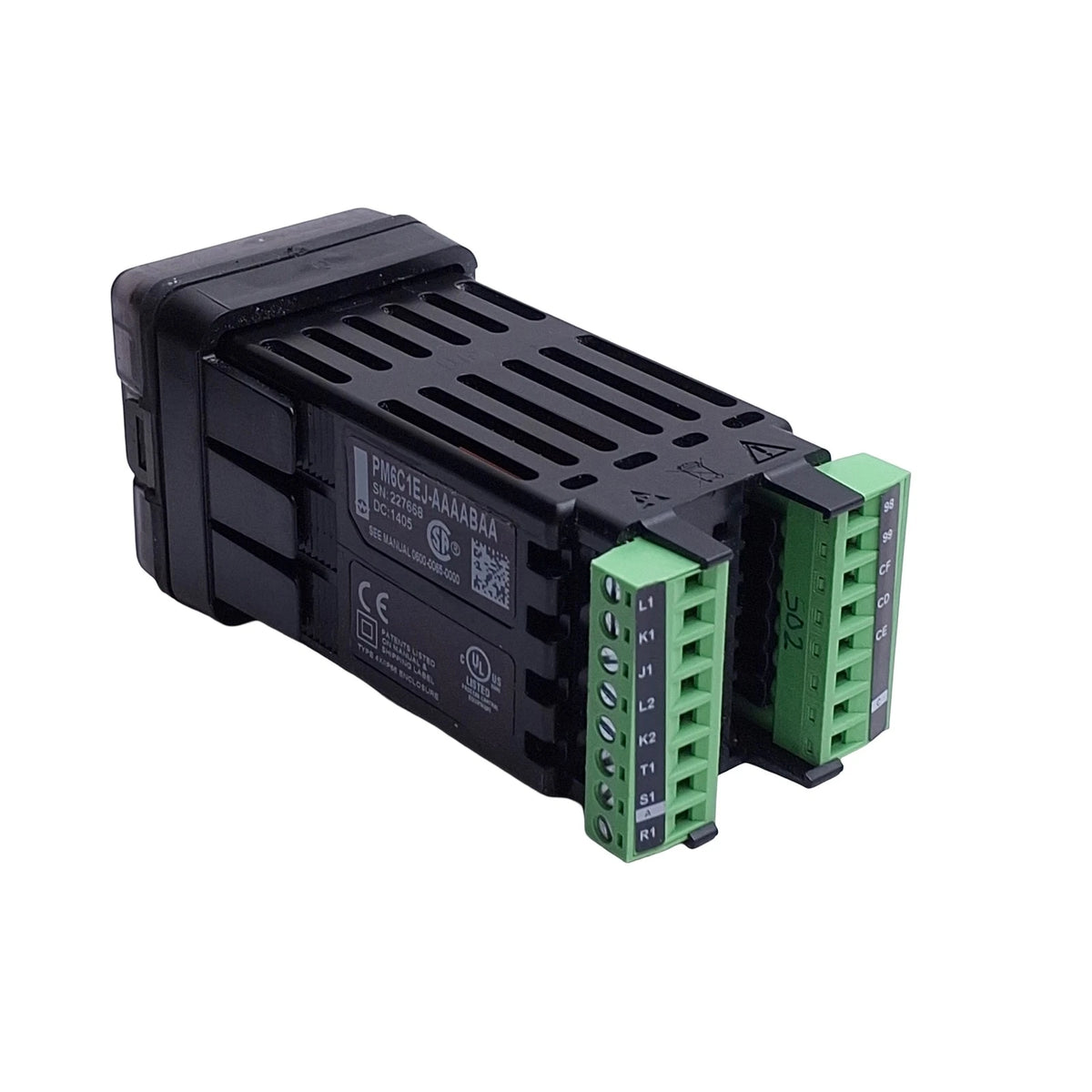

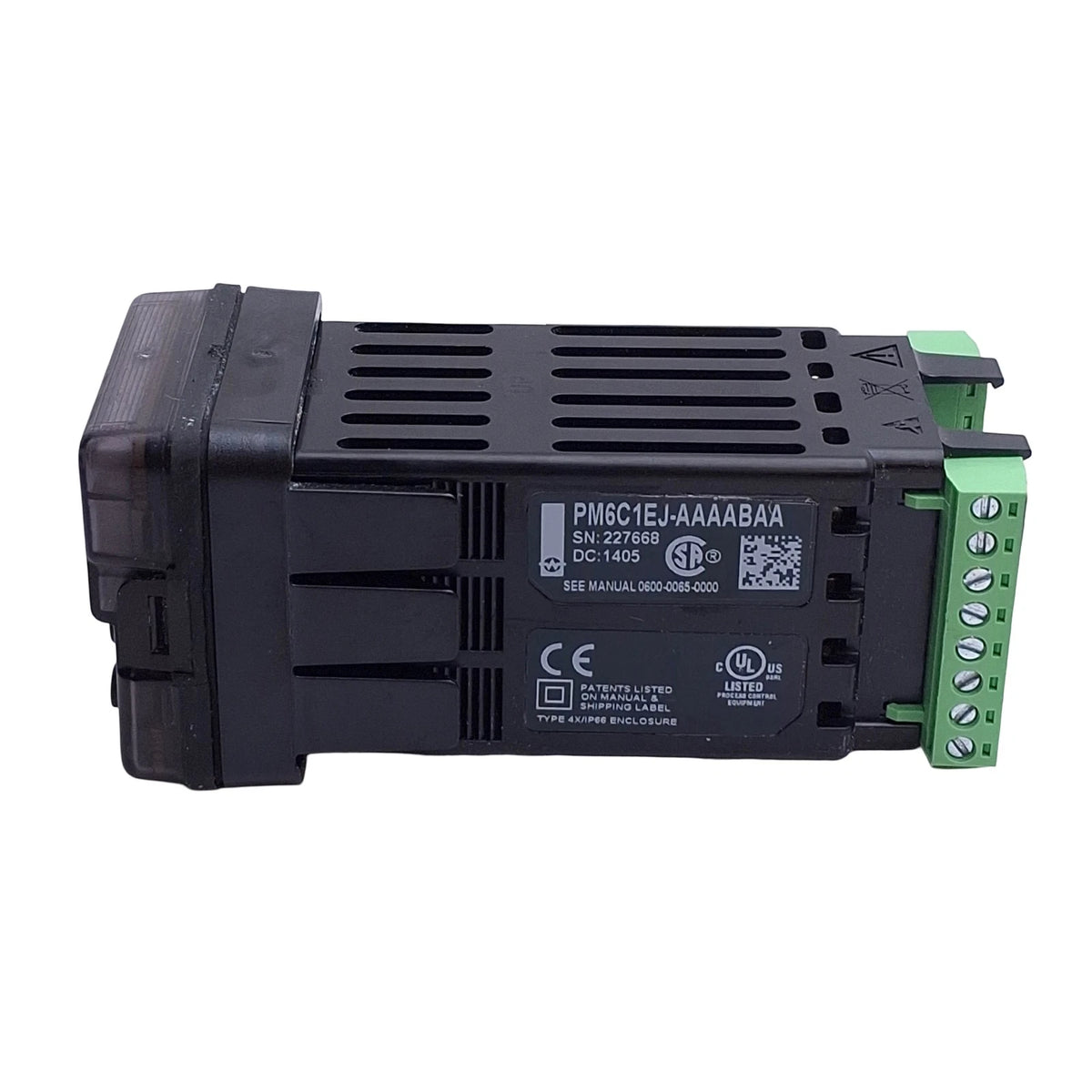

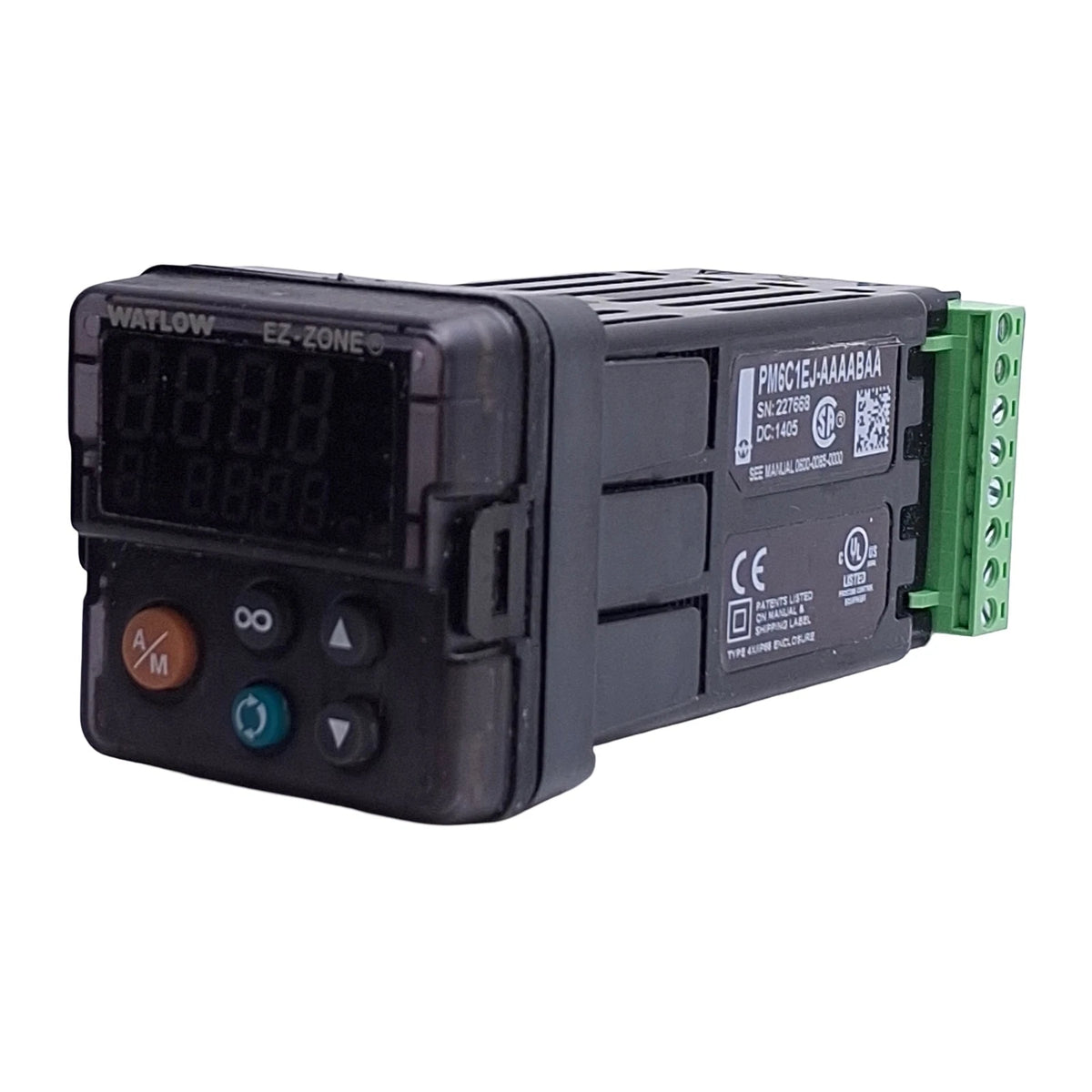

Watlow PM6C1EJ-AAAABAA EZ-ZONE PM Express PID Temperature Controller with Two Mechanical Relay Outputs
- Regular price
- $969.00
- Sale price
- $969.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PM6C1EJ-AAAABAA
Description
The Watlow PM6C1EJ-AAAABAA is a panel-mounted PID temperature/process controller with one universal input and two mechanical relay outputs. Designed for industrial heating and cooling equipment, it provides automatic tuning and selectable PID or on/off control to regulate a measured process against its setpoint.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Watlow |
| Category | Controls & Indicators |
| Part Number | PM6C1EJ-AAAABAA |
| Subcategory | Temperature/Process Control |
| Alternate Part Number | PM6C1EJAAAABAA |
| Series | EZ-ZONE PM Express |
| Controller Type | Single-loop PID temperature/process controller |
| Mounting Format | 1/16 DIN panel mount |
| Input Configuration | One universal input |
| Input Compatibility | Supported thermocouple, RTD, voltage, and current signals |
| Control Modes | PID and on/off; PID auto-tuning |
| Supply Voltage | 100–240 VAC |
| Supply Frequency | 50/60 Hz |
| Output 1 | Mechanical relay, 5 A, Form C |
| Output 2 | Mechanical relay, 5 A, Form A |
| Display / Faceplate | Red/green seven-segment displays / standard faceplate |
| Communications | No optional network communications; Standard Bus configuration interface |
| Lifecycle / Listed Replacement | Discontinued by manufacturer / PM6C1EJ-AAAAHWP; verify application compatibility |
| Weight | 0.40 lbs |
Information About PM6C1EJ-AAAABAA
The PM6C1EJ-AAAABAA is an EZ-ZONE PM Express series controller built in a 1/16 DIN enclosure with a standard faceplate. Its configurable input accommodates supported thermocouples, RTDs, and analog process signals for use with different measurement devices. Output 1 uses a 5 A Form C relay, while Output 2 uses a 5 A Form A relay. The Express interface combines a simplified parameter menu with red/green seven-segment displays for local setup and process monitoring.
Key Features:
- Single-Loop Regulation: Controls one temperature or process variable using an adjustable setpoint.
- Universal Input: Accepts compatible thermocouple, RTD, voltage, and current signals.
- Automatic PID Tuning: Establishes control parameters based on the response of the connected process.
- Selectable Control Modes: Provides PID or on/off operation to suit equipment requirements.
- Two Mechanical Relays: Includes a 5 A Form C primary output and a 5 A Form A secondary output.
- Express Parameter Menu: Provides access to essential settings through a streamlined front-panel interface.
- Dual Digital Displays: Presents process and setpoint information using red/green seven-segment indication.
- Panel-Mount Construction: Fits a 1/16 DIN opening and operates from 100–240 VAC at 50/60 Hz.
The PM6C1EJ-AAAABAA delivers the reliability and precision required for industrial temperature regulation and single-loop process control.
