Watlow PM6L1EJ-AAAABAA EZ-ZONE PM Express Limit Controller with Universal Input and Dual Relay Outputs
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PM6L1EJ-AAAABAA
Description

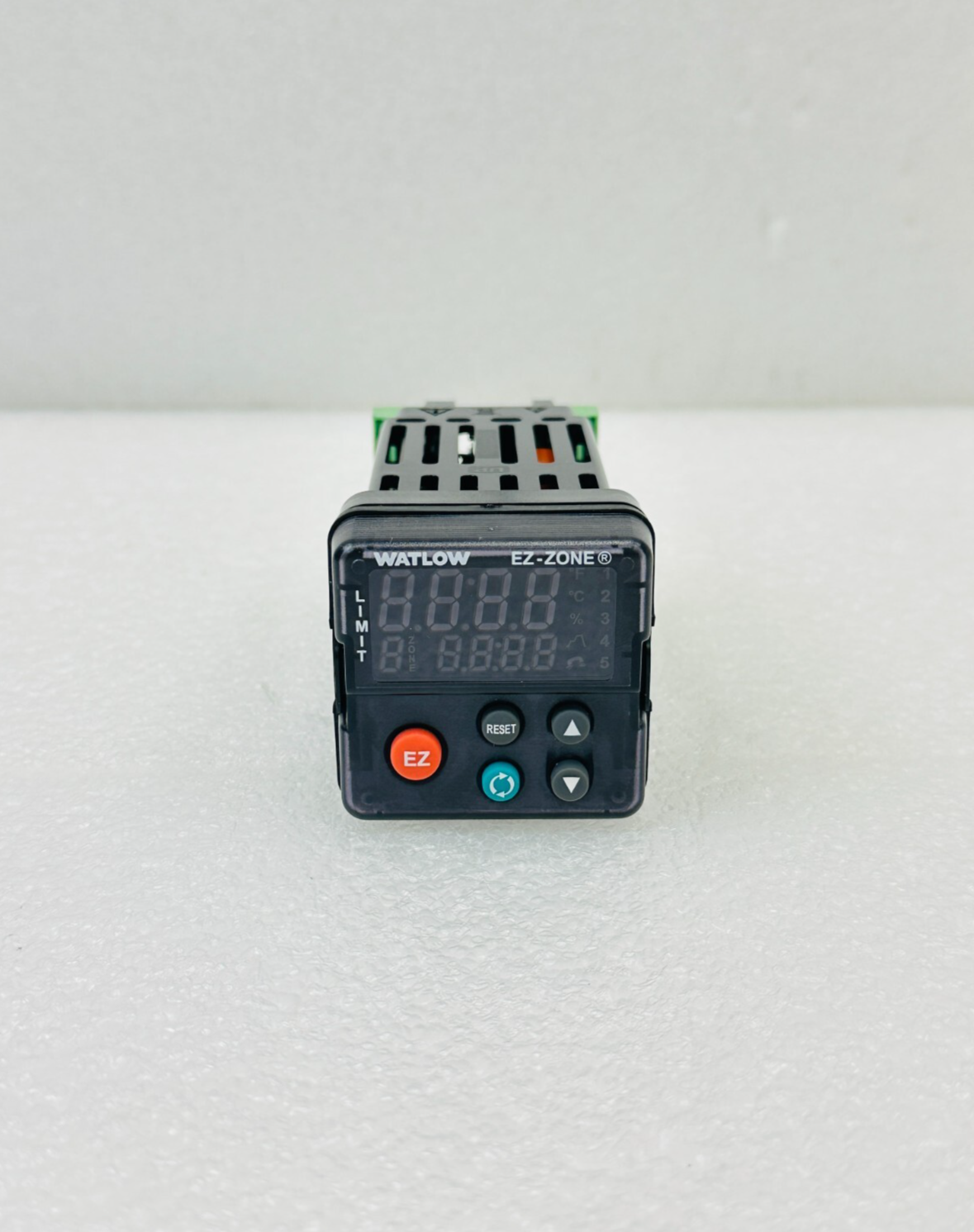

Watlow PM6L1EJ-AAAABAA is an EZ-ZONE PM Express limit controller that monitors temperature or process signals and operates a limit relay when configured thresholds are exceeded. It combines a universal input and two mechanical relay outputs in a 1/16 DIN panel-mounted package for equipment requiring independent limit monitoring.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Watlow |
| Category | Controls & Indicators |
| Part Number | PM6L1EJ-AAAABAA |
| Subcategory | Temperature/Process Control |
| Alternate Part Number | PM6L1EJAAAABAA |
| Product Series | EZ-ZONE PM Express |
| Primary Function | Single-loop limit controller with universal input |
| Mounting Format | 1/16 DIN panel mount |
| Input Compatibility | Supported thermocouple, RTD, and analog process signals |
| Supply Voltage | 100–240 VAC |
| Supply Frequency | 50/60 Hz |
| Output 1 | Mechanical relay, 5 A, Form C |
| Output 2 | Mechanical relay, 5 A, Form A; dedicated limit output |
| Relay Load Rating | 5 A resistive at 24–240 VAC or up to 30 VDC |
| Display | Dual four-digit red/green seven-segment LED displays |
| Communications | No optional network communications; Standard Bus configuration interface |
| Menu / Faceplate | Express menu / standard EZ-ZONE faceplate |
| Lifecycle / Listed Replacement | Discontinued / PM6L1EJ-BAAAGWP; verify retrofit requirements |
| Weight | 1.00 lbs |
Information About PM6L1EJ-AAAABAA
The PM6L1EJ-AAAABAA is a single-loop limit controller in Watlow’s EZ-ZONE PM Express series. Its universal sensor input supports compatible thermocouples, RTDs, and analog process signals. The EJ hardware configuration provides a 5 A Form C relay at Output 1 and a 5 A Form A relay at Output 2, with Output 2 assigned to the limit function. This version includes the simplified Express menu, red/green seven-segment displays, and the standard EZ-ZONE faceplate.
Key Features:
- Limit Monitoring: Compares the measured process value with configured high or low limit settings.
- Universal Input: Accepts compatible temperature sensors and analog process signals.
- Dedicated Limit Output: Uses Output 2 for the limit relay function.
- Dual Mechanical Relays: Includes a 5 A Form C relay and a 5 A Form A relay.
- Local Reset: Provides a front-panel reset key for clearing eligible limit conditions.
- Dual-Line Display: Shows operating values and settings through red/green seven-segment readouts.
- Express Menu: Provides a simplified parameter structure for limit-controller setup.
- Panel Installation: Uses a 1/16 DIN mounting format for equipment control cabinets.
The PM6L1EJ-AAAABAA delivers the reliability and precision required for temperature and process limit monitoring in compatible industrial equipment.
