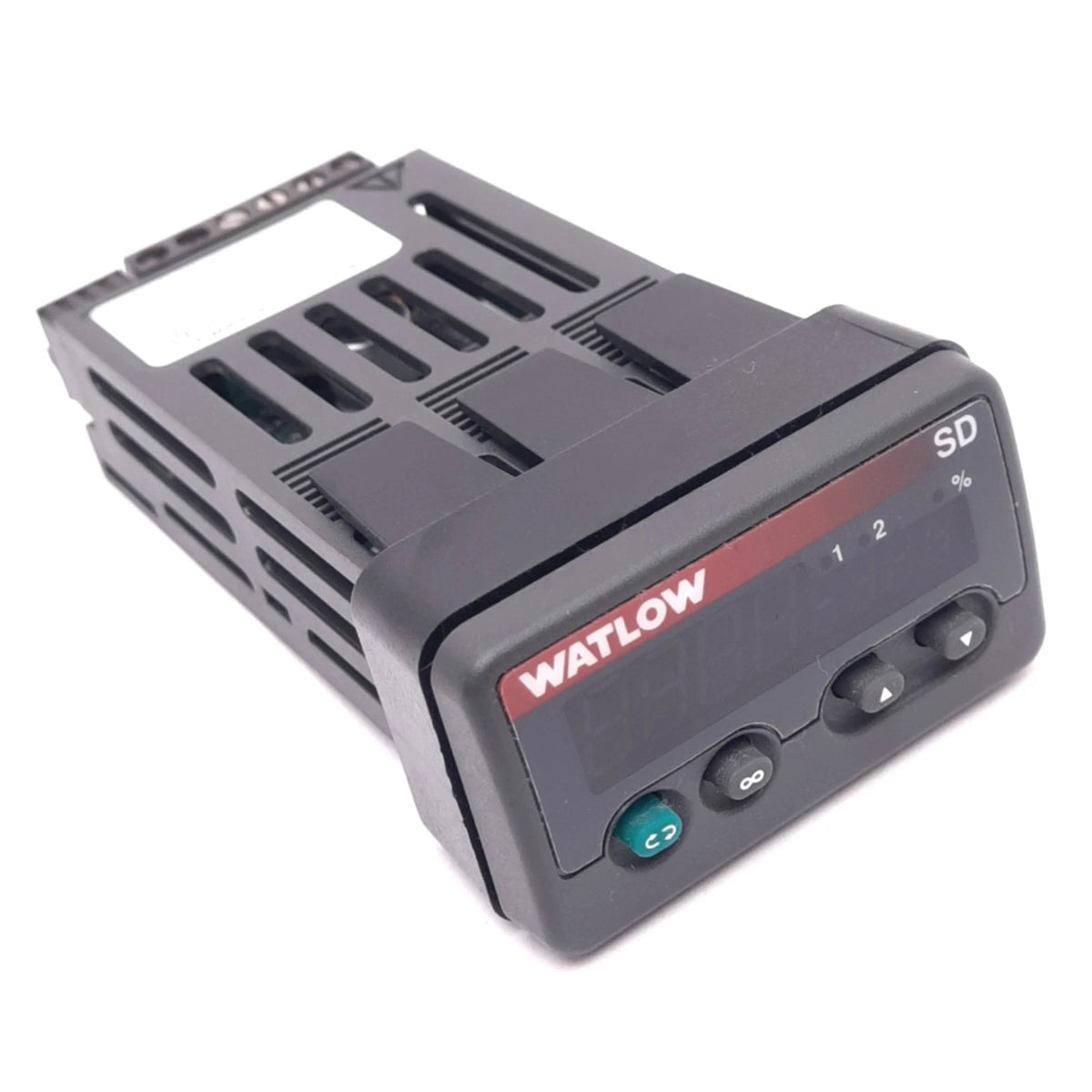

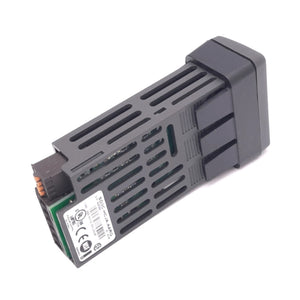

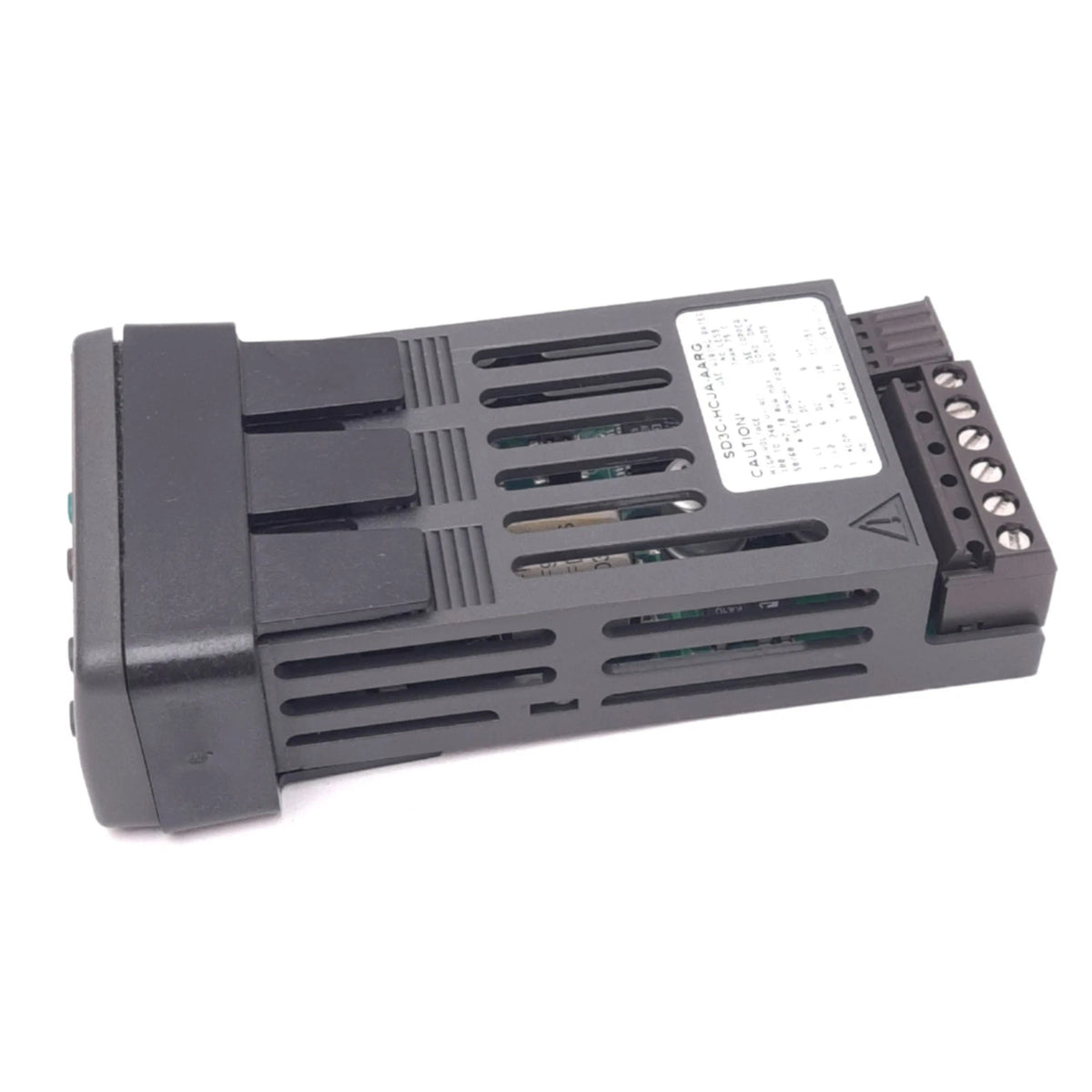

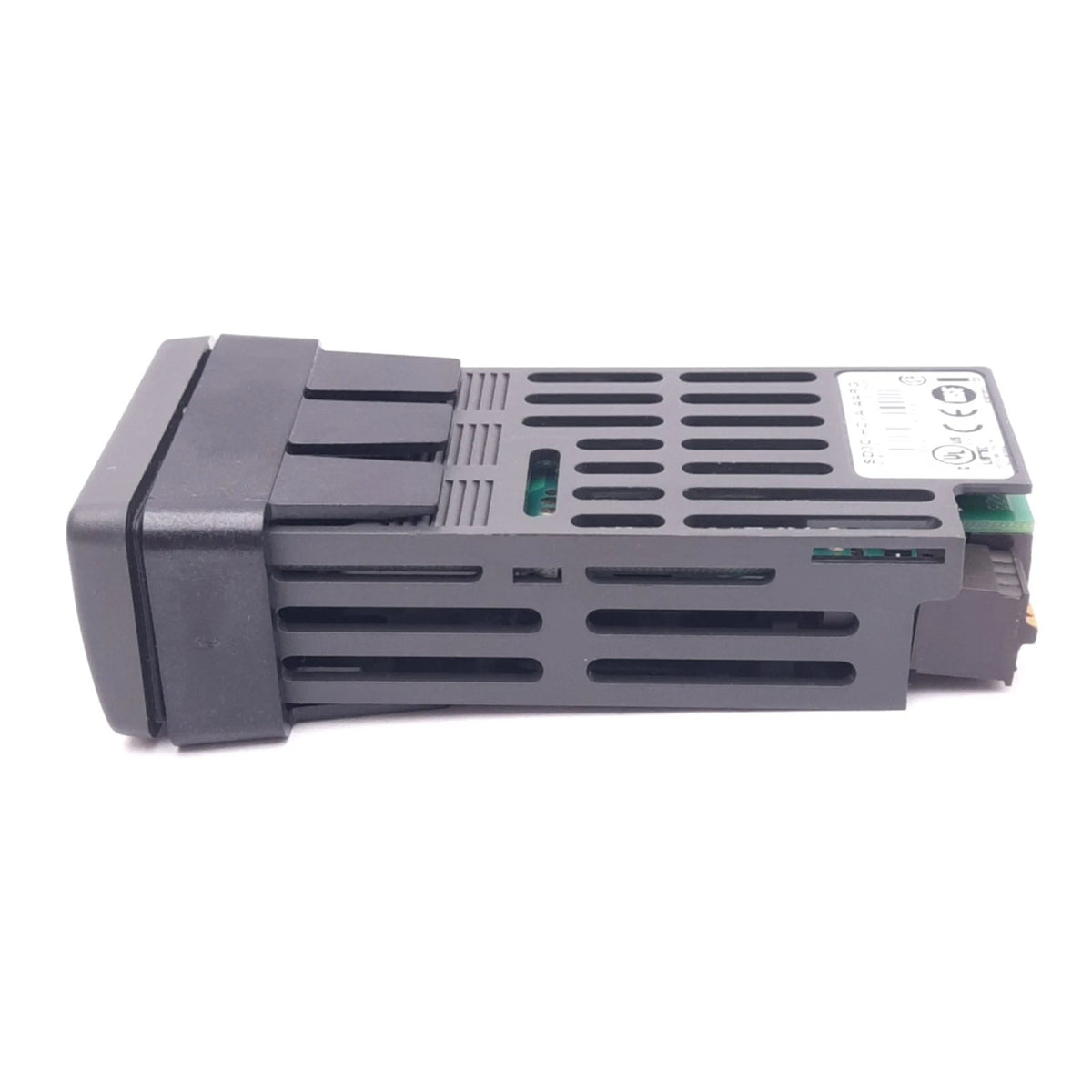

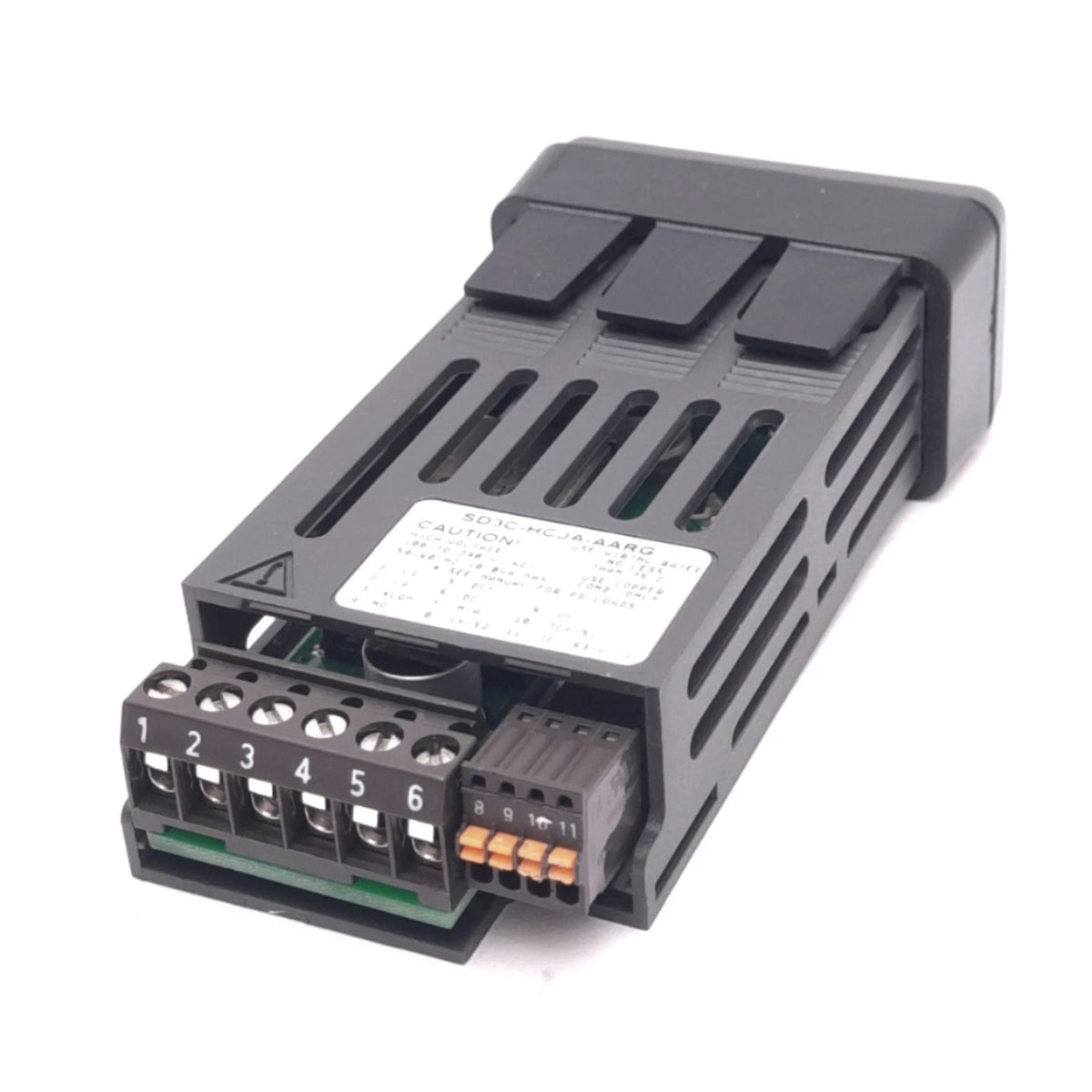

Watlow SD3C-HCJA-AARG Series SD PID Temperature Controller with Switched DC and Mechanical Relay Outputs
- Regular price
- $622.00
- Sale price
- $622.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SD3C-HCJA-AARG
Description
The Watlow SD3C-HCJA-AARG is a single-loop PID temperature controller for regulating industrial heating and cooling equipment. It combines a universal measurement input, switched DC primary output, and mechanical relay secondary output in a compact 1/32 DIN panel-mounted enclosure.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Watlow |
| Category | Controls & Indicators |
| Part Number | SD3C-HCJA-AARG |
| Subcategory | Temperature/Process Control |
| Alternate Part Number | SD3CHCJAAARG |
| Series | SD |
| Product Type | Single-loop PID temperature/process controller |
| Mounting Format | 1/32 DIN panel mount |
| Input Configuration | One universal input |
| Input Compatibility | Supported thermocouple, RTD, voltage, and current signals |
| Control Modes | PID and on/off; selectable heating or cooling action |
| Supply Voltage | 100–240 VAC |
| Output 1 | Switched DC |
| Output 2 | Mechanical relay, Form A, normally open, 2 A resistive |
| Relay Switching Limits | 240 VAC maximum or 30 VDC maximum |
| Output 3 | None |
| Communications | No Modbus or infrared communication option installed |
| Display / Lifecycle | Red/green displays with Watlow and SD logos / discontinued by manufacturer |
| Weight | 0.20 lbs |
Information About SD3C-HCJA-AARG

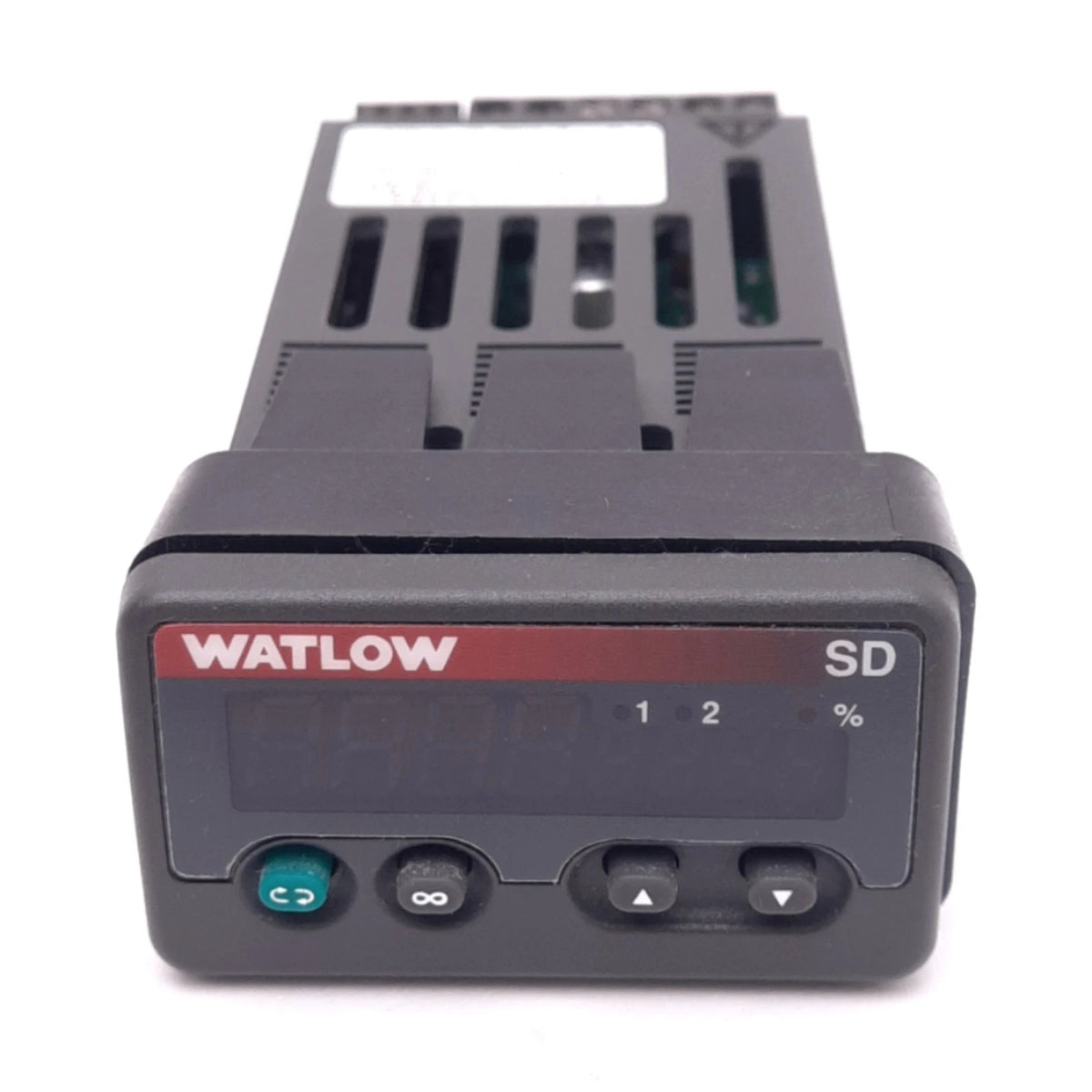

The SD3C-HCJA-AARG is a Series SD controller with dual red/green displays and a standard overlay carrying the Watlow and SD logos. Its configurable input accommodates supported thermocouples, RTDs, and analog process signals for integration with different measurement devices. The primary output supplies a DC switching signal for compatible external switching hardware, while the secondary output provides a normally open mechanical relay contact. This configuration operates from 100–240 VAC and excludes the optional Modbus and infrared communication interfaces.
Key Features:
- PID Regulation: Controls a measured process variable against the selected setpoint.
- Selectable Control Action: Supports heating or cooling with PID and on/off operating modes.
- Universal Input: Accepts compatible temperature sensors and analog process signals.
- Switched DC Output: Provides Output 1 for commanding a compatible external power-switching device.
- Mechanical Relay Output: Includes a 2 A Form A normally open relay at Output 2.
- Dual-Color Displays: Uses red and green readouts for process values, setpoints, and operating parameters.
- Compact Panel Mounting: Fits a 1/32 DIN opening for installations with limited panel space.
- Local Configuration: Provides front-panel access to settings without requiring a network connection.
The SD3C-HCJA-AARG delivers the reliability and precision required for single-loop temperature regulation in industrial machinery and thermal processing equipment.
