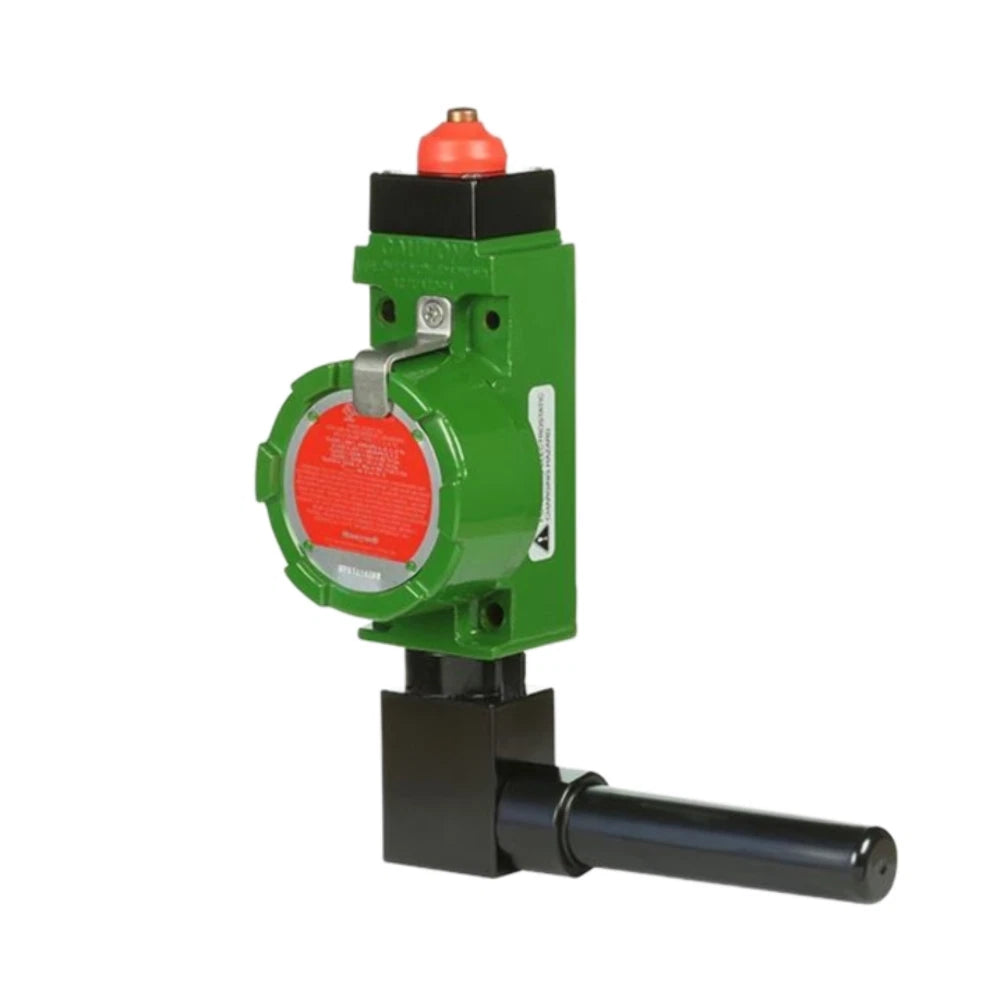

WBX1A14ABC | Honeywell Wireless Pin Plunger Limit Switch IP67
- Regular price
- $854.05
- Sale price
- $854.05
- Regular price
-
Couldn't load pickup availability
Product Description P/N: WBX1A14ABC
Description
The Honeywell WBX1A14ABC is a wireless limit switch from the Limitless™ WBX Series designed for industrial position sensing applications. It features a round pin plunger actuator and SPDT contact configuration with momentary switching action. The unit is rated IP67 for dust-tight and waterproof protection and operates within a temperature range of -40°C to 70°C.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Sensors & Switches |
| Part Number | WBX1A14ABC |
| Subcategory | Limit Switch |
| Series | WBX (Limitless™) |
| Circuit | SPDT |
| Switch Function | On-Momentary |
| Actuator Type | Round Pin Plunger |
| Operating Force | 20.02 N (2041 gf) |
| Operating Position | 57.94 mm (2.281") |
| Pretravel | 1.78 mm (0.070") |
| Differential Travel | 0.5 mm (0.020") |
| Overtravel | 4.8 mm (0.190") |
| Ingress Protection | IP67 |
| Operating Temperature | -40°C to 70°C |
| Mounting Type | Chassis Mount |
| Termination Style | Wireless |
| RoHS Compliant | Yes |
| Weight | 3.00 lbs |
Information About WBX1A14ABC
The WBX1A14ABC belongs to Honeywell’s Limitless™ WBX Series, combining heavy-duty mechanical limit switch design with wireless communication capability. It is designed for chassis mounting and utilizes a round pin plunger actuator for mechanical actuation. The device operates with an actuation force of approximately 20.02 N (2041 gf) and provides SPDT momentary switching functionality. Engineered for industrial environments, it offers IP67 ingress protection and supports operation in a wide temperature range for reliable outdoor or harsh-duty installations.
Key Features:
-
Wireless Limit Switch Design: Supports remote position sensing without hardwired connections.
-
SPDT Circuit Configuration: Single pole double throw contact arrangement.
-
Pin Plunger Actuator: Round plunger for mechanical actuation.
-
20.02 N Operating Force: Defined actuation force for consistent switching.
-
IP67 Protection Rating: Dust-tight and waterproof enclosure.
-
Wide Operating Temperature Range: Functions from -40°C to 70°C.
-
Chassis Mount Installation: Designed for fixed industrial mounting.
-
WBX Series Platform: Part of Honeywell Limitless™ wireless switch family.
The WBX1A14ABC delivers the reliability and precision required for wireless position sensing and industrial limit detection applications.
Description
The Honeywell WBX1A14ABC is a wireless limit switch from the Limitless™ WBX Series designed for industrial position sensing applications. It features a round pin plunger actuator and SPDT contact configuration with momentary switching action. The unit is rated IP67 for dust-tight and waterproof protection and operates within a temperature range of -40°C to 70°C.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Sensors & Switches |
| Part Number | WBX1A14ABC |
| Subcategory | Limit Switch |
| Series | WBX (Limitless™) |
| Circuit | SPDT |
| Switch Function | On-Momentary |
| Actuator Type | Round Pin Plunger |
| Operating Force | 20.02 N (2041 gf) |
| Operating Position | 57.94 mm (2.281") |
| Pretravel | 1.78 mm (0.070") |
| Differential Travel | 0.5 mm (0.020") |
| Overtravel | 4.8 mm (0.190") |
| Ingress Protection | IP67 |
| Operating Temperature | -40°C to 70°C |
| Mounting Type | Chassis Mount |
| Termination Style | Wireless |
| RoHS Compliant | Yes |
| Weight | 3.00 lbs |
Information About WBX1A14ABC
The WBX1A14ABC belongs to Honeywell’s Limitless™ WBX Series, combining heavy-duty mechanical limit switch design with wireless communication capability. It is designed for chassis mounting and utilizes a round pin plunger actuator for mechanical actuation. The device operates with an actuation force of approximately 20.02 N (2041 gf) and provides SPDT momentary switching functionality. Engineered for industrial environments, it offers IP67 ingress protection and supports operation in a wide temperature range for reliable outdoor or harsh-duty installations.
Key Features:
-
Wireless Limit Switch Design: Supports remote position sensing without hardwired connections.
-
SPDT Circuit Configuration: Single pole double throw contact arrangement.
-
Pin Plunger Actuator: Round plunger for mechanical actuation.
-
20.02 N Operating Force: Defined actuation force for consistent switching.
-
IP67 Protection Rating: Dust-tight and waterproof enclosure.
-
Wide Operating Temperature Range: Functions from -40°C to 70°C.
-
Chassis Mount Installation: Designed for fixed industrial mounting.
-
WBX Series Platform: Part of Honeywell Limitless™ wireless switch family.
The WBX1A14ABC delivers the reliability and precision required for wireless position sensing and industrial limit detection applications.
