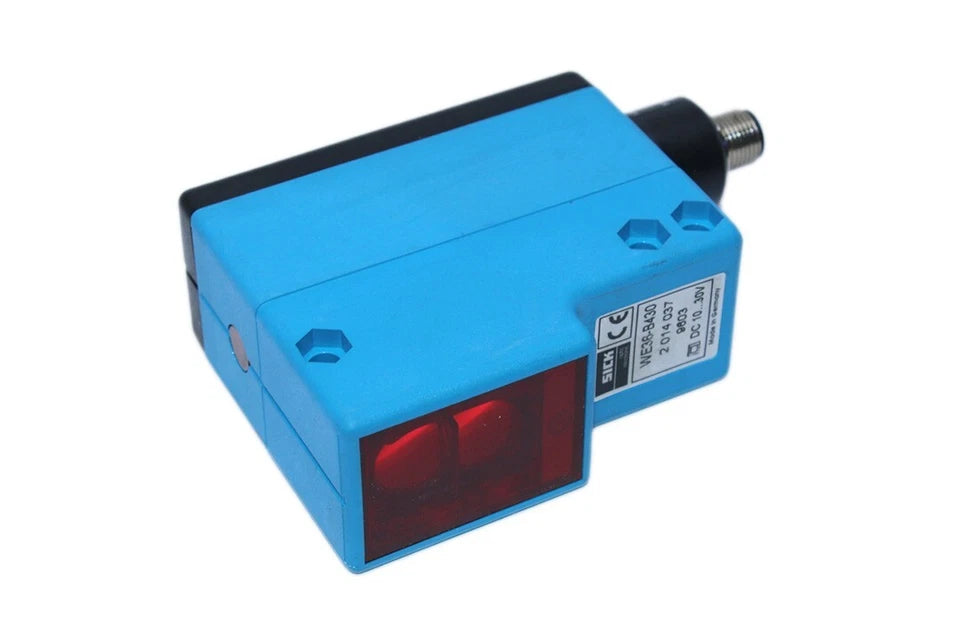

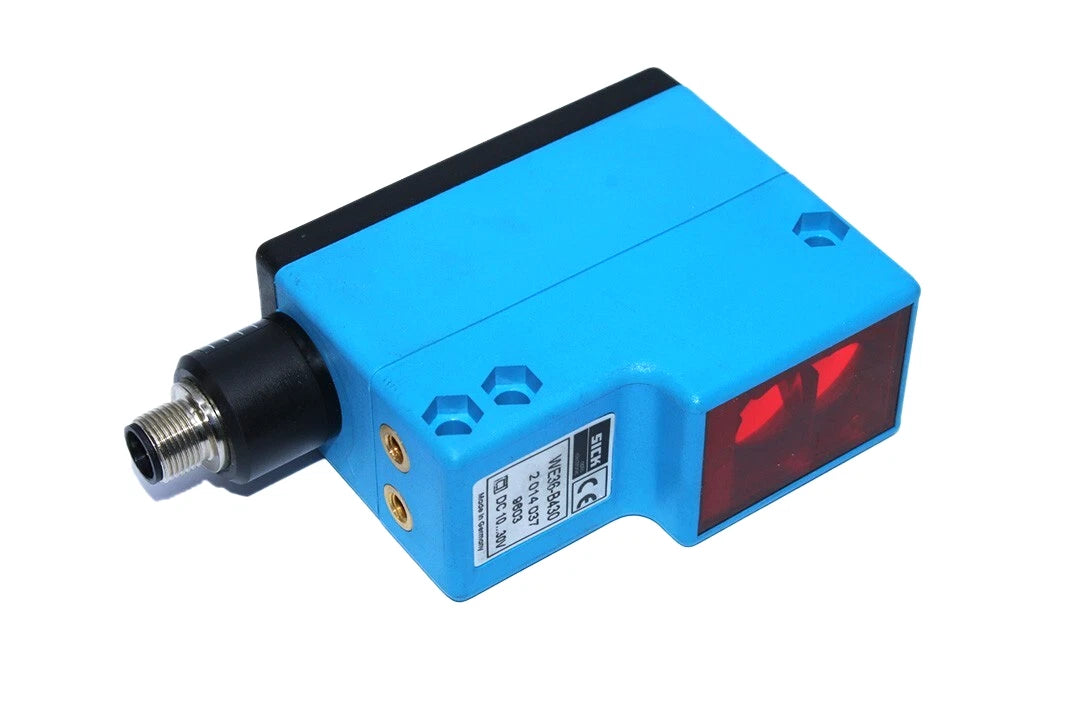

WE36-B430 | SICK Long-Range Photoelectric Receiver Sensor, PNP
- Regular price
- $224.00
- Sale price
- $224.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: WE36-B430
Description
The SICK WE36-B430 is a photoelectric receiver sensor designed for long-range object detection in industrial automation systems. This sensor supports PNP output with light/dark switching and operates as part of a through-beam sensing setup. It is engineered for reliable performance over extended distances when paired with a compatible emitter.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | SICK |
| Category | Industrial Sensors |
| Part Number | WE36-B430 |
| Subcategory | Photoelectric Sensors |
| Sensor Type | Photoelectric Receiver |
| Functional Principle | Through-Beam (Receiver) |
| Sensing Range (Max) | Up to 60 m (with corresponding emitter) |
| Output Type | PNP |
| Switching Mode | Light / Dark Switching |
| Supply Voltage | 10–30 VDC |
| Output Current | 100 mA |
| Response Time | ≤ 500 µs |
| Switching Frequency | 1,000 Hz |

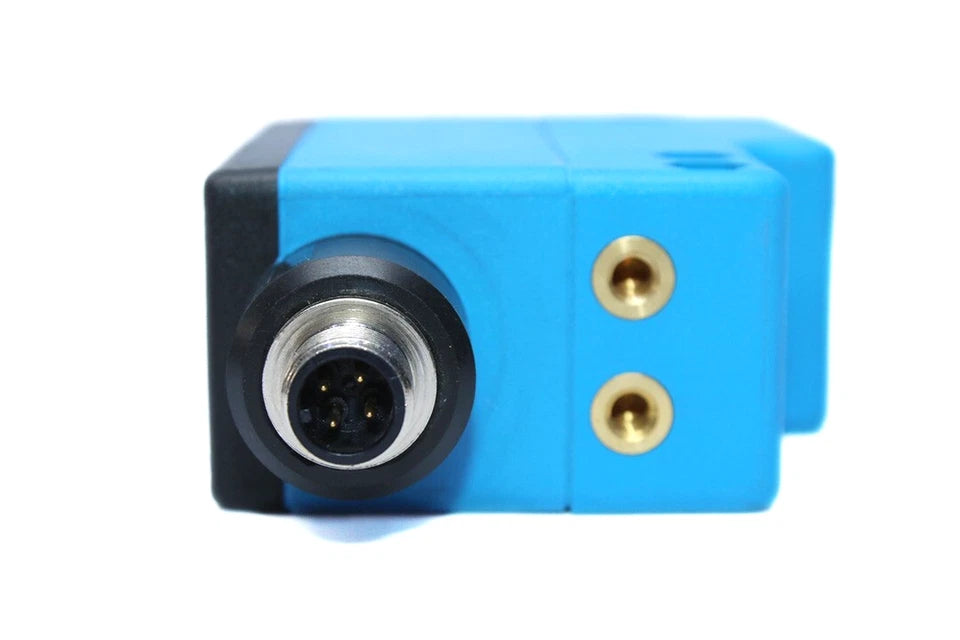

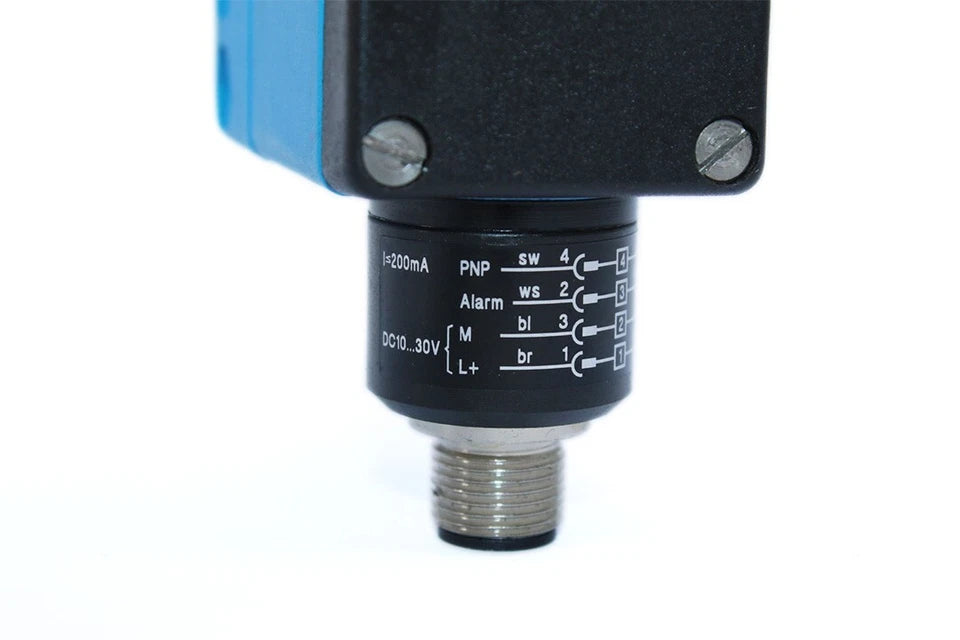

| Connection Type | M12, 4-pin Male Connector |
| Housing Material | ABS Plastic |
| Enclosure Rating | IP67 |
| Operating Temperature | –40 °C to +60 °C |
| Dimensions (W × H × D) | 27 × 92 × 70 mm |
| Weight | 280 g |
Information About WE36-B430
The WE36-B430 is part of SICK’s WE36 photoelectric sensor family, developed for demanding long-distance detection applications. Functioning as a receiver unit, it detects infrared light emitted from a corresponding sender to achieve sensing ranges of up to 60 meters. The sensor supports fast response times and high switching frequencies, making it suitable for high-speed material handling and logistics systems. Its rugged ABS housing and IP67 enclosure rating allow dependable operation in harsh industrial environments.
Key Features:
- Through-Beam Receiver Design: Operates with a compatible emitter for long-range object detection.
- Extended Sensing Distance: Supports detection ranges up to 60 meters in through-beam configurations.
- PNP Switching Output: Compatible with standard PLC and industrial control inputs.
- Light/Dark Switching Modes: Enables flexible output logic configuration.
- High-Speed Performance: Features fast response time and high switching frequency for dynamic applications.
- Rugged Industrial Housing: ABS construction with IP67 rating for harsh environments.
- Standardized Connectivity: Uses a 4-pin M12 male connector for secure installation.
The WE36-B430 delivers the reliability and precision required for long-range photoelectric detection in industrial automation and material handling systems.
