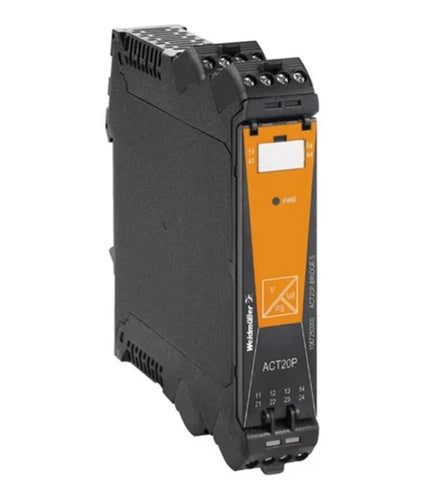

Weidmuller 1067250000 Measuring Bridge Converter 0–11 VDC
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 1067250000
Description
The Weidmuller 1067250000 is a measuring bridge converter designed to convert resistance bridge measurement signals into standardized analog output signals. It supports DIN rail mounting and provides 0–11 VDC or 0–22 mA output for integration with PLCs and industrial measurement systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Weidmuller |
| Category | Controls & Indicators |
| Part Number | 1067250000 |
| Subcategory | Signal Conditioner/Transmitter |
| Product Type | Measuring Bridge Converter |
| Output | 0–11 VDC / 0–22 mA |
| Power Rating | 3 W |
| Mounting | DIN Rail |
| Termination | Screw Connection |
| Impedance | 600 Ohms |
| Accuracy | ±0.05% |
| Response Time | <400 ms |
| Operating Temperature | -40 to +70 °C |
| Storage Temperature | -40 to +85 °C |
| Humidity | 10–90%, non-condensing |
| Dimensions | 22.5 W × 119.2 H × 113.6 D mm |
| Weight | 0.564 lb |
Information About 1067250000
The 1067250000 is a signal conditioner/converter designed for processing signals from resistance measuring bridges. It accepts selectable measurement ranges of ±10, ±20, ±30, and ±50 mVDC and converts them into standard voltage or current signals. The unit is housed in a compact enclosure measuring approximately 22.5 mm wide and is suitable for DIN rail installation in control cabinets. Configuration can be performed using a DIP switch, while the converter operates reliably across a temperature range of -40 to +70 °C.
Key Features:
- Measuring Bridge Input: Designed for resistance measuring bridge signals with selectable ±10, ±20, ±30, and ±50 mVDC measurement ranges.
- Analog Output: Provides standardized 0–11 VDC or 0–22 mA output signals for PLC and control system integration.
- PLC Compatibility: Provides signal conditioning suitable for connecting measurement devices to PLC inputs.
- DIN Rail Mounting: Designed for convenient installation on standard DIN rails within industrial control cabinets.
- Compact Housing: Measures approximately 22.5 mm wide, allowing efficient use of control cabinet space.
- Wide Temperature Range: Supports reliable operation from -40 to +70 °C and storage from -40 to +85 °C.
- Signal Accuracy: Provides a specified accuracy of ±0.05% for precise signal conversion.
- Flexible Configuration: Supports configuration through DIP switches and other available configuration methods.
The 1067250000 delivers reliable signal conditioning and accurate bridge signal conversion required for industrial measurement and PLC applications.
