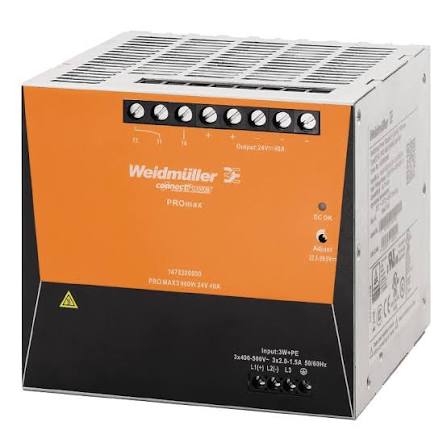

Weidmuller 1478200000 PROmax 24V DC 960W 40A Three-Phase Power Supply
- Regular price
- $712.00
- Sale price
- $712.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 1478200000
Description
The Weidmuller 1478200000 is a PROmax three-phase primary switched-mode power supply designed for demanding industrial control and automation applications. It provides 24 V DC output at 40 A with 960 W rated power and supports a wide 320–575 V AC three-phase input range. The unit combines high boost capability, overload tolerance, and a compact DIN rail design for reliable power delivery in control cabinets.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Weidmuller |
| Category | Power Supplies |
| Part Number | 1478200000 |
| Subcategory | Power Supply |
| Series | PROmax |
| Mounting | DIN Rail |
| Input Voltage DC | 450–800 V DC |
| Input Frequency | 45–65 Hz |
| Output Voltage | 24 V DC |
| Output Current | 40 A |
| Output Power | 960 W |
| Efficiency | 93.5% |
| Protection Degree | IP20 |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Connection | Screw Connection |
| Weight | 3.4 kg |
Information About 1478200000
The 1478200000 belongs to the Weidmuller PROmax series and is designed to maintain stable output power under demanding operating conditions. Its output voltage can be adjusted from 22.5 V to 29.5 V using an integrated potentiometer. The power supply supports both three-phase AC and high-voltage DC input and operates across a temperature range of -25°C to +70°C. It provides 93.5% efficiency and includes protection functions suitable for industrial control cabinet installations.
Key Features:
- 960 W Output Power: Provides 960 W of rated power with a 24 V DC output.
- 40 A Output Current: Delivers up to 40 A of rated output current at 60°C.
- Three-Phase AC Input: Supports a wide 3 x 320–575 V AC input range for industrial power systems.
- Adjustable Output Voltage: Allows the 24 V DC output to be adjusted from 22.5 V to 29.5 V.
- High Efficiency: Achieves up to 93.5% efficiency for reduced power losses during operation.
- Overload Capability: Handles continuous overloads of up to 20% and short-term peak loads up to 300%.
- Wide Temperature Range: Operates from -25°C to +70°C and starts at temperatures down to -40°C.
- DIN Rail Design: Provides a compact enclosure suitable for installation in space-restricted control cabinets.
The 1478200000 delivers the reliability and high-capacity DC power required for demanding industrial control and automation systems.
Description
The Weidmuller 1478200000 is a PROmax three-phase primary switched-mode power supply designed for demanding industrial control and automation applications. It provides 24 V DC output at 40 A with 960 W rated power and supports a wide 320–575 V AC three-phase input range. The unit combines high boost capability, overload tolerance, and a compact DIN rail design for reliable power delivery in control cabinets.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Weidmuller |
| Category | Power Supplies |
| Part Number | 1478200000 |
| Subcategory | Power Supply |
| Series | PROmax |
| Mounting | DIN Rail |
| Input Voltage DC | 450–800 V DC |
| Input Frequency | 45–65 Hz |
| Output Voltage | 24 V DC |
| Output Current | 40 A |
| Output Power | 960 W |
| Efficiency | 93.5% |
| Protection Degree | IP20 |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Connection | Screw Connection |
| Weight | 3.4 kg |
Information About 1478200000
The 1478200000 belongs to the Weidmuller PROmax series and is designed to maintain stable output power under demanding operating conditions. Its output voltage can be adjusted from 22.5 V to 29.5 V using an integrated potentiometer. The power supply supports both three-phase AC and high-voltage DC input and operates across a temperature range of -25°C to +70°C. It provides 93.5% efficiency and includes protection functions suitable for industrial control cabinet installations.
Key Features:
- 960 W Output Power: Provides 960 W of rated power with a 24 V DC output.
- 40 A Output Current: Delivers up to 40 A of rated output current at 60°C.
- Three-Phase AC Input: Supports a wide 3 x 320–575 V AC input range for industrial power systems.
- Adjustable Output Voltage: Allows the 24 V DC output to be adjusted from 22.5 V to 29.5 V.
- High Efficiency: Achieves up to 93.5% efficiency for reduced power losses during operation.
- Overload Capability: Handles continuous overloads of up to 20% and short-term peak loads up to 300%.
- Wide Temperature Range: Operates from -25°C to +70°C and starts at temperatures down to -40°C.
- DIN Rail Design: Provides a compact enclosure suitable for installation in space-restricted control cabinets.
The 1478200000 delivers the reliability and high-capacity DC power required for demanding industrial control and automation systems.
