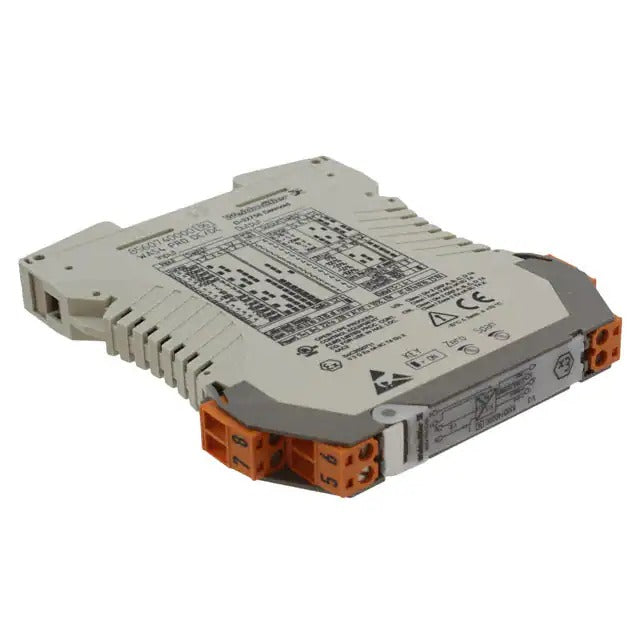

Weidmuller 8560740000 WAS4 PRO DC/DC Analog Signal Isolator
- Regular price
- $449.00
- Sale price
- $449.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 8560740000
Description
The Weidmuller 8560740000 is a WAS4 PRO DC/DC analog signal isolator designed for transmitting and isolating analog current and voltage signals. It supports a wide 20–253 V AC/DC power supply range, provides 4 kV electrical isolation, and mounts on a DIN rail for use in industrial control and automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Weidmuller |
| Category | Controls & Indicators |
| Part Number | 8560740000 |
| Subcategory | Signal Conditioner/Transmitter |
| Mounting | DIN Rail |
| Input Signal | Current, Voltage |
| Output Accuracy | ±0.1% |
| Electrical Isolation | 4 kV |
| Supply Voltage | 20–253 V AC/DC |
| Nominal Supply Voltage | 230 V AC |
| Power Consumption | 1 W |
| Frequency | 48–62 Hz |
| Width | 12.5 mm |
| Weight | 0.35 lb |
Information About 8560740000
The 8560740000 is a 12.5 mm wide signal isolating converter with configurable input and output parameters. It supports analog DC current signals from ±0.1 to ±100 mA and voltage signals from ±20 mV to ±200 V. DIP switches and potentiometers provide configuration of up to 440 fixed input and output parameter combinations, including span and offset adjustment. The input, output, and power supply circuits are completely isolated, while the adjustable transmission frequency and low power dissipation support flexible industrial applications.
Key Features:
- Analog Signal Isolation: Transmits and electrically isolates analog DC current and voltage signals.
- Wide Signal Range: Supports current signals from ±0.1 to ±100 mA and voltage signals from ±20 mV to ±200 V.
- Electrical Isolation: Provides 4 kV isolation between the input, output, and power supply circuits.
- Flexible Power Supply: Supports a wide 20–253 V AC/DC supply range for varied installation requirements.
- Configurable Parameters: Allows up to 440 fixed input and output parameter combinations using DIP switches and potentiometers.
- DIN Rail Mounting: Designed for installation on standard DIN rails in control cabinets.
- Single-Channel Design: Provides one isolated input and one output channel.
- Adjustable Transmission Frequency: Supports configurable transmission frequencies from 10 Hz to 10 kHz.
The 8560740000 delivers the reliability and signal isolation required for accurate analog signal transmission in industrial control and automation systems.
