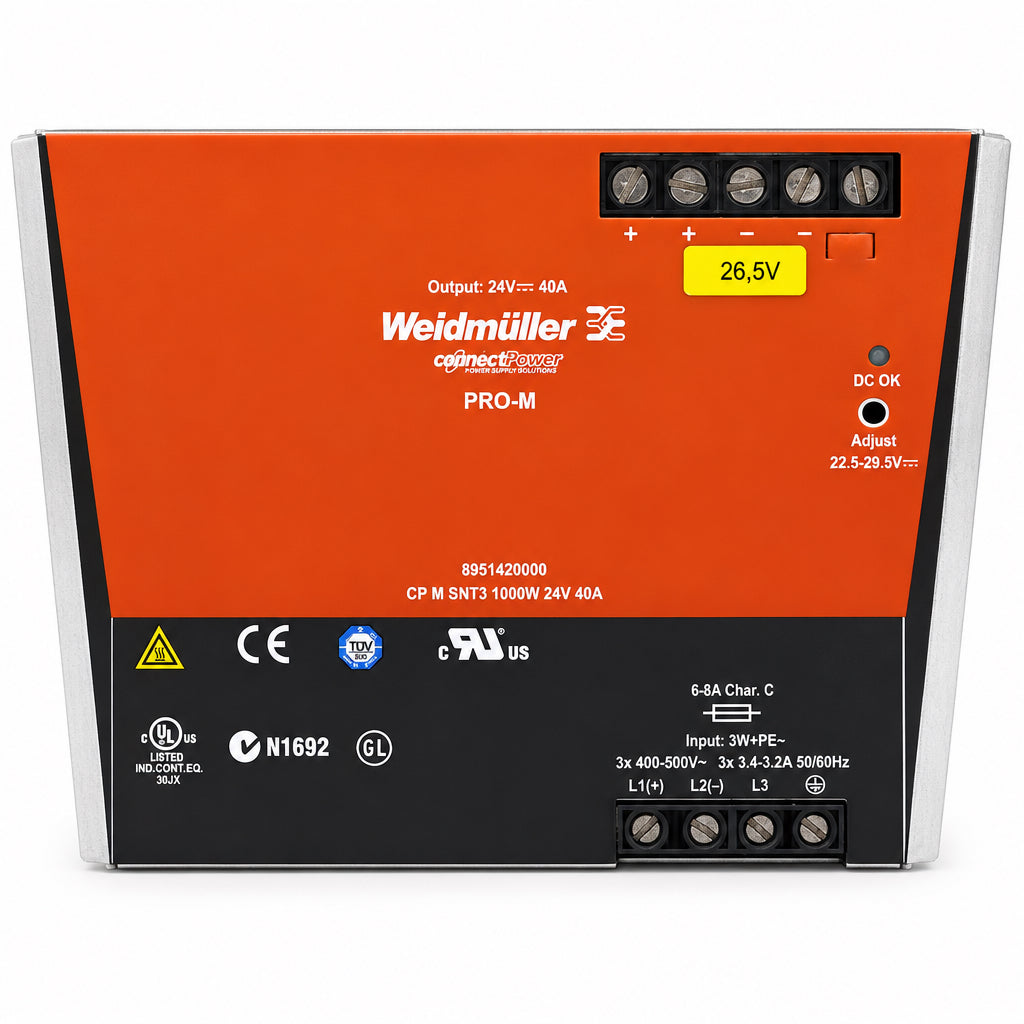

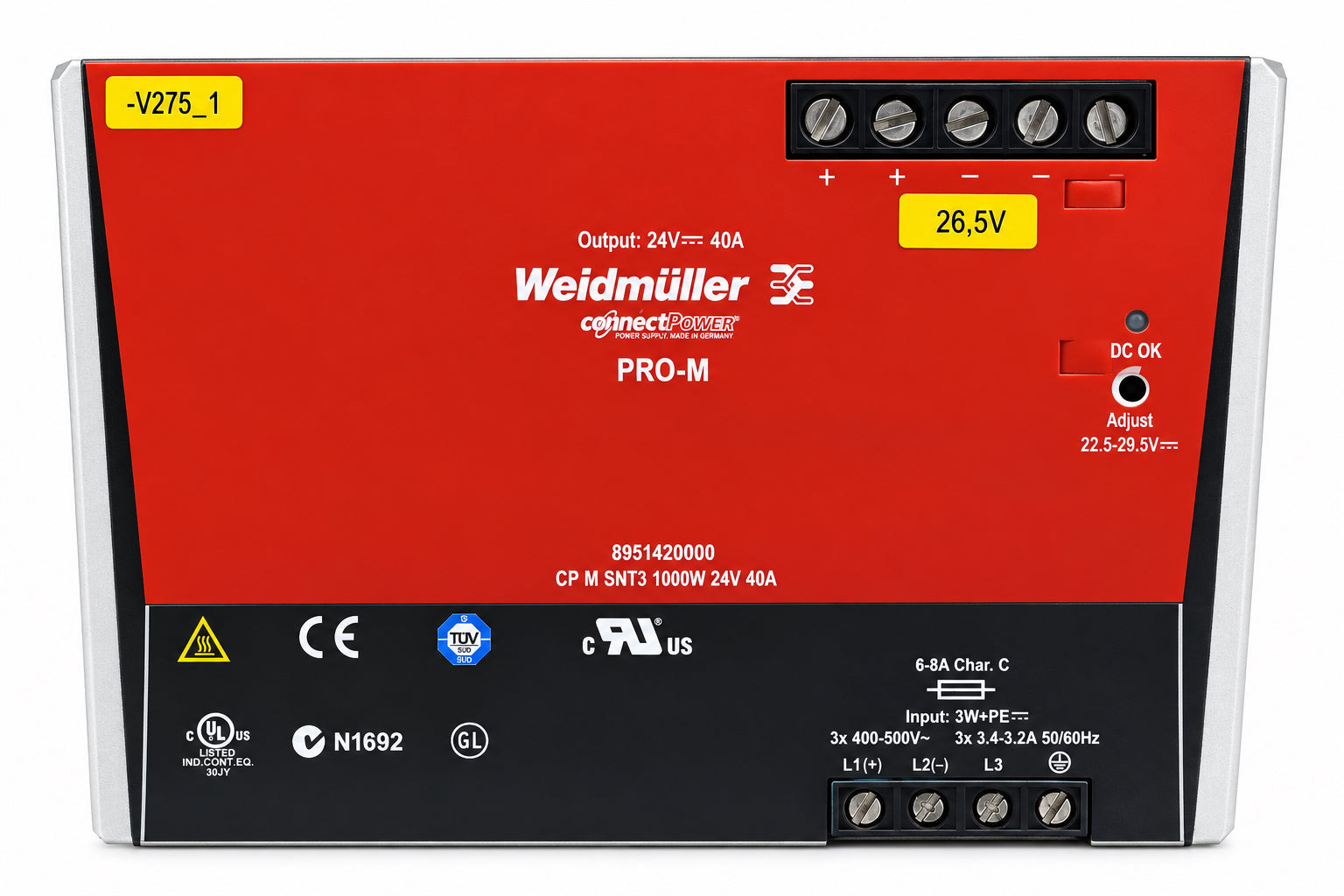

Weidmuller 8951420000 PRO-M Power Supply 24V 40A 1000W 3-Phase 400-500V AC
- Regular price
- $1,099.00
- Sale price
- $1,099.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 8951420000
Description
The Weidmuller 8951420000 is a high-power three-phase DIN rail power supply engineered to convert 3x 400–500V AC inputs into a regulated 24V DC output. Delivering up to 1000W of total output power at 40A, this PRO-M unit ensures continuous voltage stability for high-demand industrial automation networks. Its heavy-duty aluminum enclosure provides optimal thermal dissipation for reliable operation in complex control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Weidmuller |
| Category | Power Supply |
| Part Number | 8951420000 |
| Subcategory | Power Supplies |
| Series | PRO-M Series (CP M SNT3) |
| Input Type | 3-Phase (3W+PE) |
| Input Voltage | 3x 400–500 VAC (3.4–3.2A, 50/60Hz) |
| Output Voltage | 24 VDC (Adjustable 22.5 to 29.5 VDC) |
| Output Current | 40 A |
| Output Power | 1000 W |
| Status Indicator | Front DC OK LED |
| Enclosure Material | Finned Aluminum Enclosure |
| Cooling | Convection / Forced Air |
| Mounting Type | DIN Rail |
| Weight | 3.79 kg |
Information About 8951420000
The 8951420000 is part of Weidmuller's PRO-M series, built to deliver compact efficiency and high performance in 3-phase power environments. Operating on a 3x 400–500V AC supply with a 3W+PE configuration, this power supply includes an onboard trim potentiometer to adjust the 24V DC output voltage from 22.5V to 29.5V. The unit features an integrated front-facing DC OK indicator for real-time status monitoring and diagnostic inspection. Housed in a finned aluminum chassis, it is engineered for efficient convection and forced-air cooling within dense electrical control cabinets.
Key Features:
- High Power Output: Delivers 1000W total capacity with a continuous 40A current rating at 24V DC.
- Three-Phase AC Input: Accepts wide 3x 400–500V AC input range (3.4–3.2A, 50/60Hz) in a 3W+PE setup.
- Adjustable Output Voltage: Onboard trim potentiometer allows precise output adjustment between 22.5V and 29.5V DC.
- Visual Status Indication: Front-panel DC OK LED provides immediate visual verification of power status.
- Finned Aluminum Enclosure: Heavy-duty metal construction provides superior heat dissipation via natural or forced air.
- Standard DIN Rail Mounting: Snaps securely onto standard DIN tracks to optimize cabinet space utilization.
The 8951420000 delivers the reliability and precision required for heavy-duty industrial automation and control cabinet power distribution.
