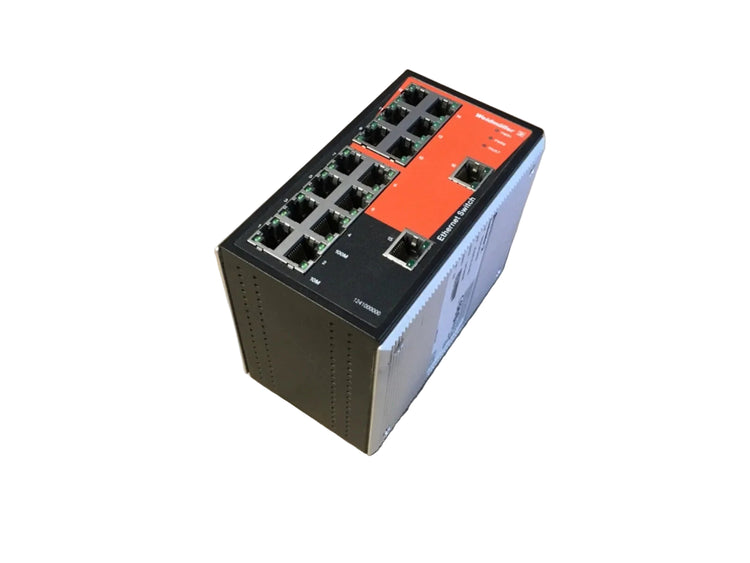

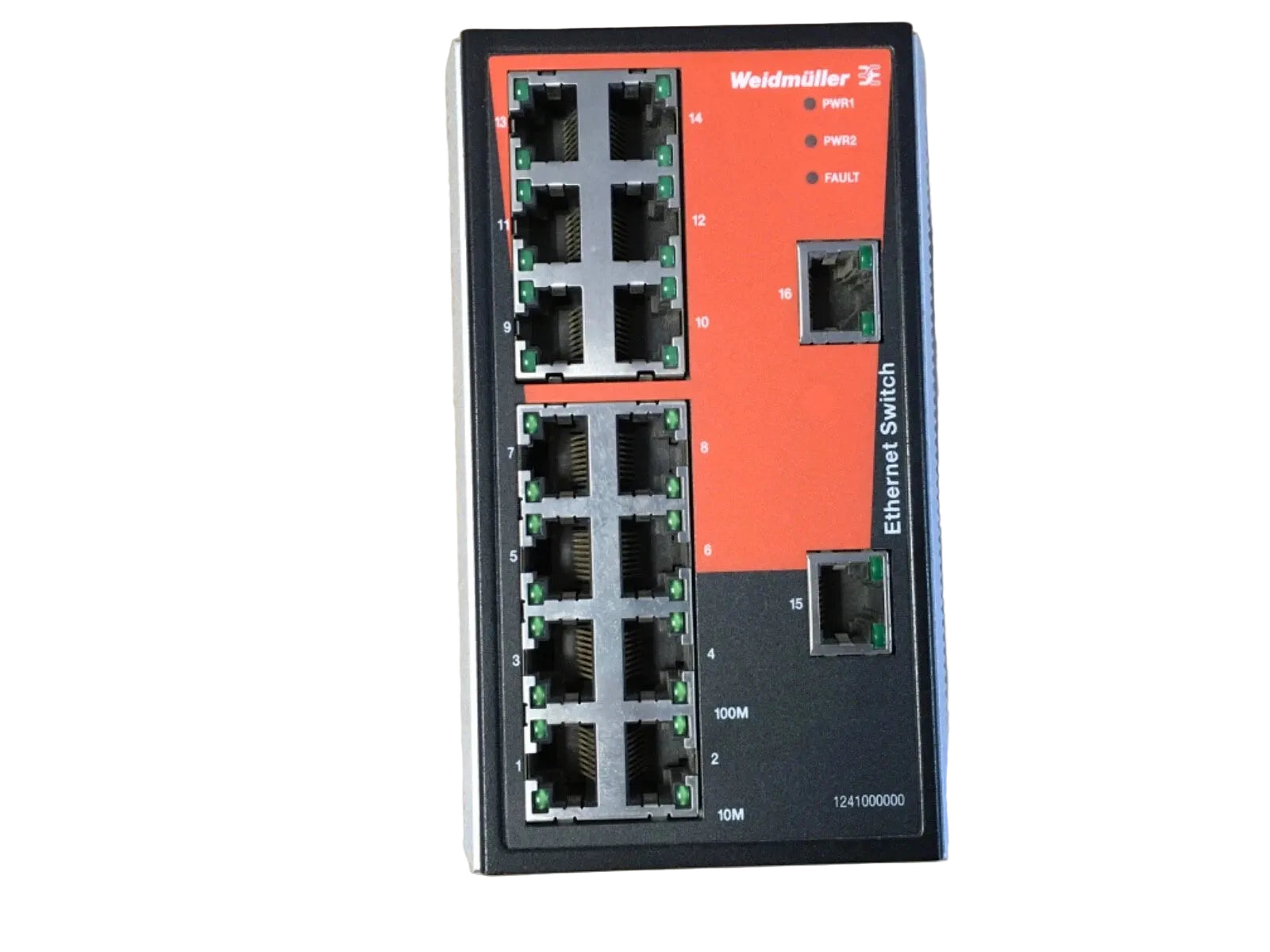

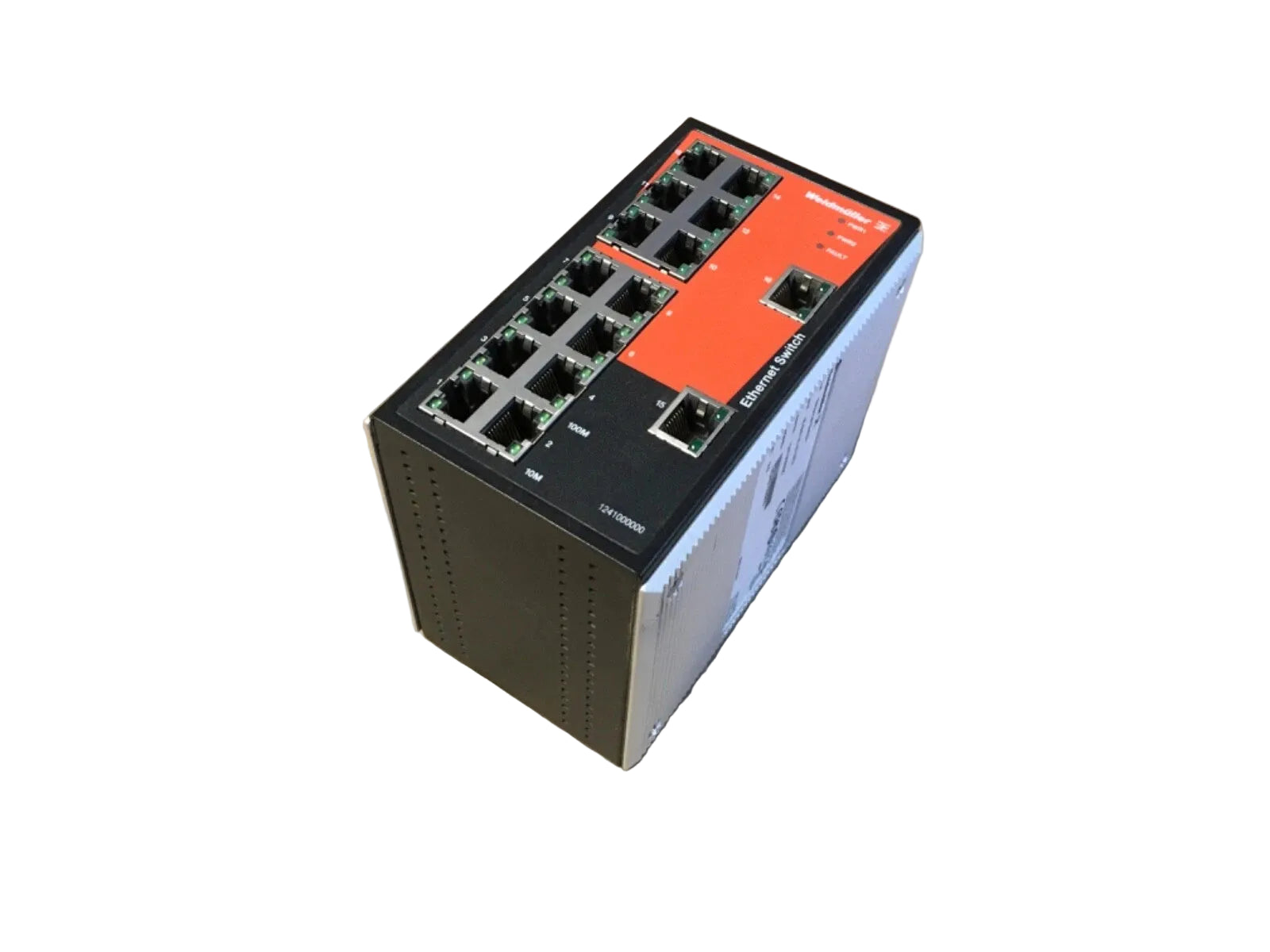

Weidmuller IE-SW-VL16-16TX 16-Port Unmanaged Fast Ethernet Switch
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: IE-SW-VL16-16TX
Description
The Weidmuller IE-SW-VL16-16TX is an unmanaged Fast Ethernet switch designed for industrial Ethernet communication between networked devices. It provides 16 RJ45 ports with 10/100BaseT(X) connectivity, redundant DC power inputs, and DIN rail or panel mounting for industrial control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Weidmuller |
| Category | Computer |
| Part Number | IE-SW-VL16-16TX |
| Subcategory | Networking Router |
| Product Type | Ethernet Switch |
| Switch Type | Unmanaged |
| Ethernet Ports | 16 × RJ45 |
| Ethernet Standard | 10/100BaseT(X) |
| Duplex Mode | Full/Half Duplex |
| MDI/MDI-X | Auto MDI/MDI-X |
| Supply Voltage | 9.6–60 VDC |
| Protection | IP30 |
| Mounting | DIN Rail / Panel |
| Operating Temperature | 0 to +60 °C |
| Storage Temperature | -40 to +85 °C |
| Dimensions | 80.5 W × 135 H × 105 D mm |
| Weight | 3.00 lb |
Information About IE-SW-VL16-16TX
The IE-SW-VL16-16TX is an industrial network switch designed for reliable Ethernet communication in automation systems. Its 16 RJ45 ports support auto-negotiation, full- and half-duplex operation, and auto MDI/MDI-X functionality. The switch accepts a wide 9.6–60 VDC supply range and supports redundant 12/24/48 VDC power inputs for improved system availability. Port monitoring, broadcast storm protection, diagnostic LEDs, and industrial certifications support installation in demanding automation and control environments.
Key Features:
- 16 Ethernet Ports: Provides 16 RJ45 ports supporting 10/100BaseT(X) Fast Ethernet communication.
- Unmanaged Operation: Enables straightforward Ethernet networking without requiring managed switch configuration.
- Wide DC Supply Range: Supports a 9.6–60 VDC supply range for flexible industrial power integration.
- Redundant Power Inputs: Supports 12/24/48 VDC power inputs to help maintain network operation in industrial systems.
- Auto-Negotiation: Supports automatic speed and duplex negotiation with connected Ethernet devices.
- Diagnostic Indicators: Includes PWR1, PWR2, FAULT, and 10/100M status LEDs for convenient network and power monitoring.
- Industrial Mounting: Supports DIN rail and panel mounting for installation in control cabinets and automation equipment.
- Industrial Certifications: Complies with CE, FCC, cULus, ATEX Zone 2, DNV-GL, and UL508 requirements.
The IE-SW-VL16-16TX delivers dependable industrial Ethernet connectivity required for automation, control, and communication networks.
