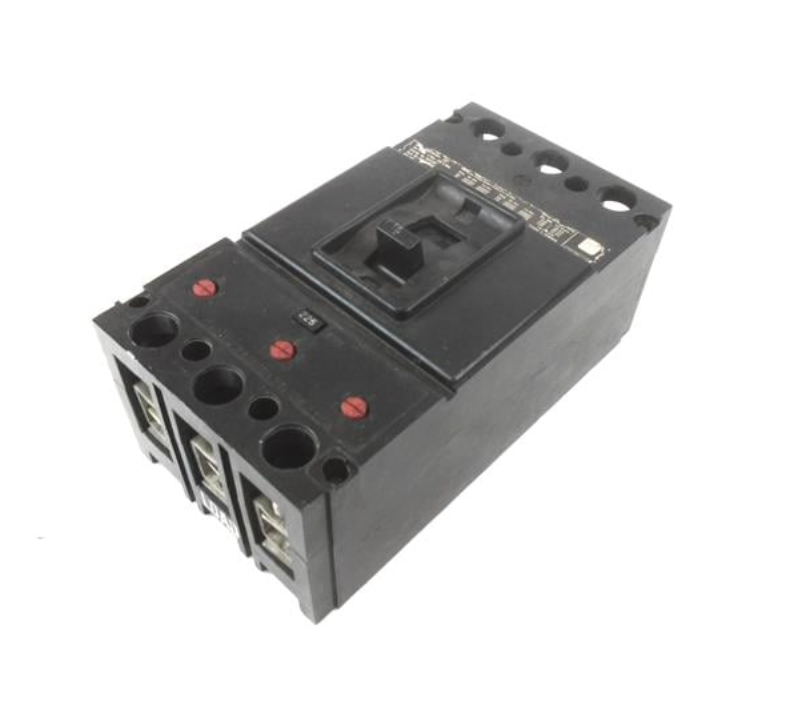

Westinghouse KA3225F Molded Case Circuit Breaker 225 Ampere 3 Pole 600 Volt Thermal Magnetic Bolt-On
- Regular price
- $466.00
- Sale price
- $466.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: KA3225F
Description
The Westinghouse KA3225F is a molded case circuit breaker designed to provide reliable overcurrent protection in industrial and commercial power systems. Rated at 225 ampere and 600 volts alternating current, it features thermal magnetic trip functionality for accurate fault response. This unit is used in three-phase distribution systems requiring dependable interruption performance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Westinghouse |
| Category | Circuit Breaker |
| Part Number | KA3225F |
| Subcategory | Molded Case Circuit Breaker |
| Series | KA Series |
| Rated Current | 225 Ampere |
| Voltage Rating | 600 V |
| Poles | 3 |
| Phase | 3 Phase |
| Interrupting Capacity | 22 kiloampere at 480 volts |
| Trip Type | Thermal Magnetic |
| Mounting Type | Bolt-On |
| Construction Type | Molded Case |
| Manufacturer Status | Discontinued by Manufacturer |
| Weight | 13.00 lbs |
Information About KA3225F
The KA3225F is a Westinghouse KA series molded case circuit breaker engineered for low-voltage power distribution applications. It utilizes a thermal magnetic trip mechanism to protect against both overload and short circuit conditions, ensuring stable circuit operation. Designed with a three-pole configuration, it supports three-phase electrical systems and is commonly installed in panelboards and switchgear assemblies. With a standard interrupting capacity of 22 kiloampere at 480 volts and bolt-on mounting, it provides reliable protection in demanding environments, even though it has been discontinued by the manufacturer.
Key Features:
- 225 Ampere Rating: Supports medium-capacity electrical loads in industrial systems.
- Three-Pole Design: Configured for three-phase power distribution applications.
- Thermal Magnetic Trip: Combines overload and instantaneous short circuit protection.
- 600 Volt Capacity: Suitable for higher voltage alternating current systems.
- 22 kiloampere Interrupting Rating: Provides standard fault interruption at 480 volts.
- Bolt-On Mounting: Ensures secure installation in panelboards and switchgear.
- KA Series Design: Compatible with Westinghouse KA series electrical systems.
- Discontinued Model Availability: Used for maintenance and replacement in legacy installations.
The KA3225F delivers the reliability and precision required for overcurrent protection in industrial and commercial electrical distribution systems.
