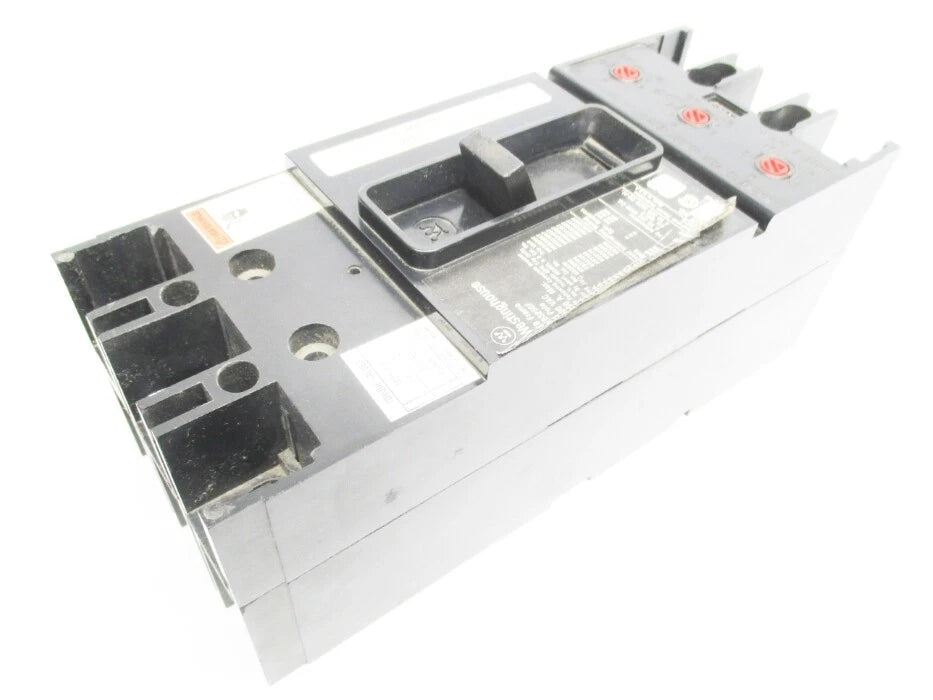

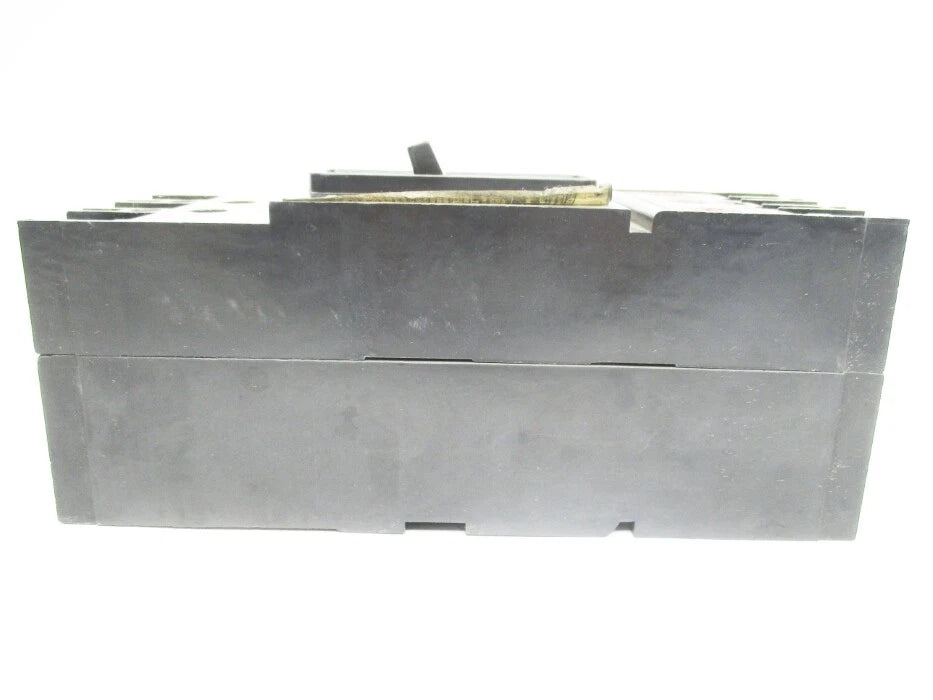

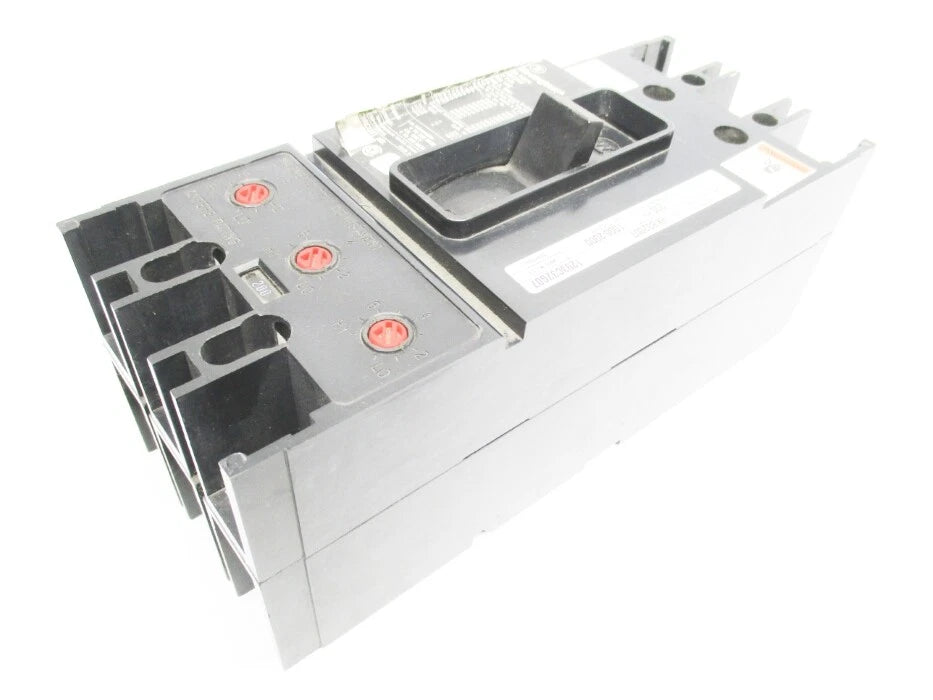

Westinghouse KB3200 200A 3-Pole 600V Molded Case Circuit Breaker
- Regular price
- $1,999.00
- Sale price
- $1,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: KB3200
Description
The Westinghouse KB3200 is a 200 Amp, 3-pole molded case circuit breaker designed for industrial and commercial electrical systems. It provides reliable protection for circuits operating at 240–600 VAC or 250 VDC. This breaker fits Westinghouse CDP panelboards, Eaton Series C panelboards, switchboards, and motor control centers.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Westinghouse |
| Category | Circuit Breaker |
| Part Number | KB3200 |
| Subcategory | Circuit Breaker |
| Series | KB Series |
| Poles | 3 |
| Current Rating | 200 Amp |
| Voltage Rating | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | Three-Phase |
| Trip Type | Thermal-Magnetic |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Mounting Type | Bolt-On |
| Terminal Type | Lugs |
| Interrupting Rating | 25kA @ 240VAC, 22kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Wire Range | 3 AWG – 350 kcmil (Al/Cu) |
| Optional Features | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
| Standards | NEMA AB-1, UL 489, CSA C22.2 No. 5 |
| Approvals | UL, CSA, HACR |
| Operating Temperature | 40°C |
| Construction Features | HACR Rated, Interchangeable Trip, Panel Mount |
| Weight | 12 lbs |
Information About KB3200
The KB3200 is part of Westinghouse’s KB series of molded case breakers, engineered for high-current protection. It features bolt-on mounting with lug terminals for secure installation. The breaker employs a thermal-magnetic trip mechanism with long-time and instantaneous functionality. Optional features include shunt trip, auxiliary switch, undervoltage release, and alarm switch to meet diverse application requirements.
Key Features:
- Series: KB Series molded case breaker for industrial applications.
- Poles: 3-pole configuration for three-phase electrical systems.
- Current Rating: 200 Amp continuous load capacity.
- Voltage Rating: 240VAC, 480VAC, 600VAC, 250VDC compatible.
- Mounting Style: Bolt-on for panel installation.
- Trip Mechanism: Thermal-magnetic for overload and short-circuit protection.
- Trip Function: Long-time and instantaneous (LI) with adjustable magnetic.
- Compatibility: Fits Westinghouse CDP panels, Eaton Series C panels, switchboards, and MCCs.
- Construction: HACR-rated molded case with interchangeable trip and panel mount design.
The KB3200 delivers the reliability and precision required for high-current industrial circuit protection.
